Pcm Removal/Installation

NOTE:
  • To replace the PCM, connect the WDS and perform the PCM configuration. (See PCM REPLACEMENT .)
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
Fig 1: PCM Removal Sequence
G01026729Courtesy of MAZDA MOTORS CORP.

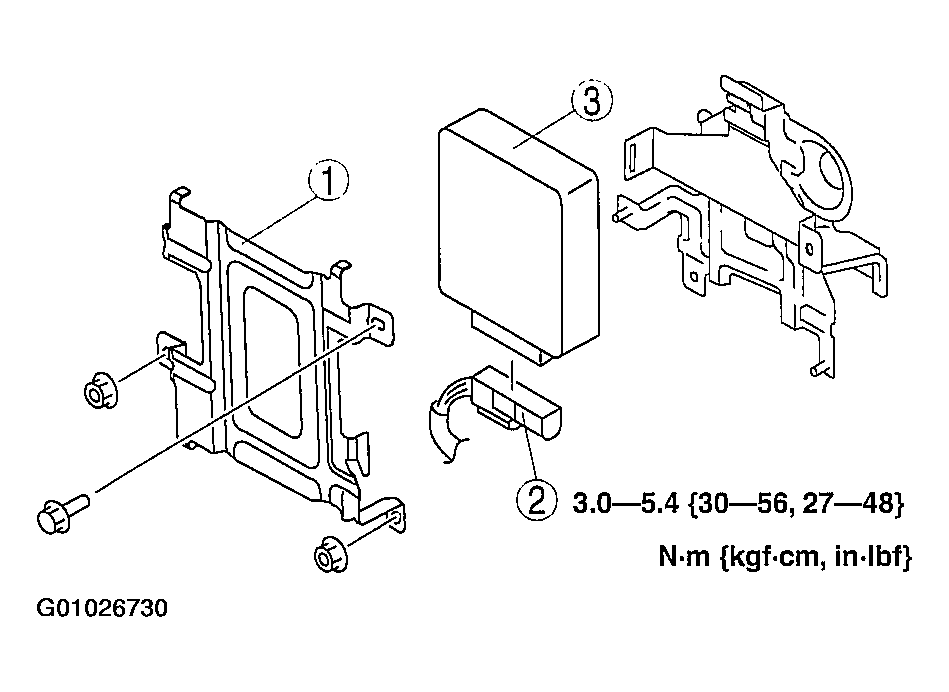

Fig 2: Removing/Installing PCM
G01026730Courtesy of MAZDA MOTORS CORP.
