Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following harnesses for open or short circuit. (Continuity check)

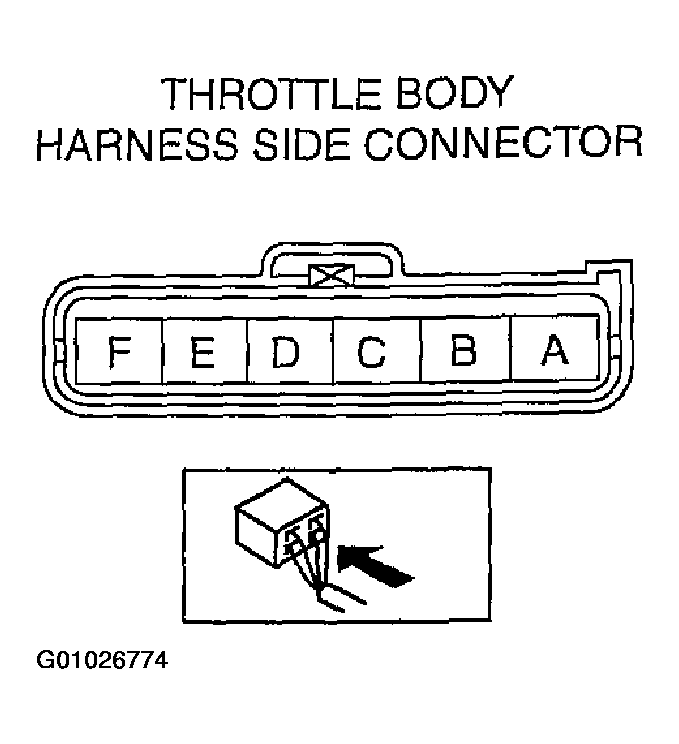

Fig 1: Throttle Body Harness Side Connector View & Terminal Identification
G01026774Courtesy of MAZDA MOTORS CORP.
