Total Toe-in Adjustment

Loosen the locknut of the lateral link.

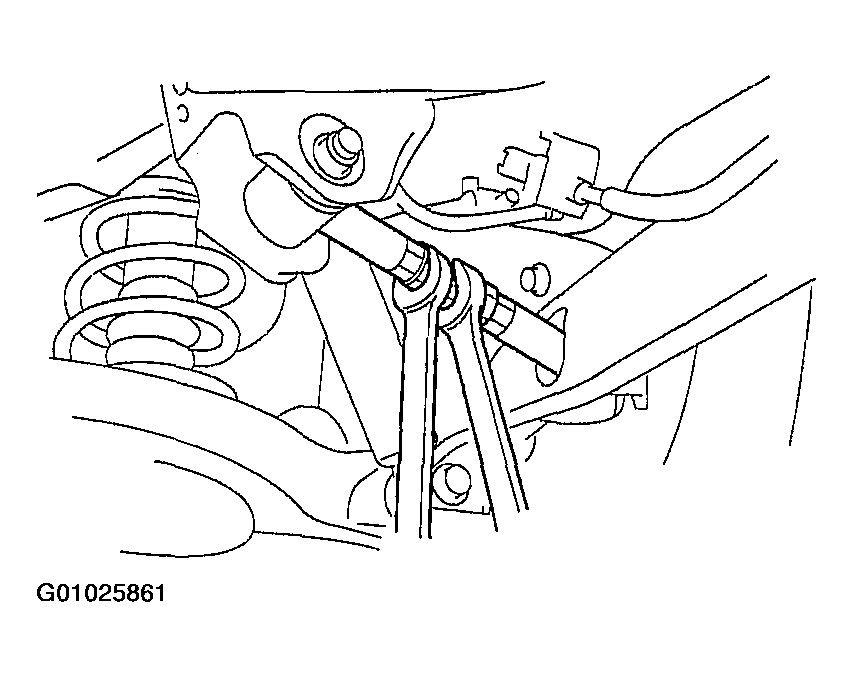

Fig 1: Loosening Locknut Of Lateral Link
Courtesy of MAZDA MOTORS CORP.
Adjust the toe-in turning the adjusting link.
Specification

Total Toe-in: 2+/-4 mm {0.08+/-0.16 in}
NOTE:
- Toe change amount: 0°43'/ one rotation

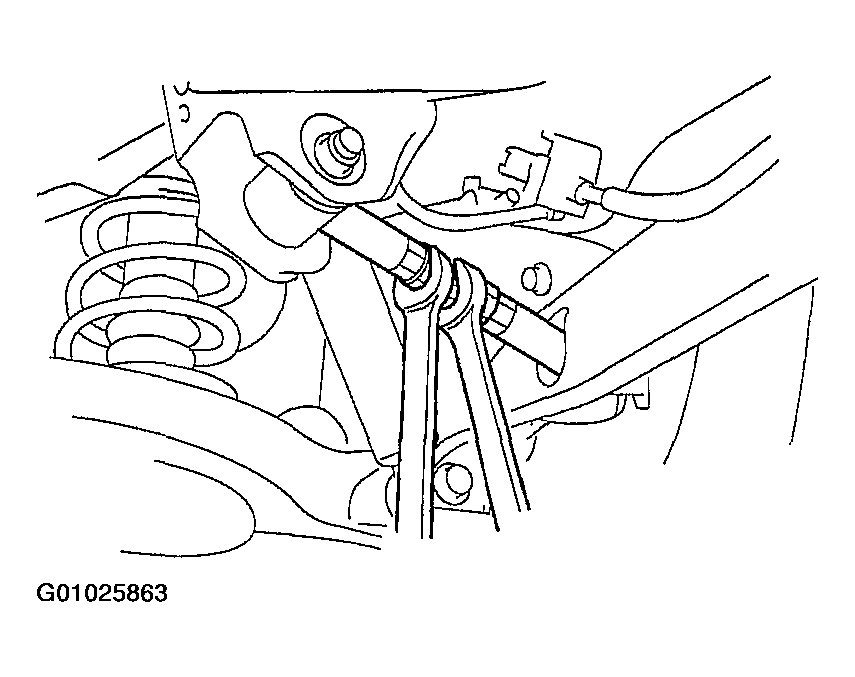

Fig 2: Adjusting Toe-In By Turning Adjusting Link
Courtesy of MAZDA MOTORS CORP.
Tighten the locknut.
Tightening torque

68.6-98.1 N.m {7.0-10.0 kgf.m, 50.6-72.3 ft.lbf}

Fig 3: Tightening Locknut
Courtesy of MAZDA MOTORS CORP.
