Ignition Switch Inspection

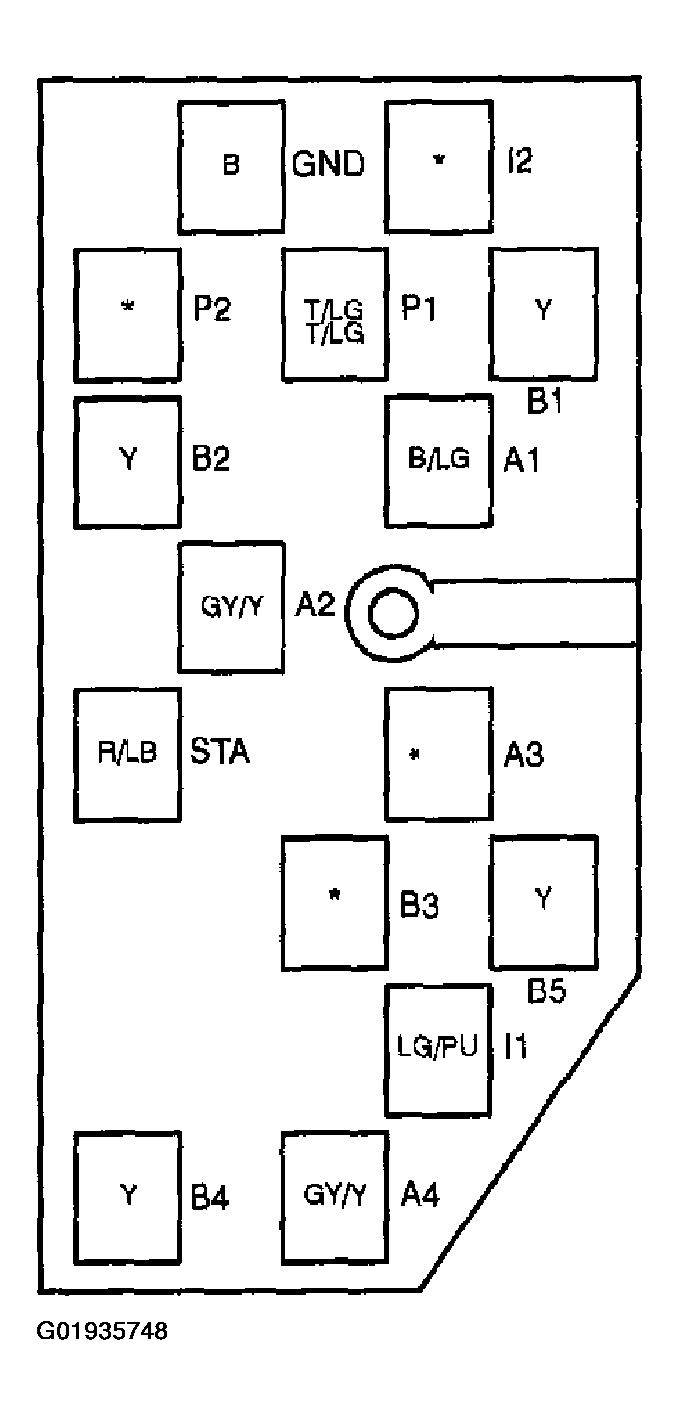

Fig 1: Identifying Ignition Switch Terminals
G01935748Courtesy of MAZDA MOTORS CORP.

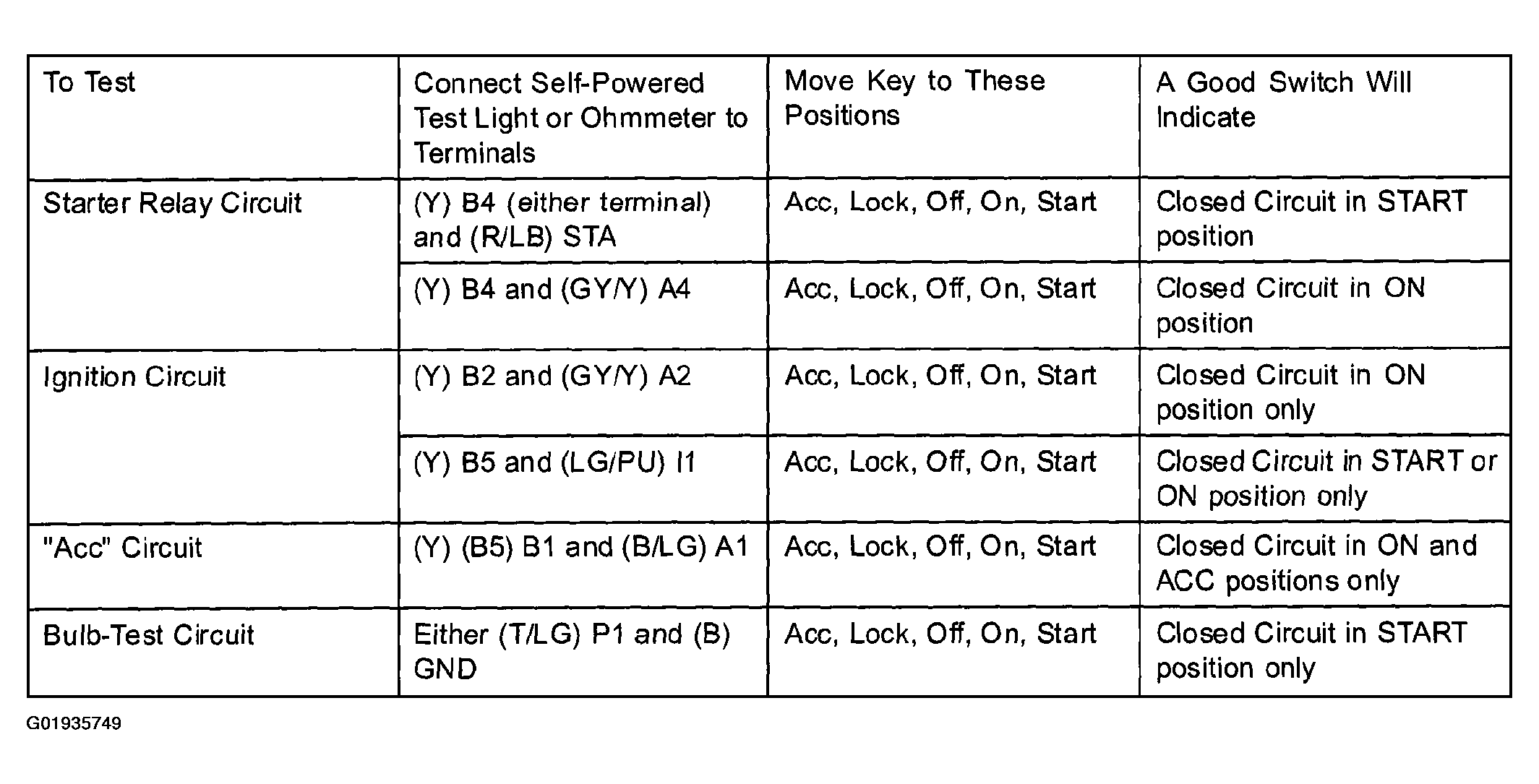

Fig 2: Ignition Switch Inspection Table
G01935749Courtesy of MAZDA MOTORS CORP.
