Exterior Mirror Motor Removal/Installation

NOTE:

Remove the exterior mirror glass. See EXTERIOR MIRROR GLASS REMOVAL/INSTALLATION .
Position aside the exterior mirror motor (17D696).

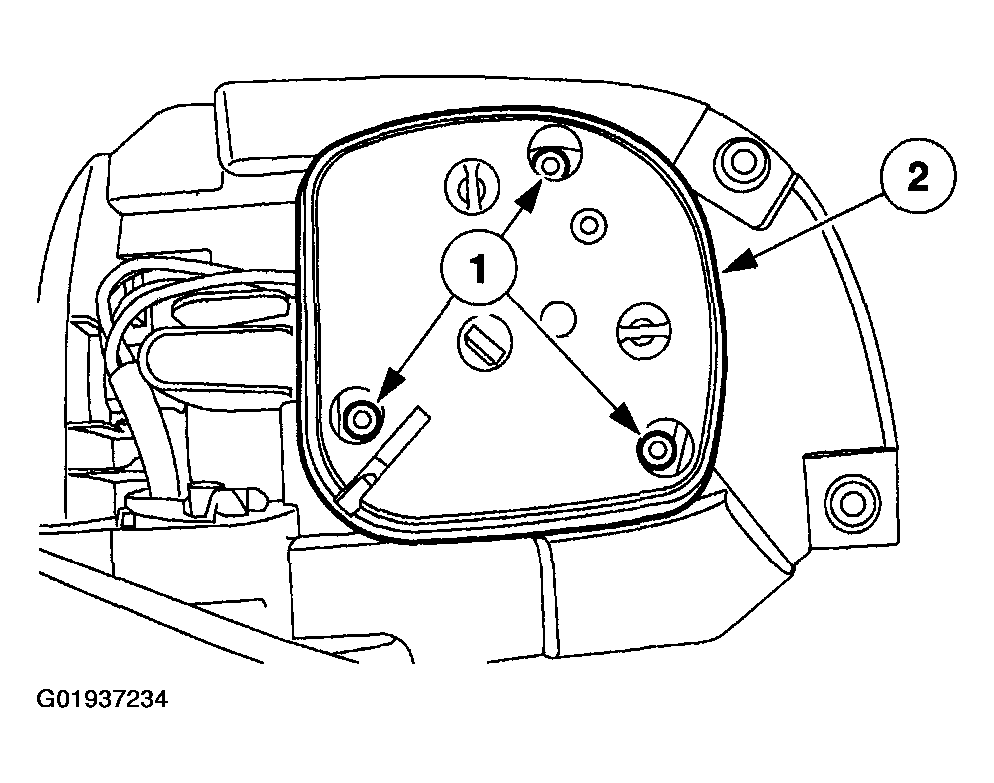

Fig 1: Locating Outside Mirror Screws
Courtesy of MAZDA MOTORS CORP.
1. Remove the screws.
2. Position aside the exterior mirror motor.
Disconnect the electrical connector and remove the exterior mirror motor.

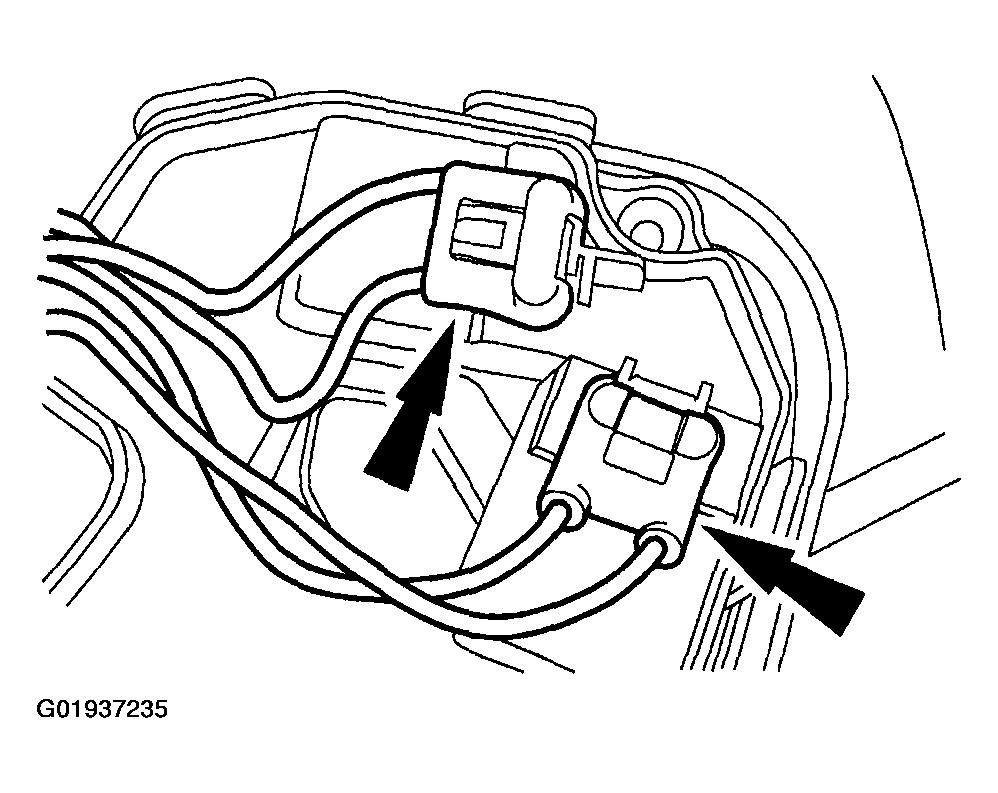

Fig 2: Disconnecting Power Outside Mirror Electrical Connector
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
