Power Window Main Switch Removal/Installation

Remove the two screws and reposition door trim finish panel.
Remove in order shown in illustration.
1. Screws
2. Switch plate
3. Switch

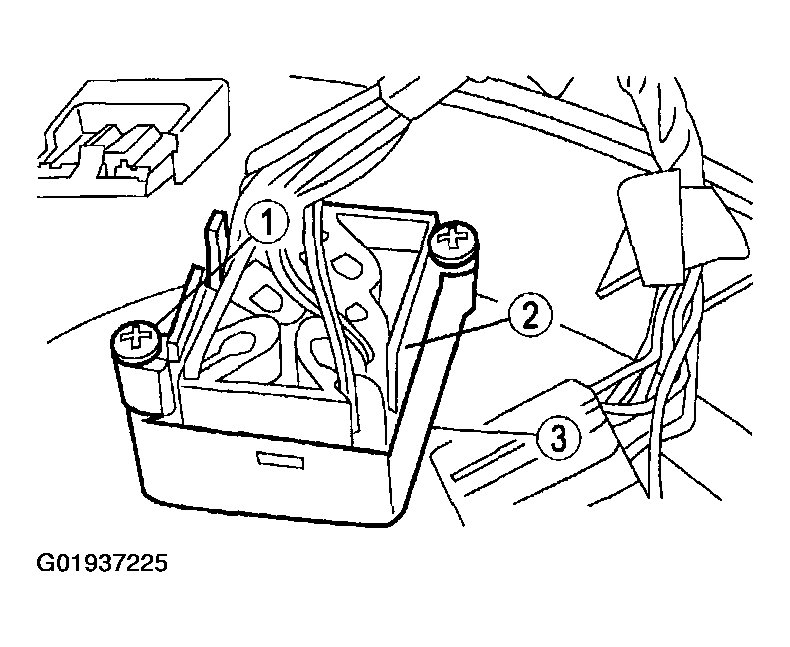

Fig 1: Removing/Installing Power Window Main Switch
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
1. Tightening torque
  1. 2 - 3 N.m (20 - 31 kgf.cm, 18 - 26 in.lbf)
