Engine Ignition Specifications -3.0L

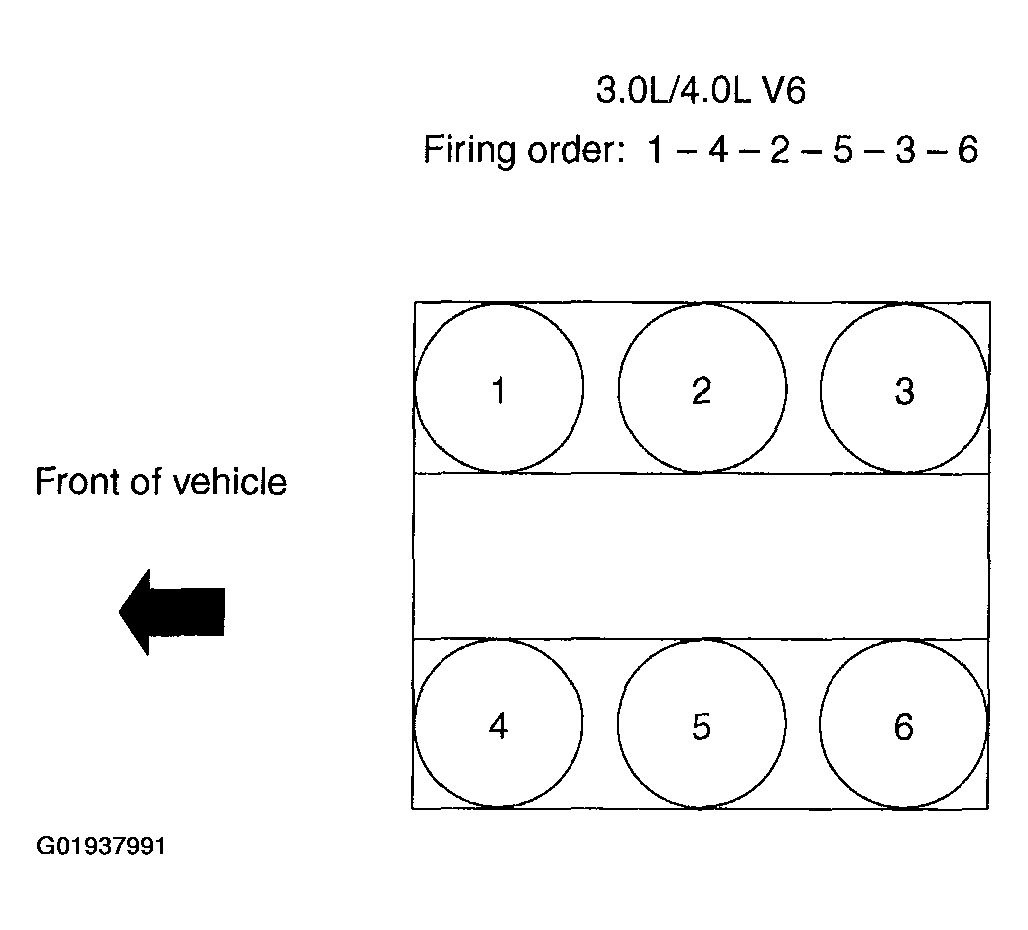

Fig 1: Firing Order - 3.0/4.0L V6
G01937991Courtesy of MAZDA MOTORS CORP.

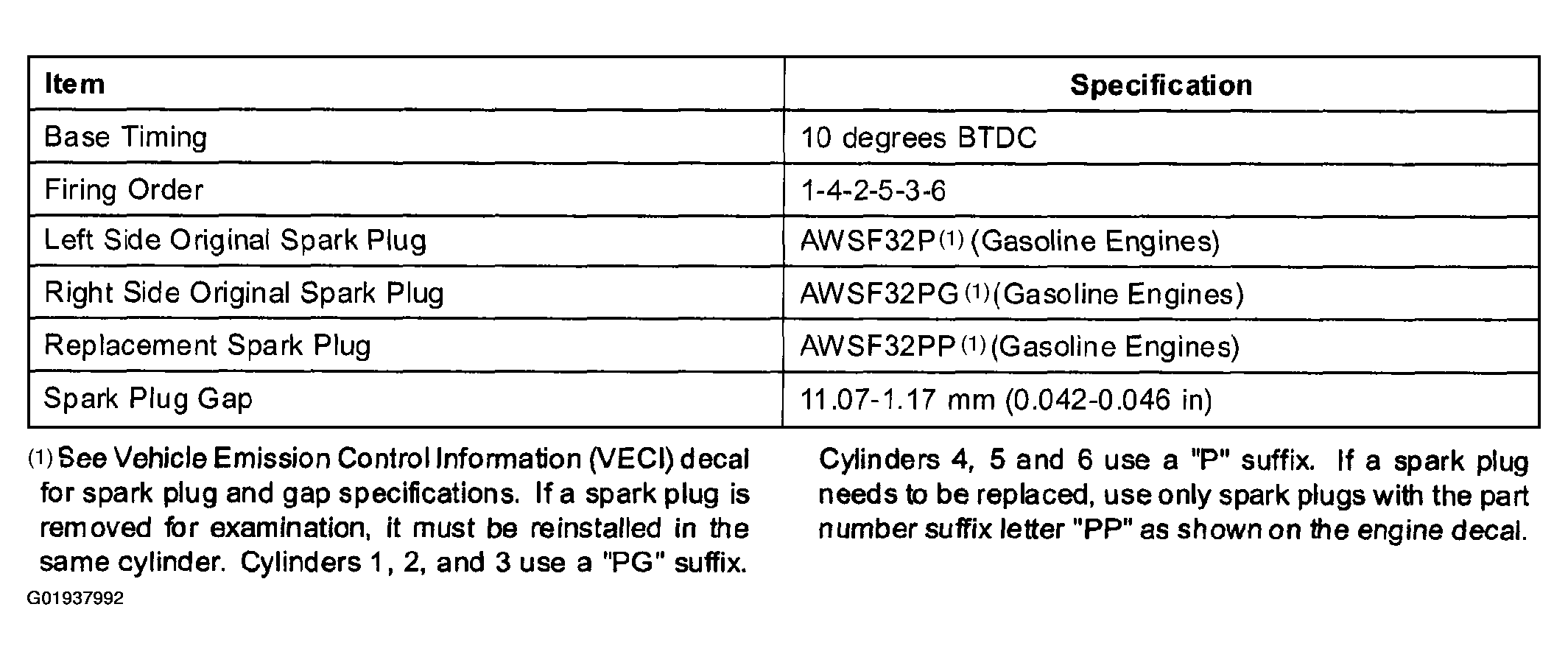

Fig 2: Engine Ignition Specifications -3.0L
G01937992Courtesy of MAZDA MOTORS CORP.
