Cylinder Head Temperature (CHT) Sensor Removal/Installation - 2.3L

Disconnect the negative battery cable.

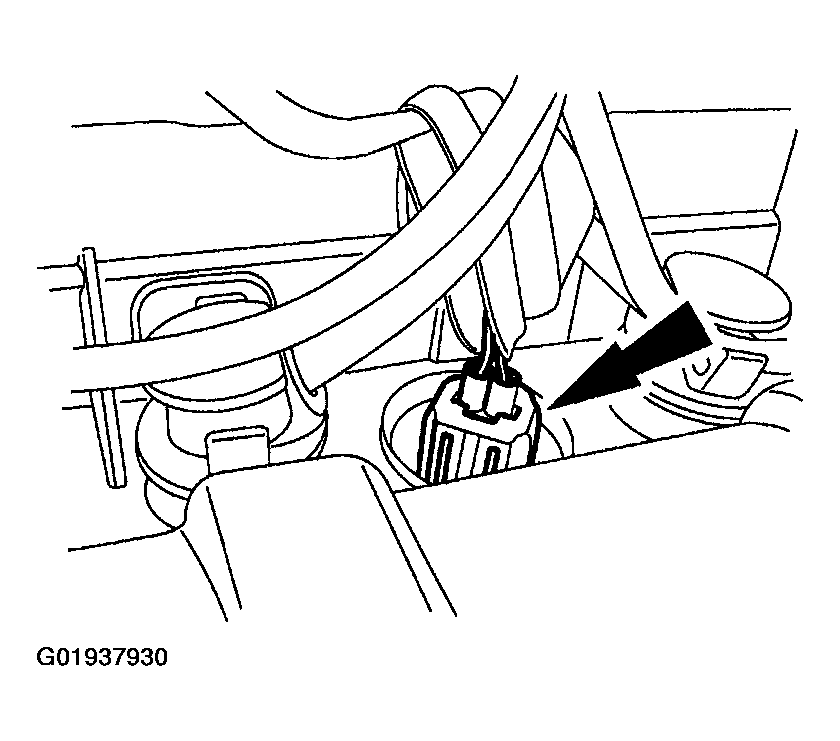

Fig 1: Disconnecting Cylinder Head Temperature (CHT) Sensor Electrical Connector - 2.3L
Courtesy of MAZDA MOTORS CORP.
Pull back the cylinder head temperature (CHT) sensor cover and disconnect the electrical connector.

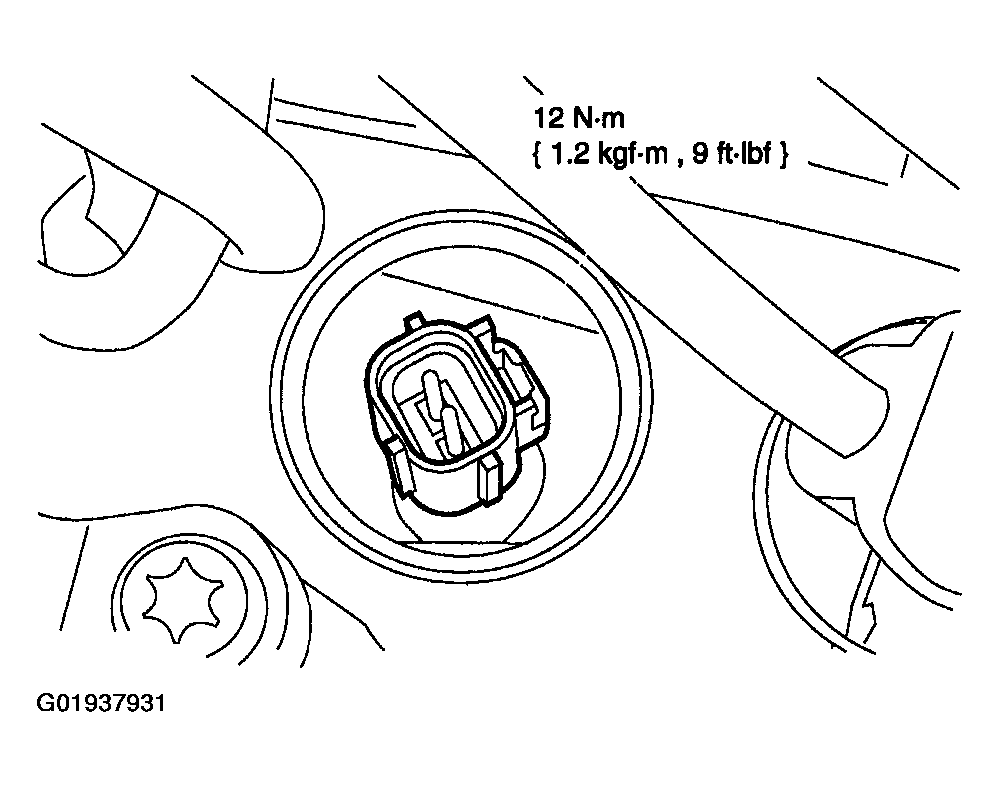

Fig 2: Removing Cylinder Head Temperature (CHT) Sensor - 2.3L
Courtesy of MAZDA MOTORS CORP.
Remove the CHT sensor.
To install, reverse the removal procedure.
