Fuel Charging Wiring Harness Removal/Installation - 3.0L: Installation

  1. Position the engine control sensor wiring.

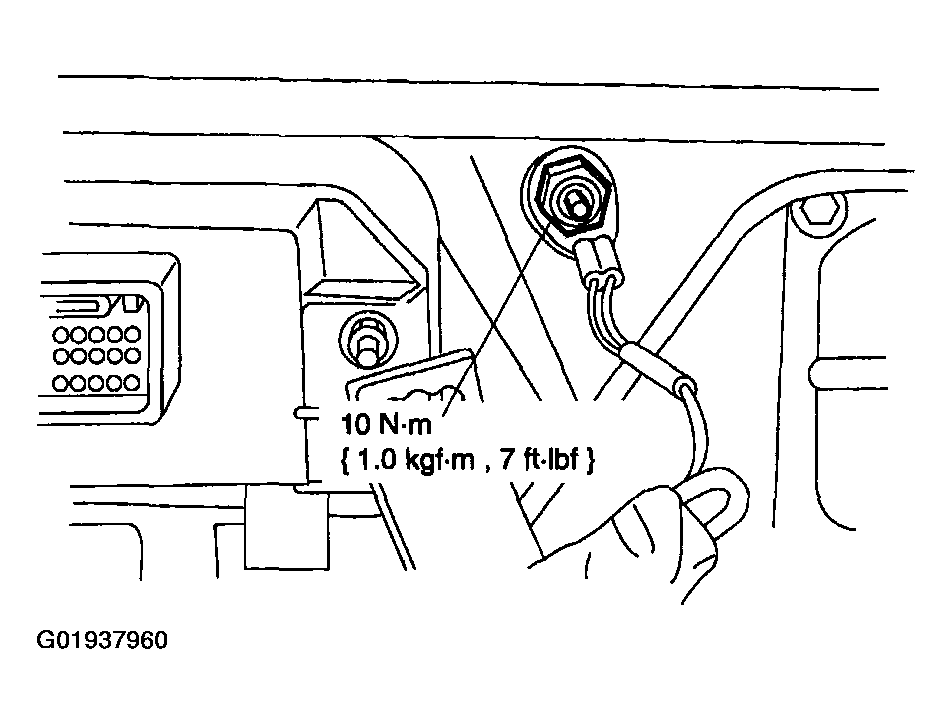

    Fig 1: Installing Ground Strap And Stud Bolt - 3.0L
    G01937960Courtesy of MAZDA MOTORS CORP.
  2. Install the ground strap and the stud bolt.

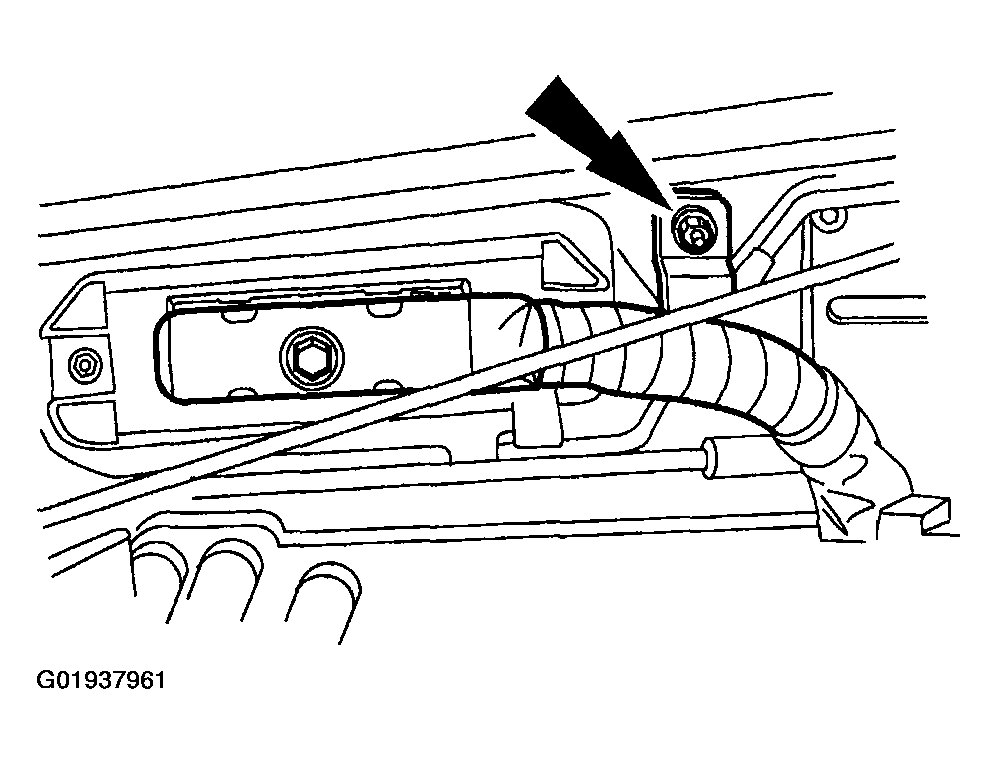

    Fig 2: Installing Nut - 3.0L
    G01937961Courtesy of MAZDA MOTORS CORP.
  3. Install the nut.

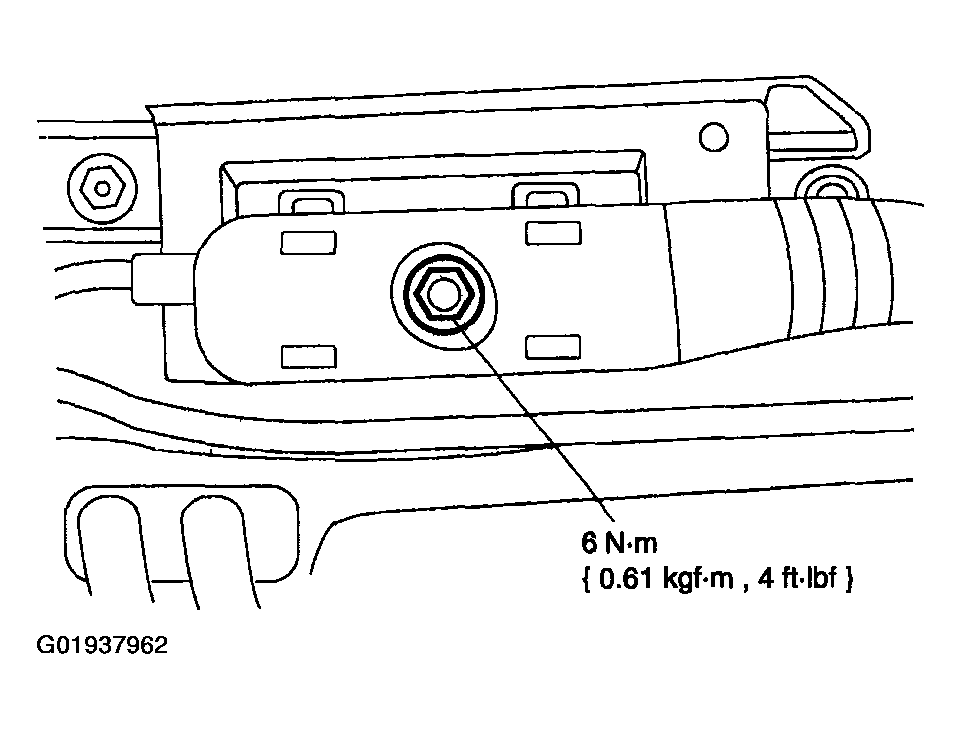

    Fig 3: Connecting PCM Electrical Connector - 3.0L
    G01937962Courtesy of MAZDA MOTORS CORP.
  4. Connect the PCM electrical connector.

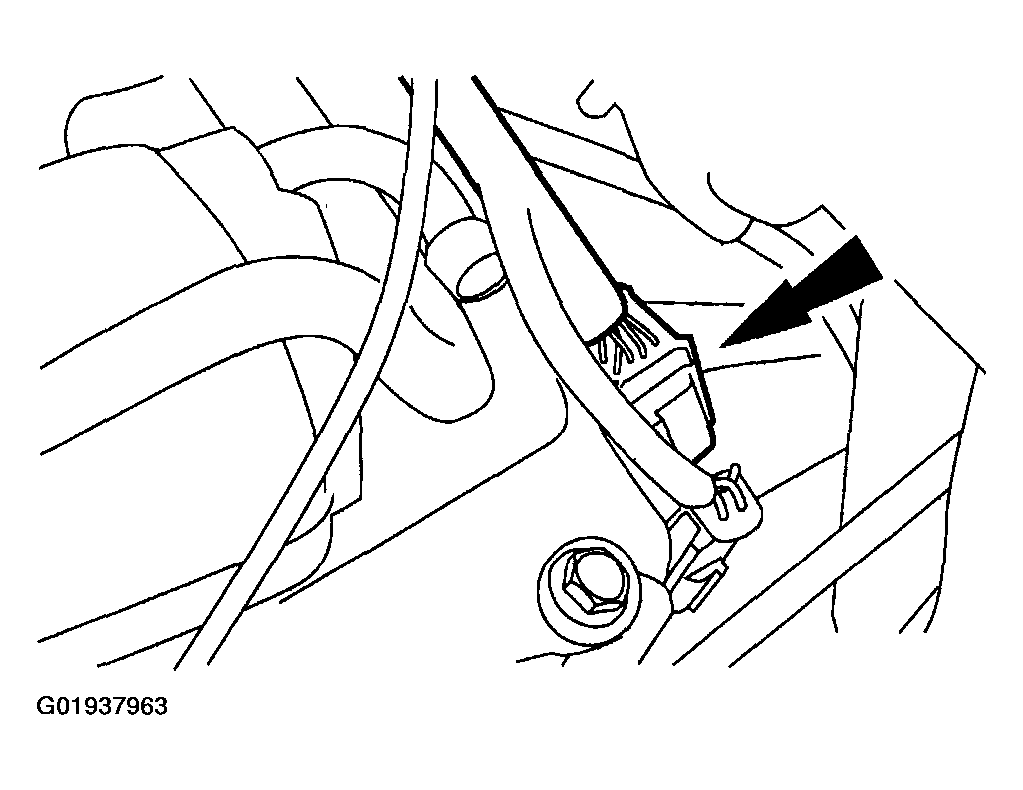

    Fig 4: Connecting Transmission Harness Electrical Connectors - 3.0L
    G01937963Courtesy of MAZDA MOTORS CORP.
  5. Connect the transmission harness electrical connectors.

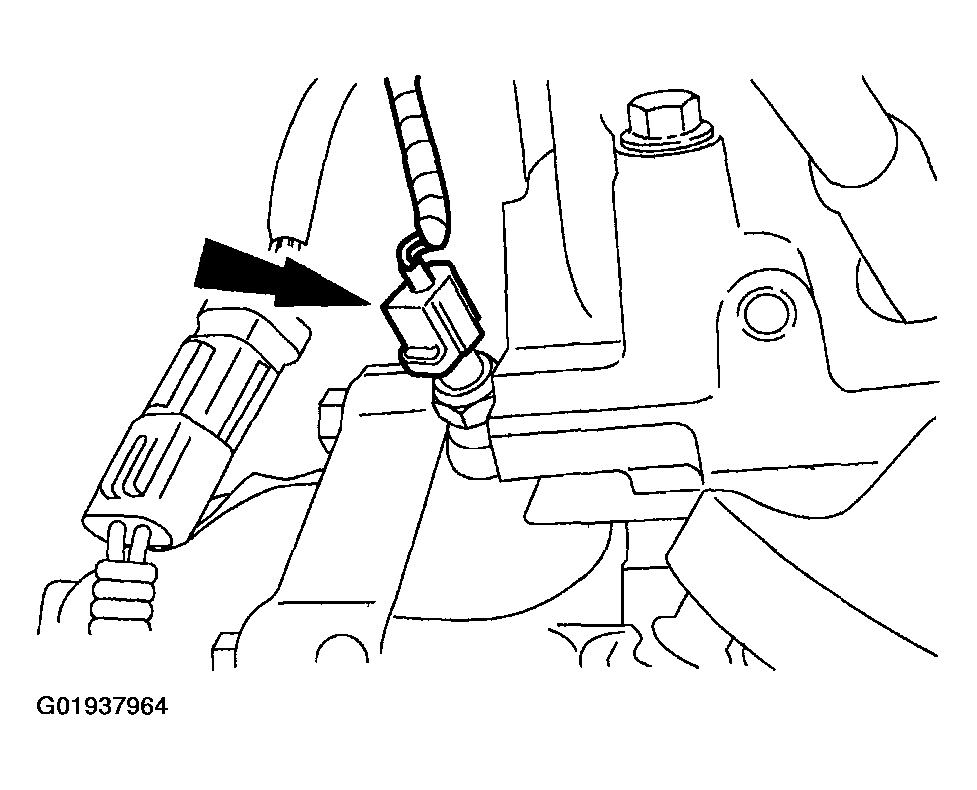

    Fig 5: Connecting Oil Pressure Sensor Electrical Connector - 3.0L
    G01937964Courtesy of MAZDA MOTORS CORP.
  6. Connect the oil pressure sensor electrical connector.

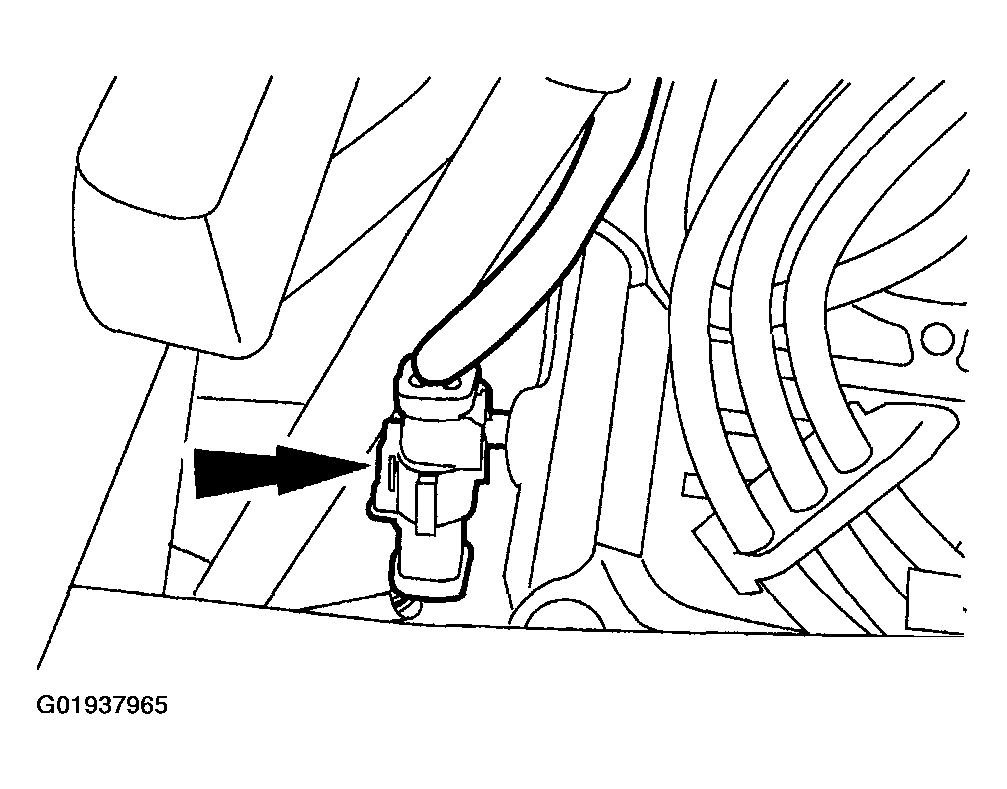

    Fig 6: Connecting Heated Oxygen Sensor Electrical Connectors - 3.0L
    G01937965Courtesy of MAZDA MOTORS CORP.
  7. Connect the heated oxygen sensor electrical connectors.

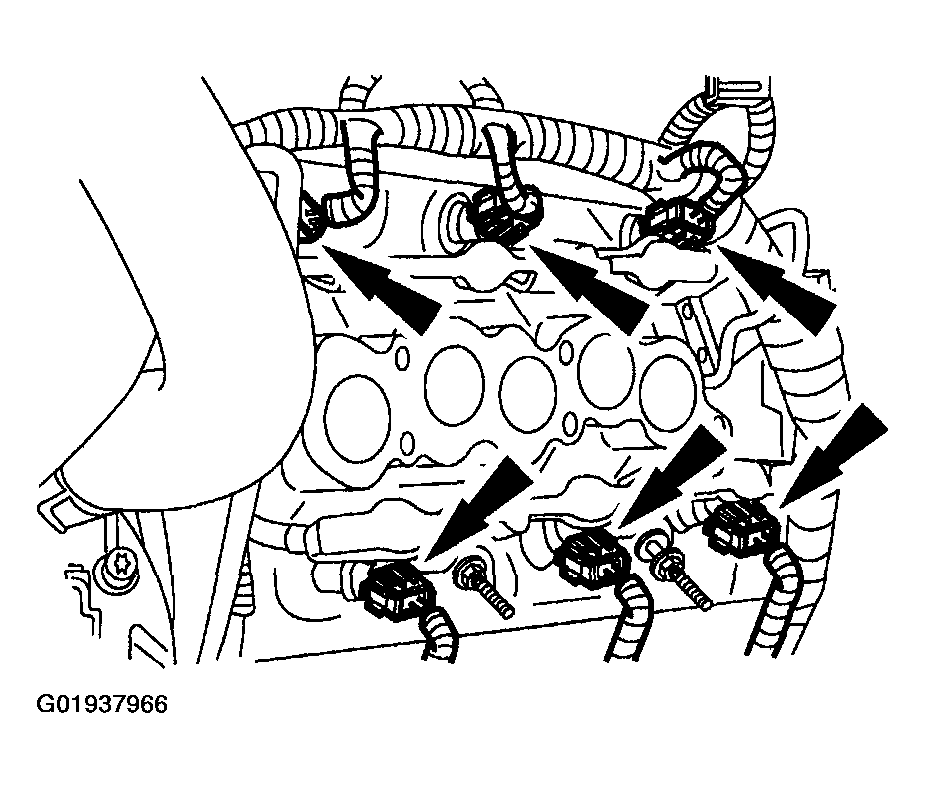

    Fig 7: Connecting Fuel Injectors Electrical Connectors - 3.0L
    G01937966Courtesy of MAZDA MOTORS CORP.
  8. Connect the fuel injectors electrical connectors.

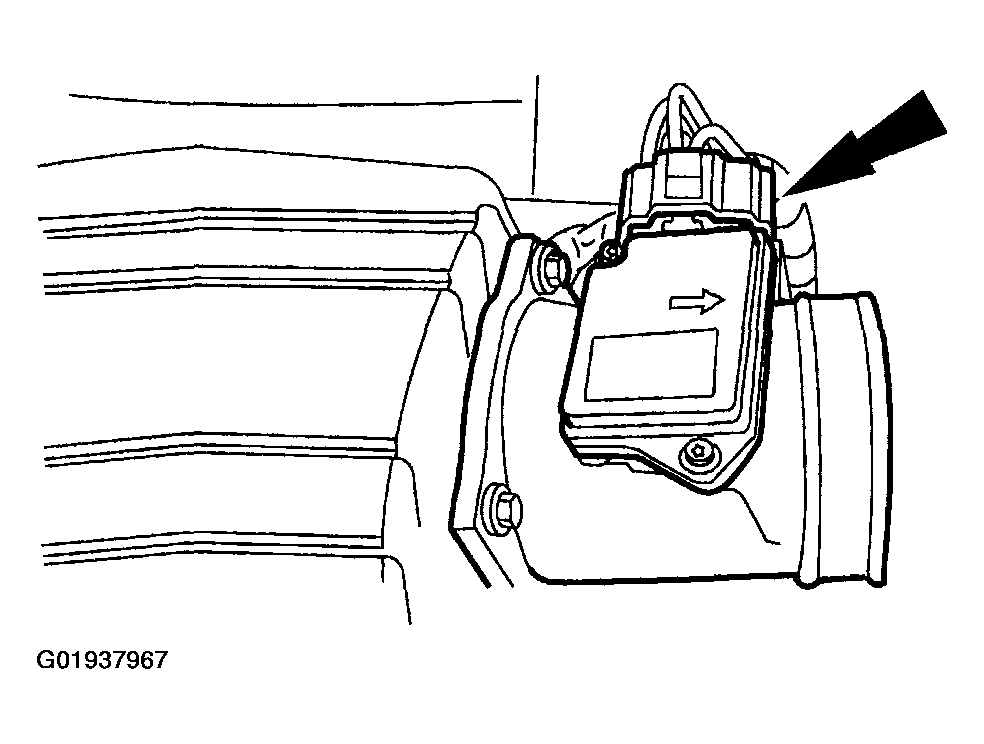

    Fig 8: Connecting Mass Air Flow Sensor Electrical Connector - 3.0L
    G01937967Courtesy of MAZDA MOTORS CORP.
  9. Connect the mass air flow sensor electrical connector.

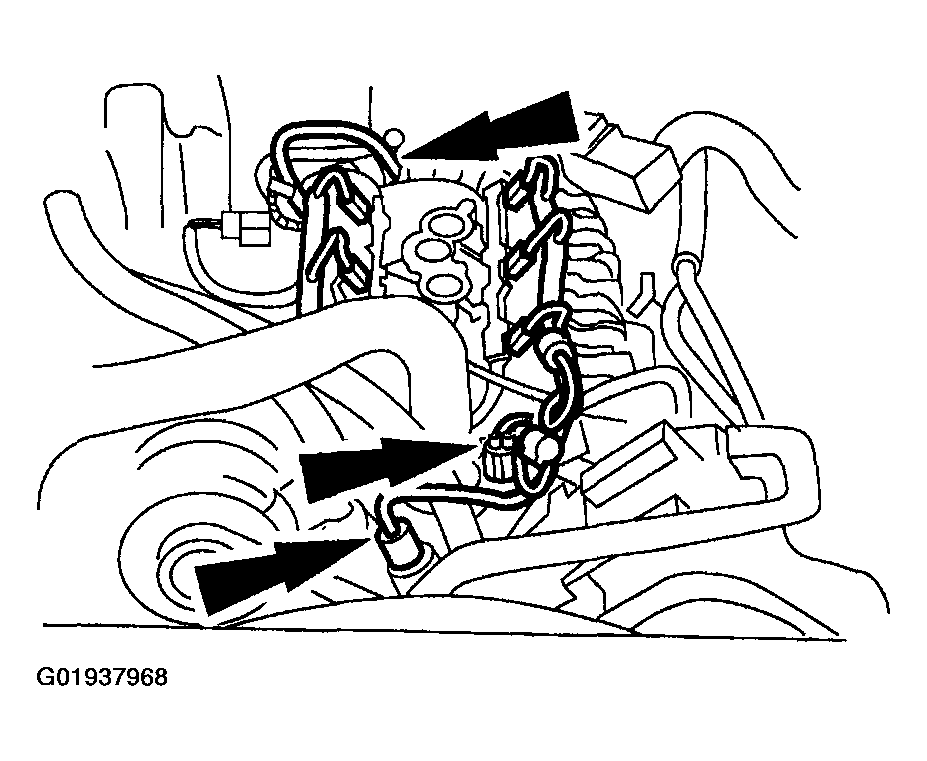

    Fig 9: Connecting Engine Coolant Temperature Sensor, Water Temperature Indicator Sender Unit And Camshaft Position Sensor Electrical Connectors - 3.0L
    G01937968Courtesy of MAZDA MOTORS CORP.
  10. Connect the engine coolant temperature (ECT) sensor, the water temperature indicator sender unit and the camshaft position (CMP) sensor electrical connectors.

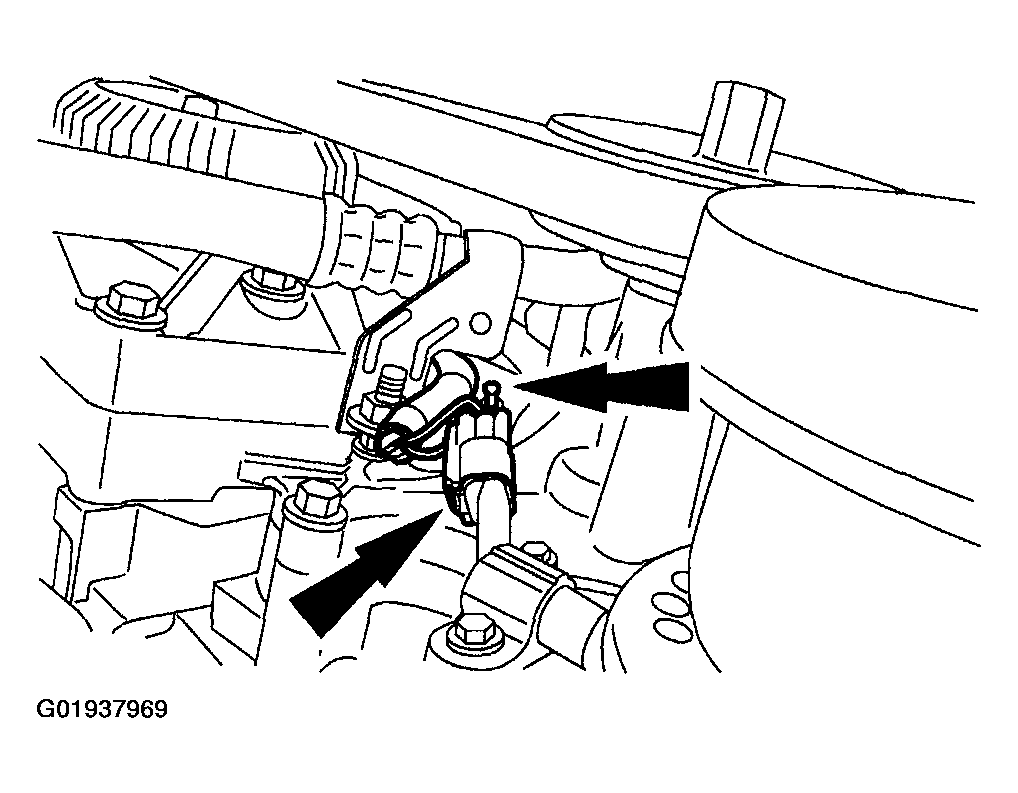

    Fig 10: Connecting Crankshaft Position Sensor Electrical Connector - 3.0L
    G01937969Courtesy of MAZDA MOTORS CORP.
  11. Connect the crankshaft position (CKP) sensor electrical connector.
  12. Install the upper intake manifold. See INTAKE MANIFOLD UPPER REMOVAL/INSTALLATION - 3.0L .
  13. Connect the negative battery cable.
