Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Removal/Installation

CAUTION:

Disconnect negative battery cable.
Disconnect the mass air flow (MAF) sensor electrical connector.

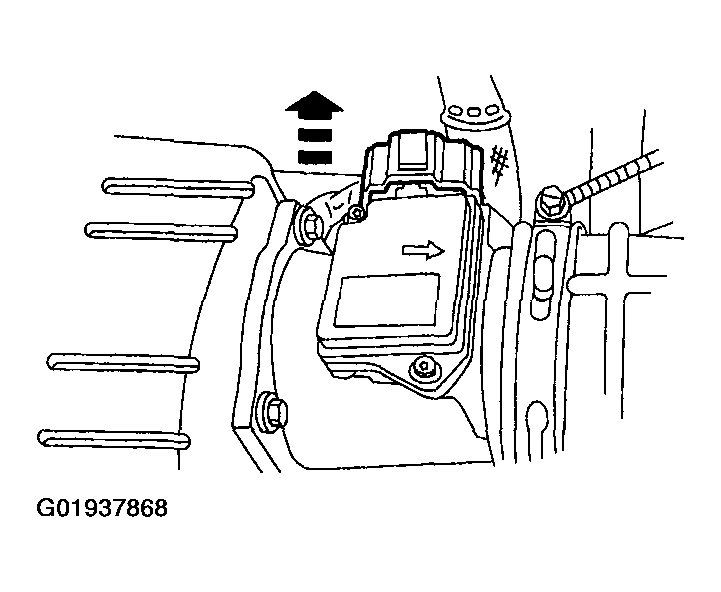

Fig 1: Disconnecting Mass Air Flow (MAF) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the air cleaner outlet tube from the MAF sensor.

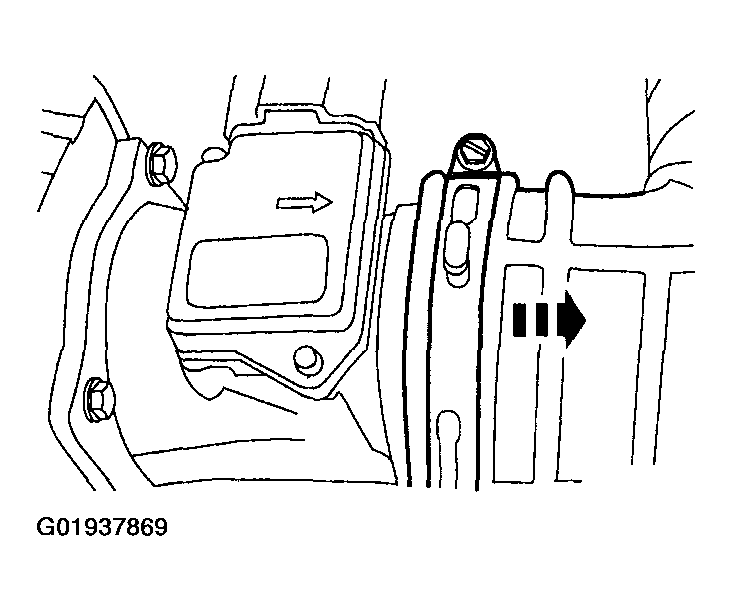

Fig 2: Disconnecting Air Cleaner Outlet Tube From MAF Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the four bolts and the MAF sensor.

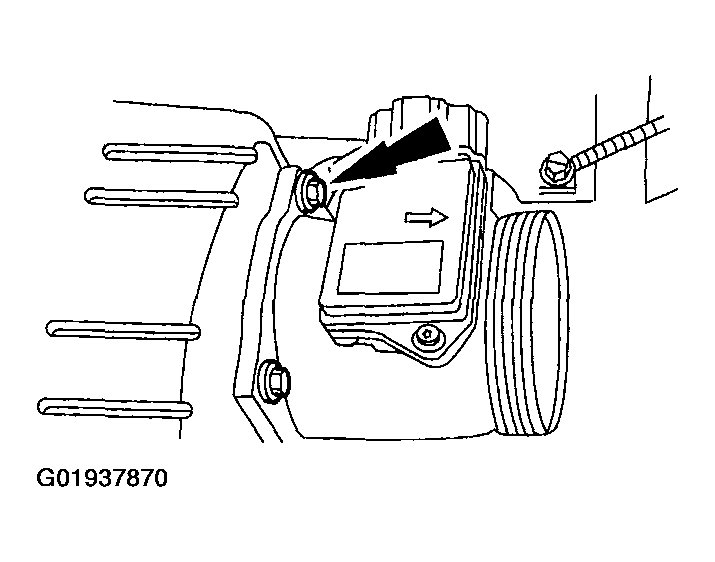

Fig 3: Removing MAF Sensor Bolts
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not tamper with the MAF sensing elements located in the airflow bypass. Tampering may result in failure.
NOTE:
- The MAF sensor module and body are calibrated and installed as a unit.
To install, reverse the removal procedure.
1. Tightening torque
  1. 4-5 N.m (41-51 kgf.cm, 38-44 in.lbs)
