DTC Application Chart - Powertrain Control Module (Pcm)

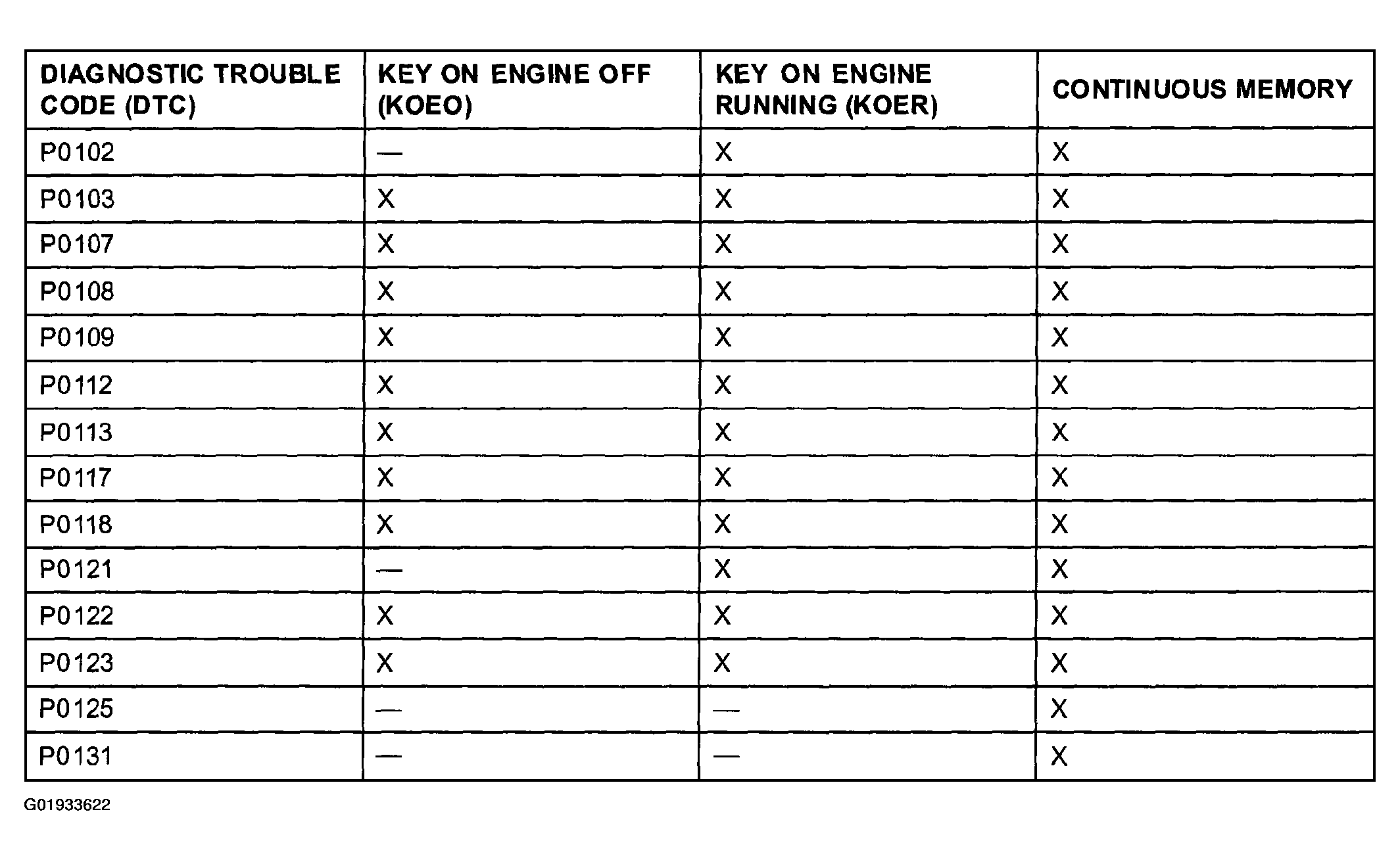

Fig 1: DTC Application Chart - Powertrain Control Module (P0102-P0131)

Courtesy of MAZDA MOTORS CORP.

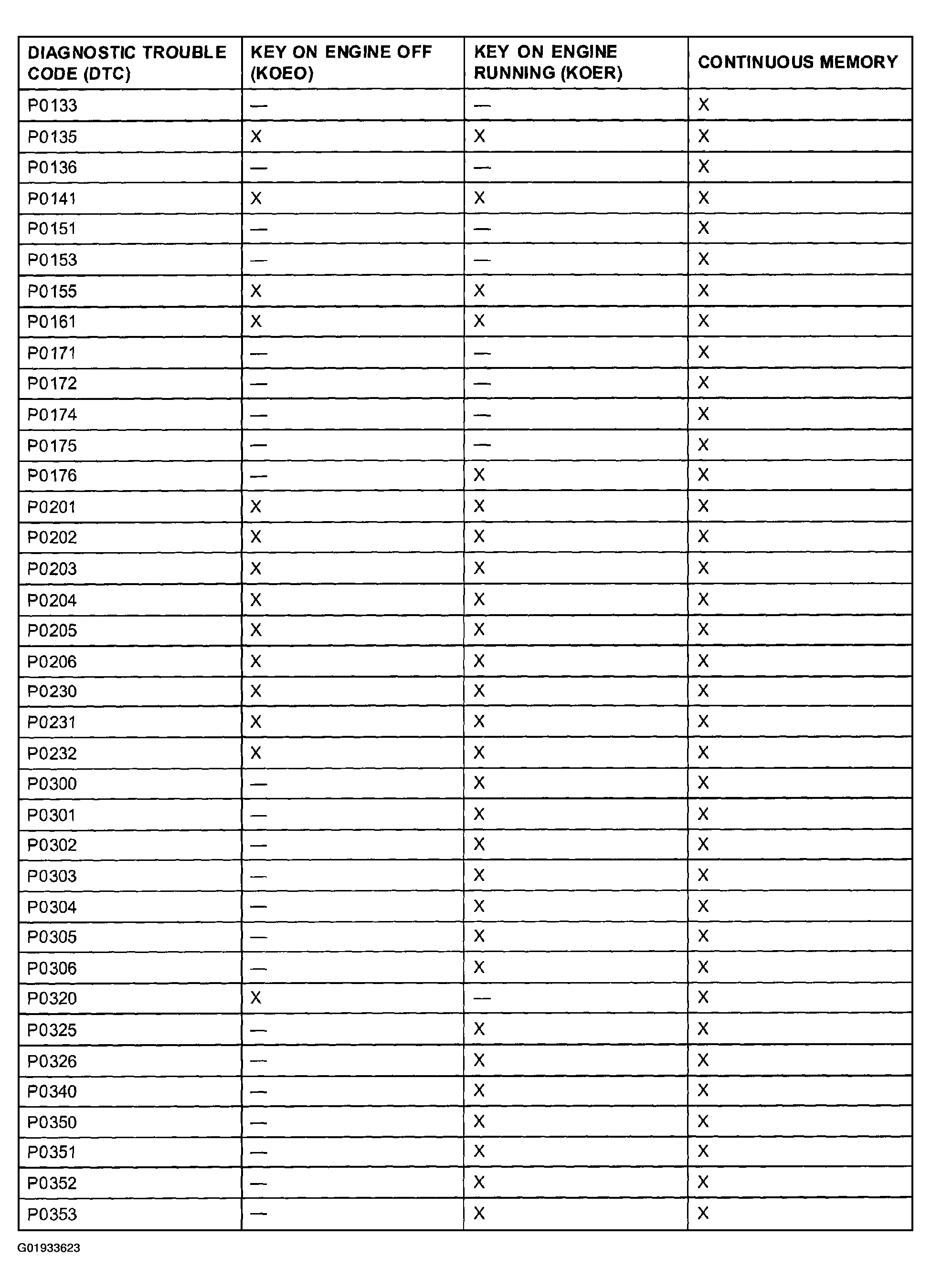

Fig 2: DTC Application Chart - Powertrain Control Module (P0133-P0353)

Courtesy of MAZDA MOTORS CORP.

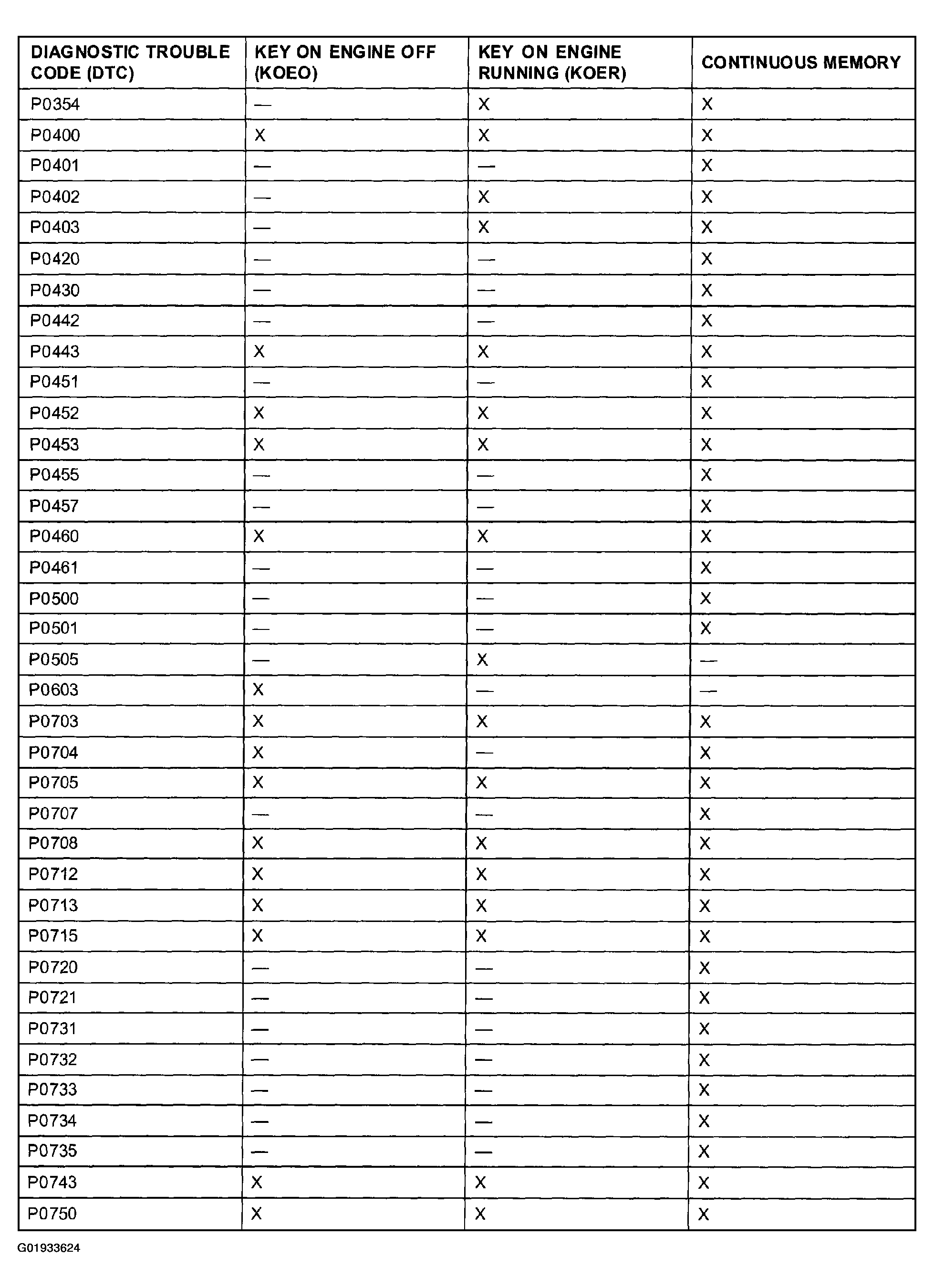

Fig 3: DTC Application Chart - Powertrain Control Module (P0354-P0750)

Courtesy of MAZDA MOTORS CORP.

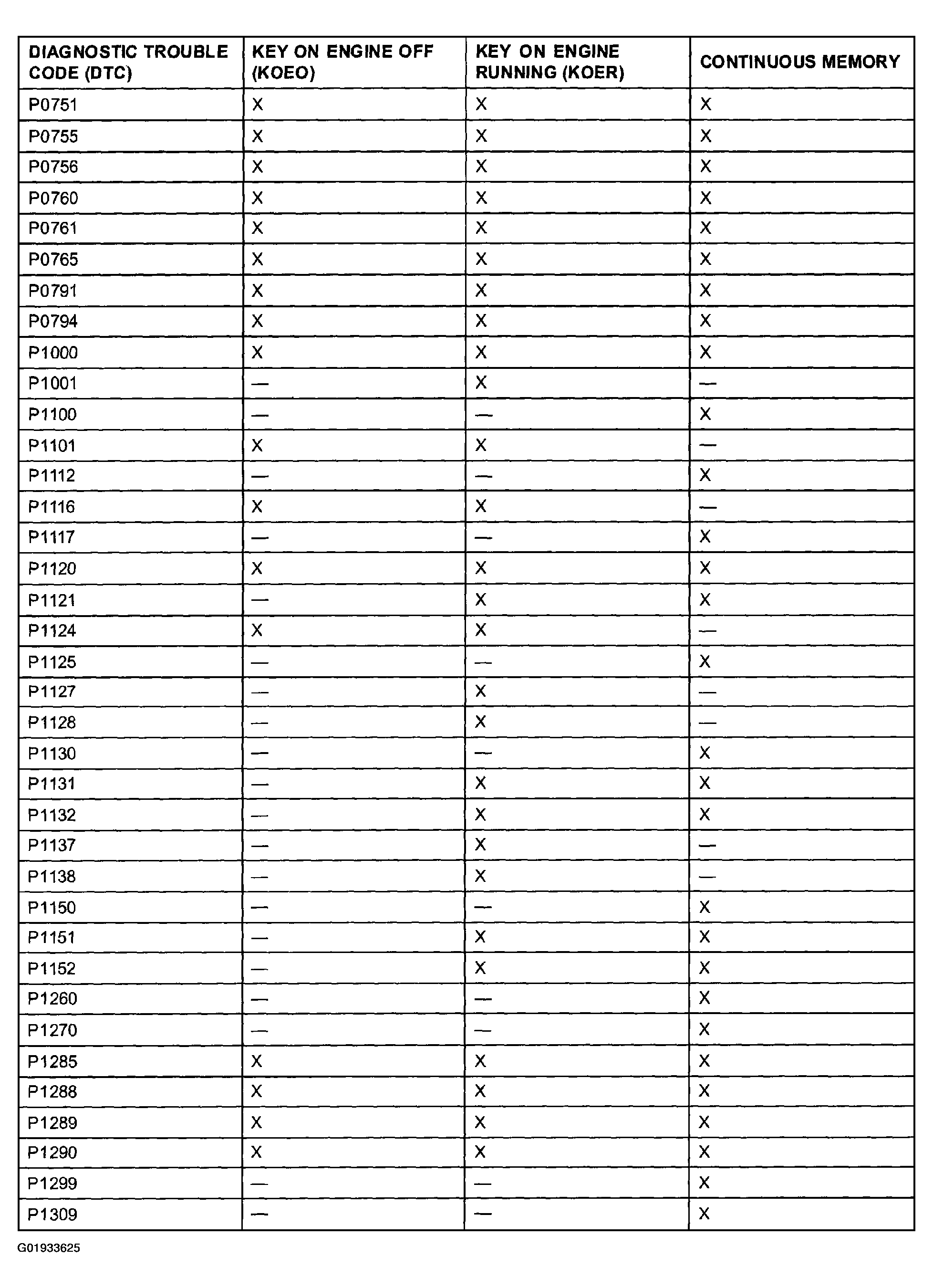

Fig 4: DTC Application Chart - Powertrain Control Module (P0751-P1309)

Courtesy of MAZDA MOTORS CORP.

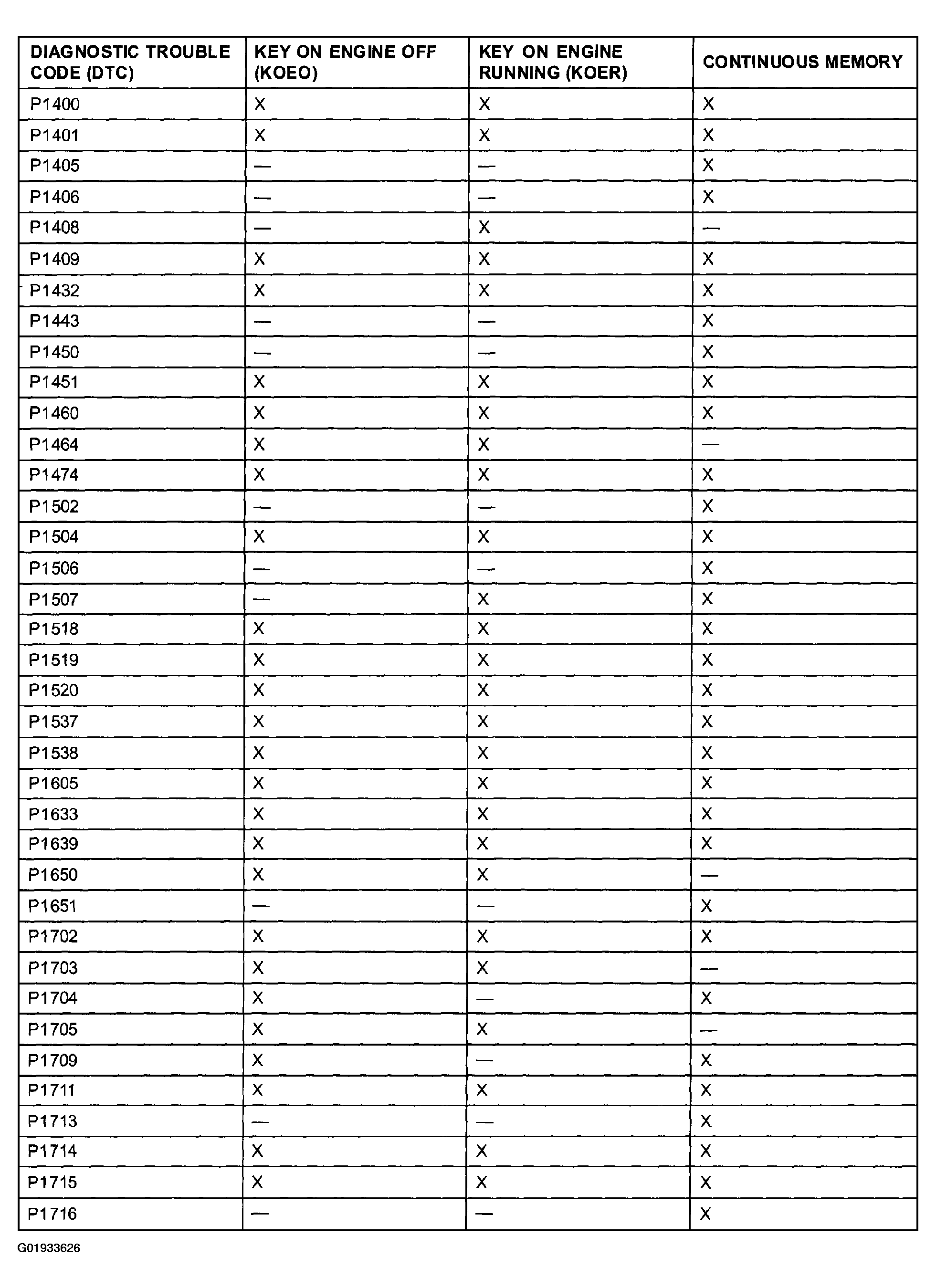

Fig 5: DTC Application Chart - Powertrain Control Module (P1400-P1716)

Courtesy of MAZDA MOTORS CORP.

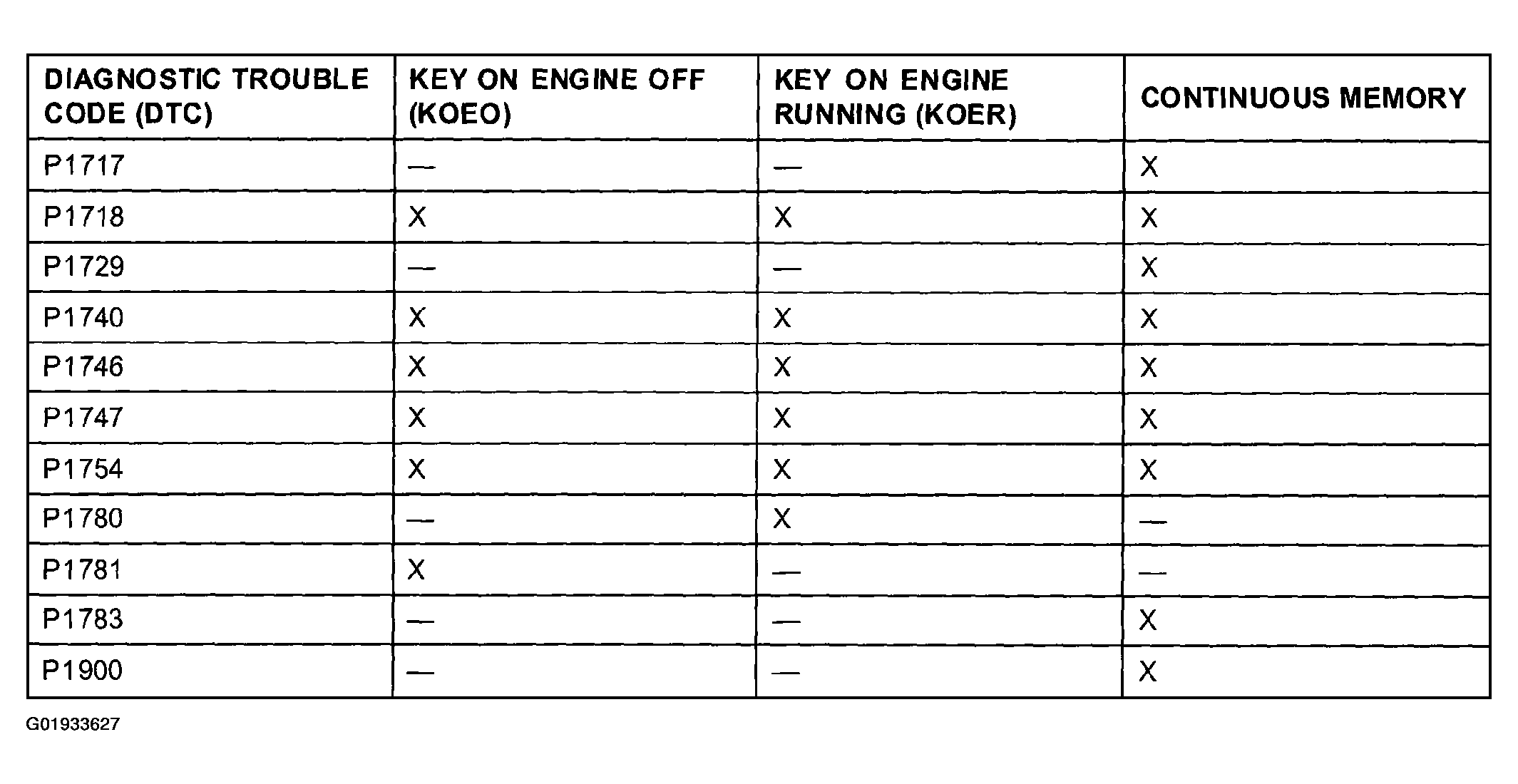

Fig 6: DTC Application Chart - Powertrain Control Module (P1717-P1900)

Courtesy of MAZDA MOTORS CORP.
