Communication Error

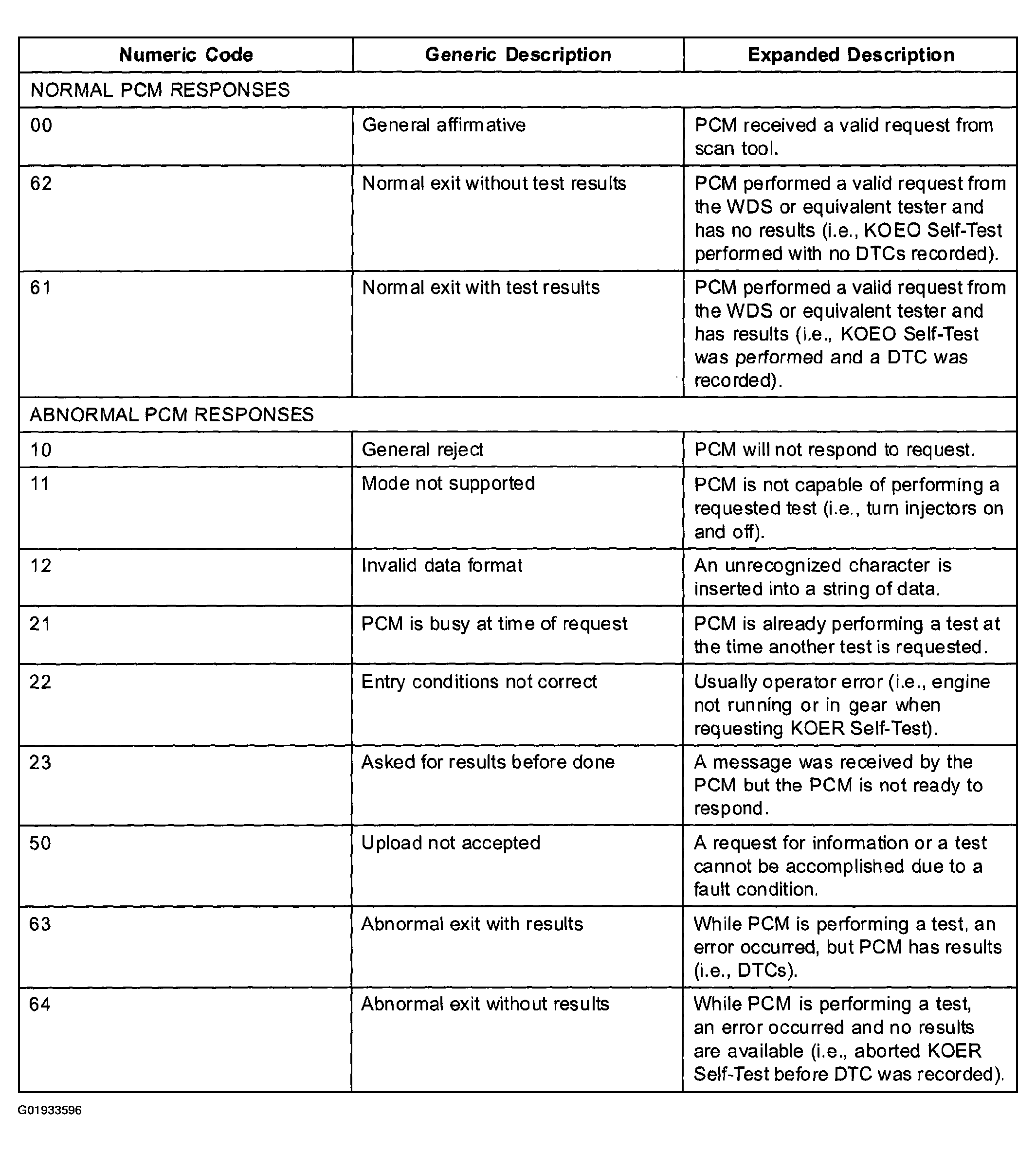

It is possible to receive a communication error from a WDS or equivalent tester when initiating a diagnostic test or accessing PIDs. The communication error can be caused by operator error, the vehicle wiring, connectors, the PCM or other control modules connected to the DLC wiring. The PCM will respond to a WDS or equivalent tester whenever the tool requests a test. These are not DTCs. Listed below are numeric codes and generic descriptions that a scan tool may display when trying to perform some PCM operations. It is possible to get other numeric codes not listed. For a complete list of communication response codes, See Society of Automotive Engineers (SAE) document J2190 enhanced E/E Diagnostic Test Modes. Some are normal responses to valid requests. The others are communication error responses. If the tool displays any of the communication error responses check scan tool connections, cable/adapters and entry of vehicle information.
