Exhaust System Symptom Chart: Notes

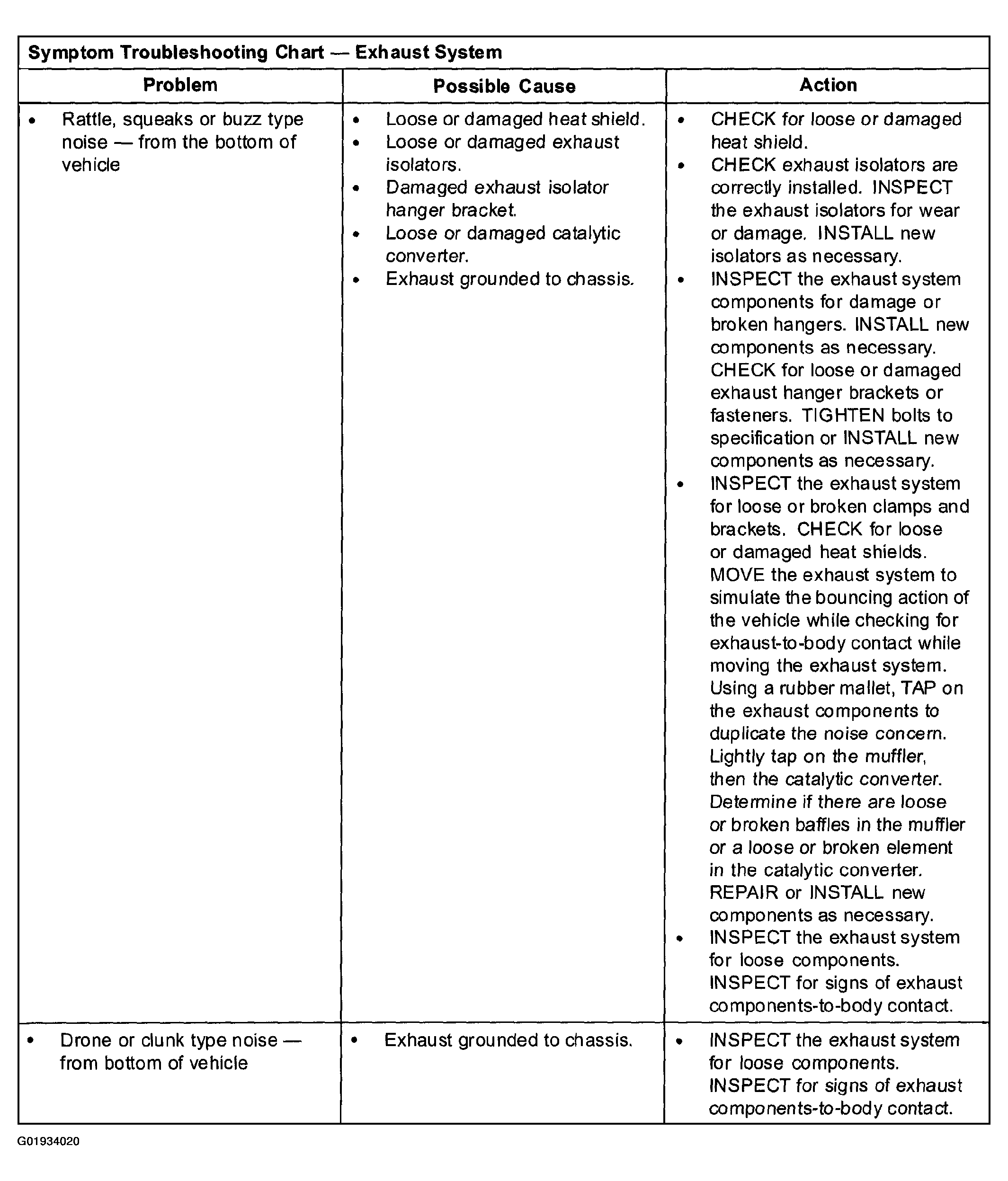

Fig 1: Symptom Troubleshooting Chart - Exhaust System (1 of 3)
G01934020Courtesy of MAZDA MOTORS CORP.

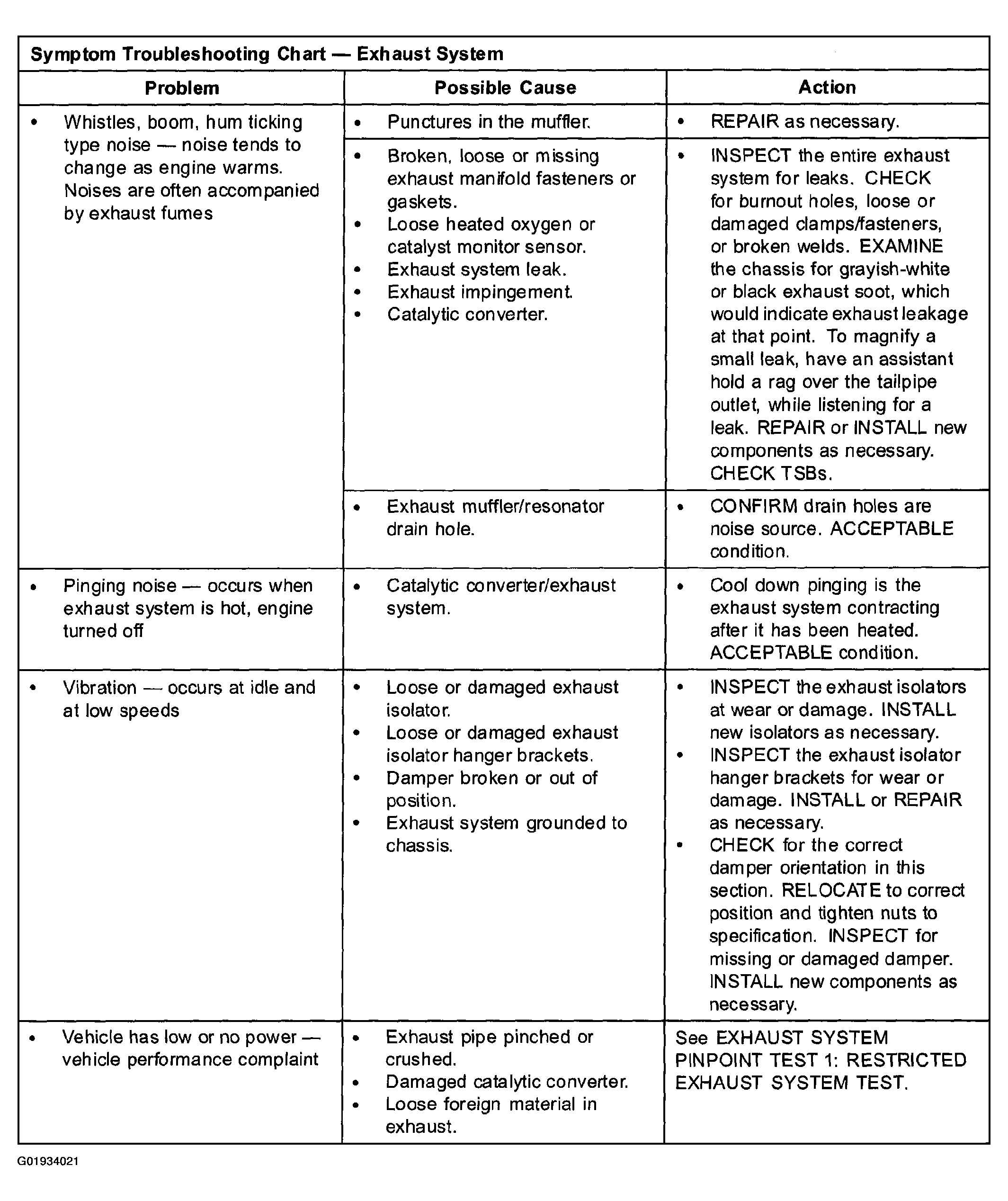

Fig 2: Symptom Troubleshooting Chart - Exhaust System (2 of 3)
G01934021Courtesy of MAZDA MOTORS CORP.

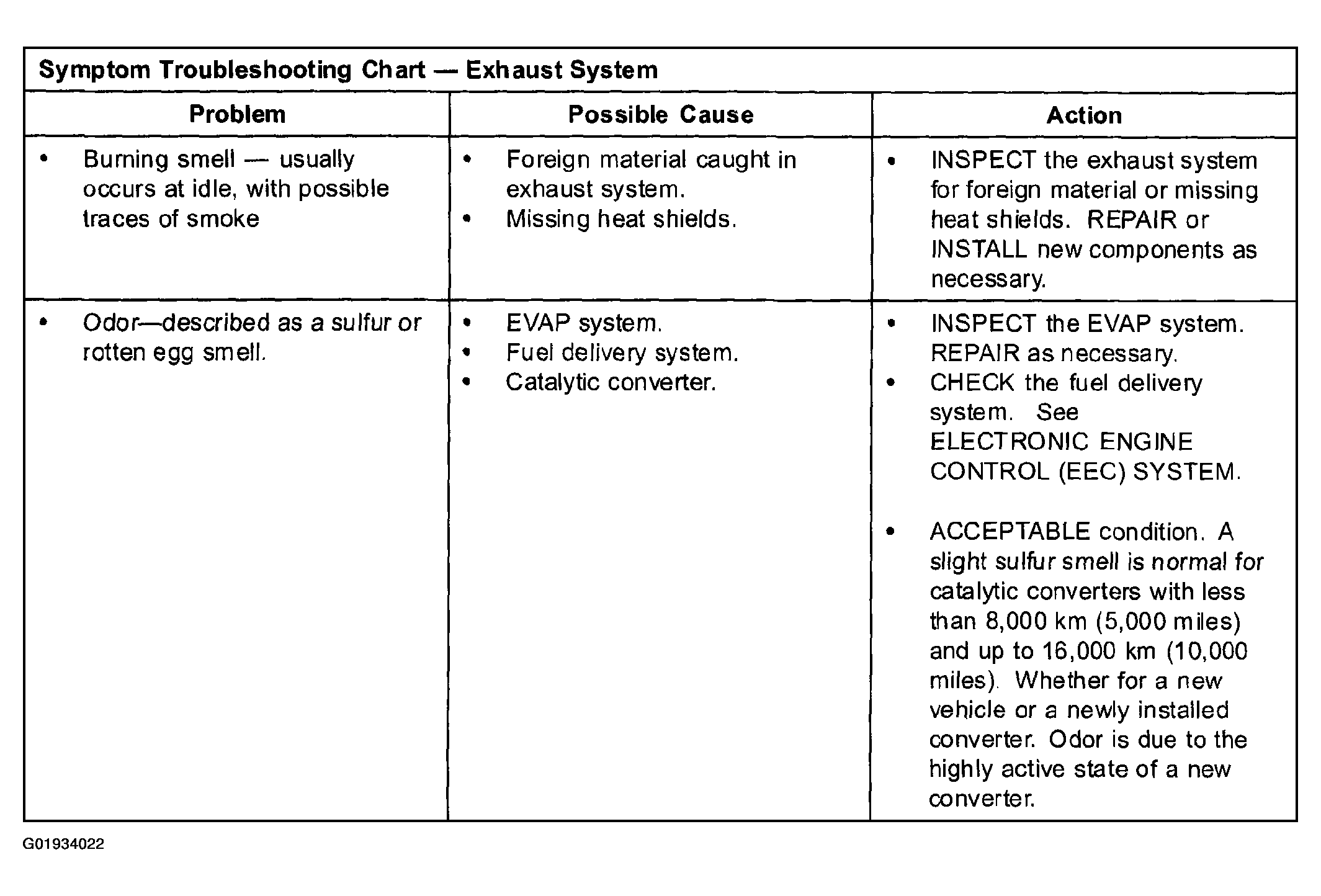

Fig 3: Symptom Troubleshooting Chart- Exhaust System (3 of 3)
G01934022Courtesy of MAZDA MOTORS CORP.
