General Pinpoint Test 12: No Start

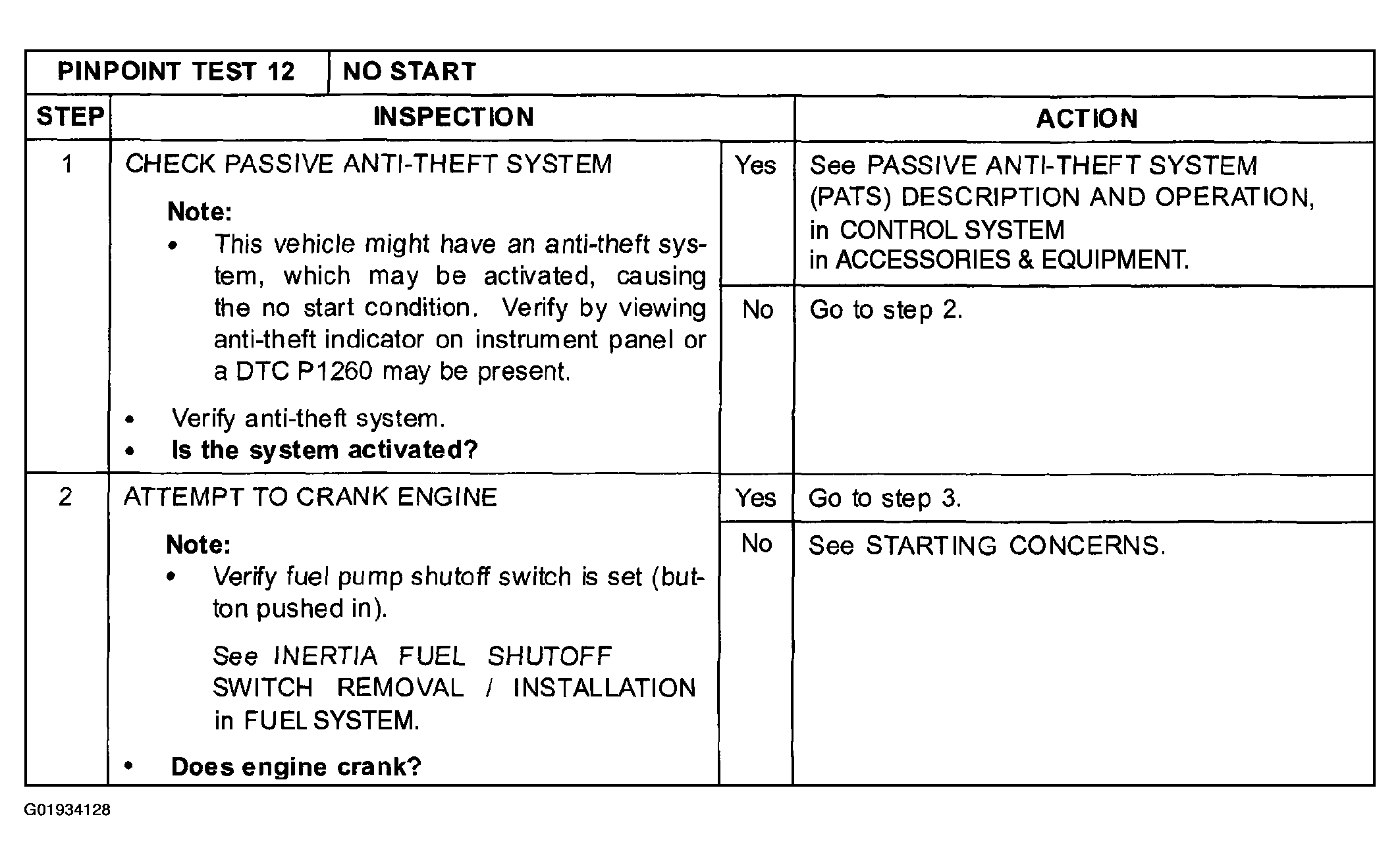

Fig 1: General Pinpoint Test 12: No Start (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

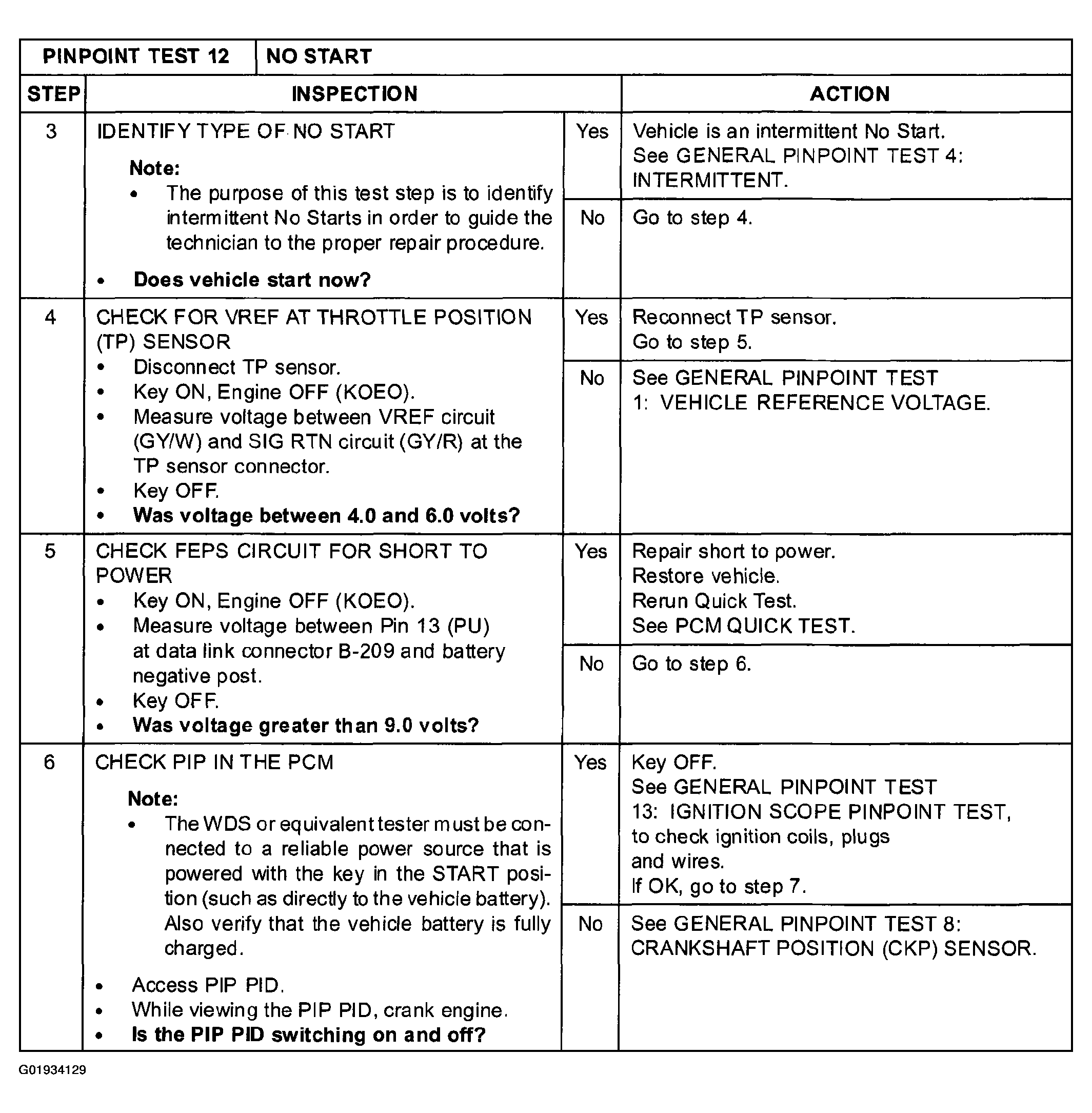

Fig 2: General Pinpoint Test 12: No Start (Steps 3-6)

Courtesy of MAZDA MOTORS CORP.

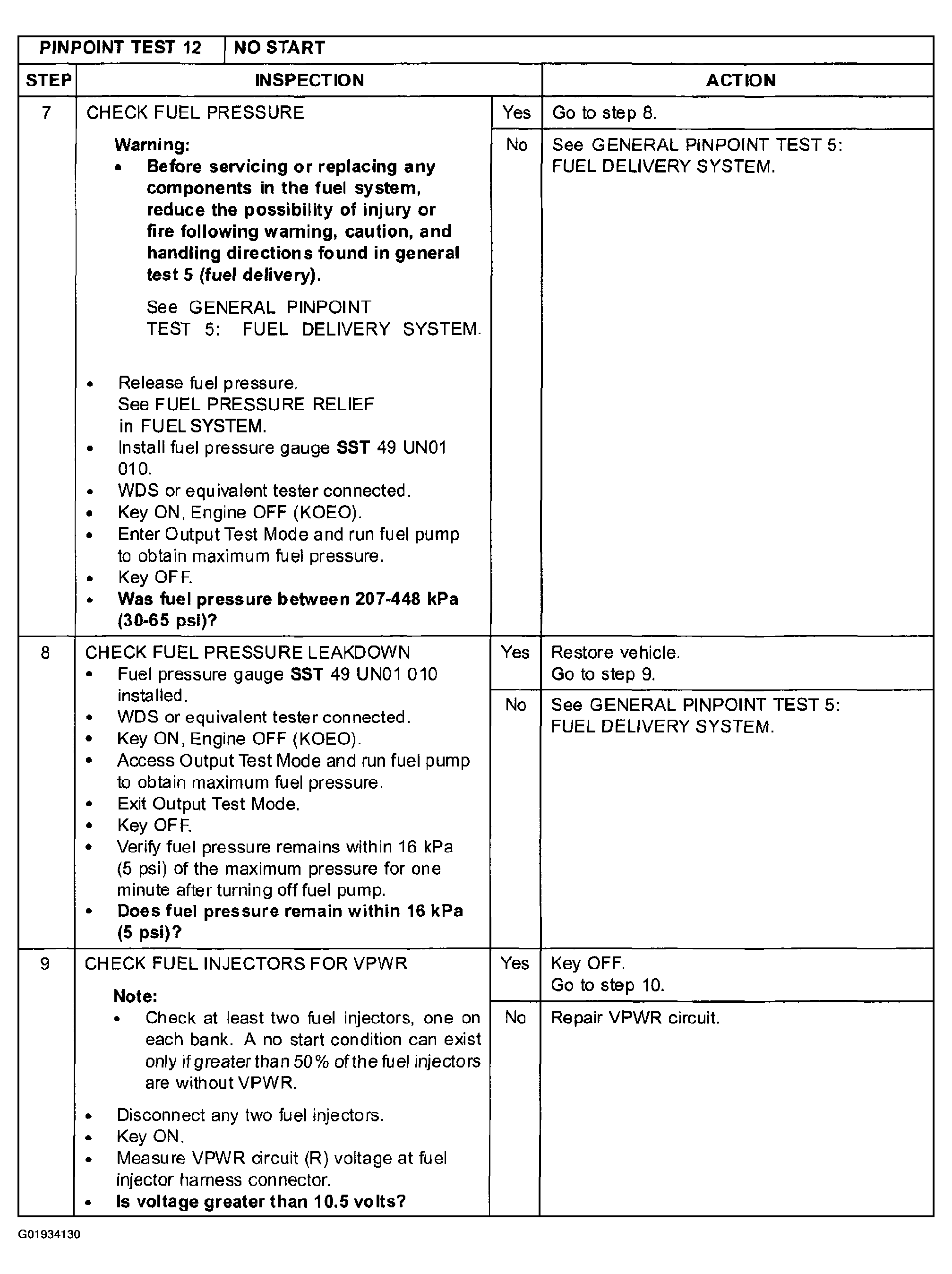

Fig 3: General Pinpoint Test 12: No Start (Steps 7-9)

Courtesy of MAZDA MOTORS CORP.

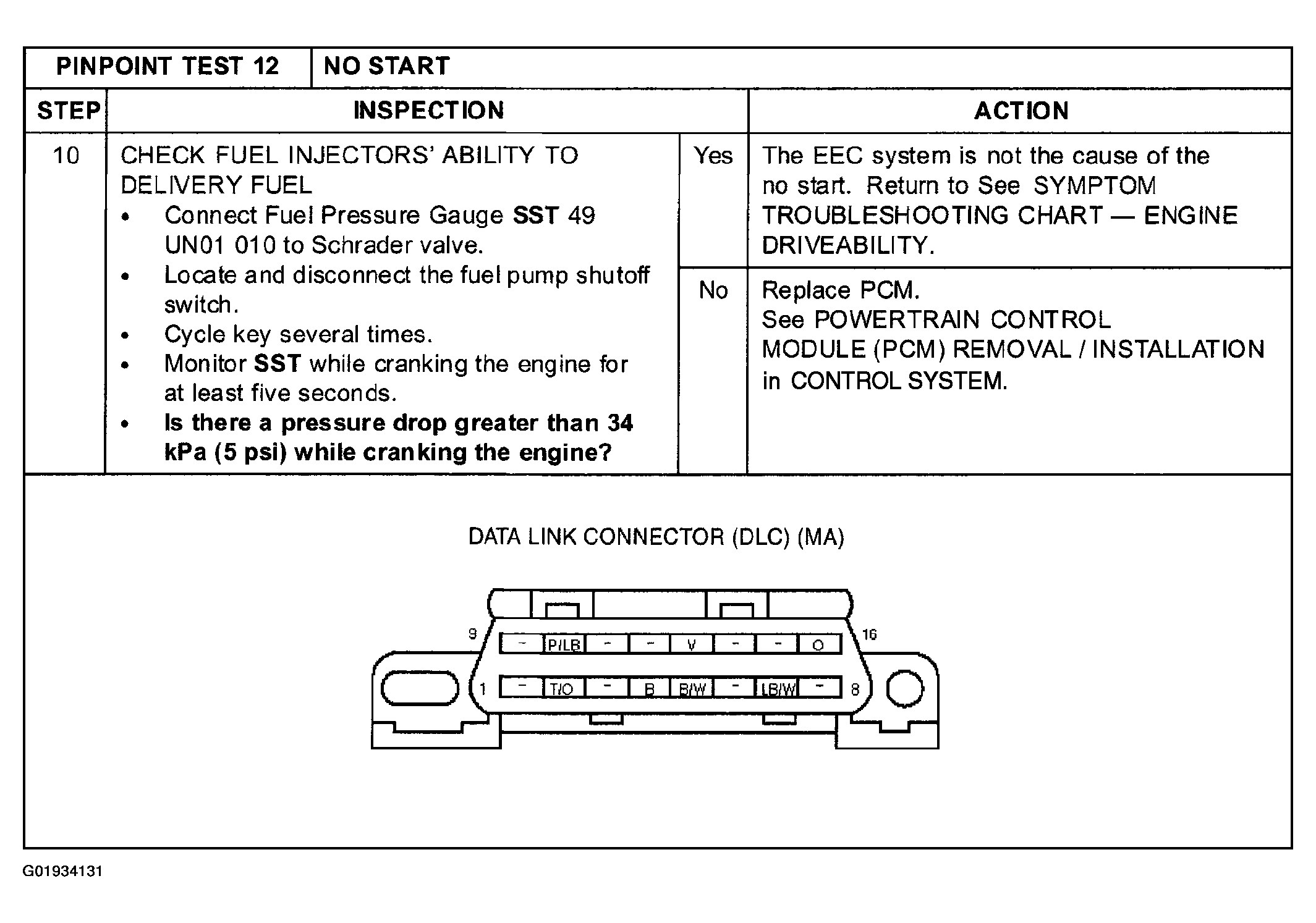

Fig 4: General Pinpoint Test 12: No Start (Step 10)

Courtesy of MAZDA MOTORS CORP.
