Cooling System Pinpoint Test 3: Engine Does Not Reach Normal Operating Temperature

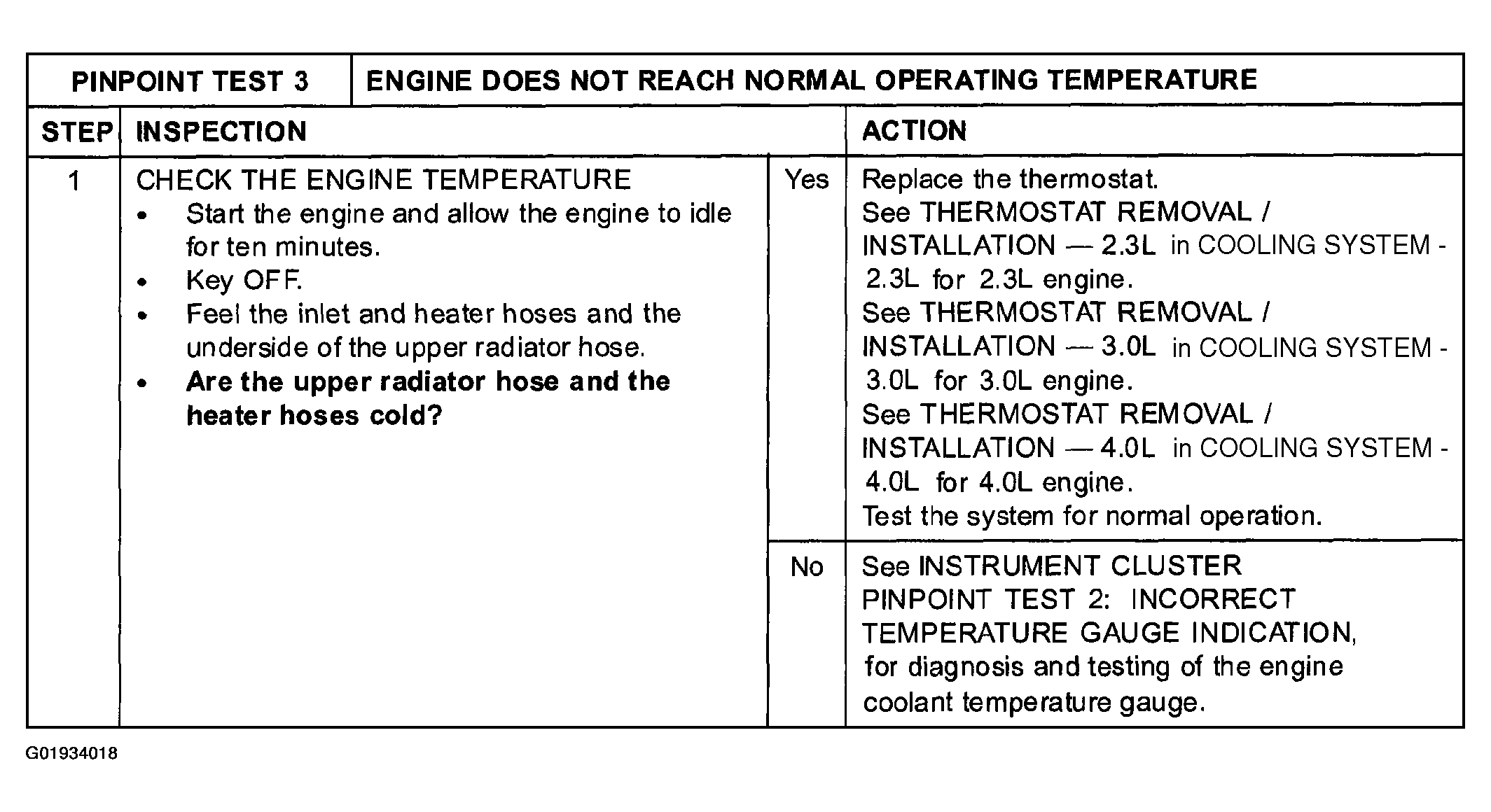

Fig 1: Cooling System Pinpoint Test 3: Engine Does Not Reach Normal Operating Temperature
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
