Symptom Troubleshooting Chart - Engine Cooling
>>
Engine Cooling
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Cooling

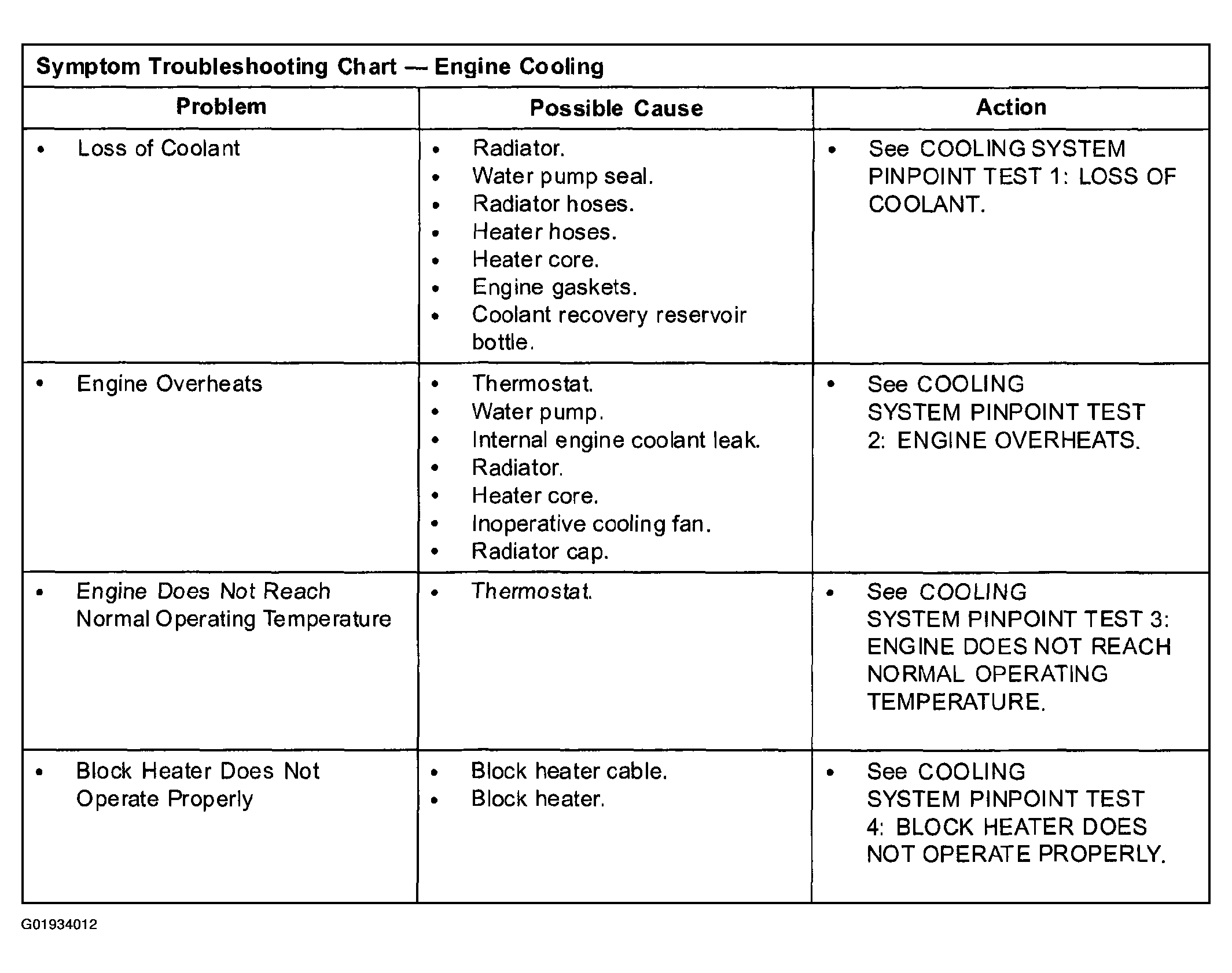

Fig 1: Symptom Troubleshooting Chart - Engine Cooling
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
