Automatic Transmission Shift Concerns

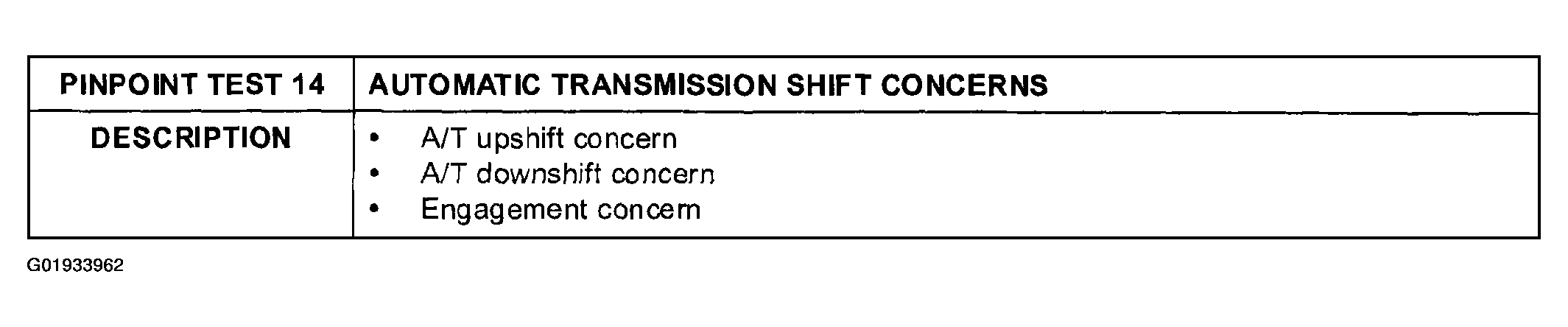

Fig 1: Pinpoint Test 14 - Automatic Transmission Shift Concerns Description
Courtesy of MAZDA MOTORS CORP.

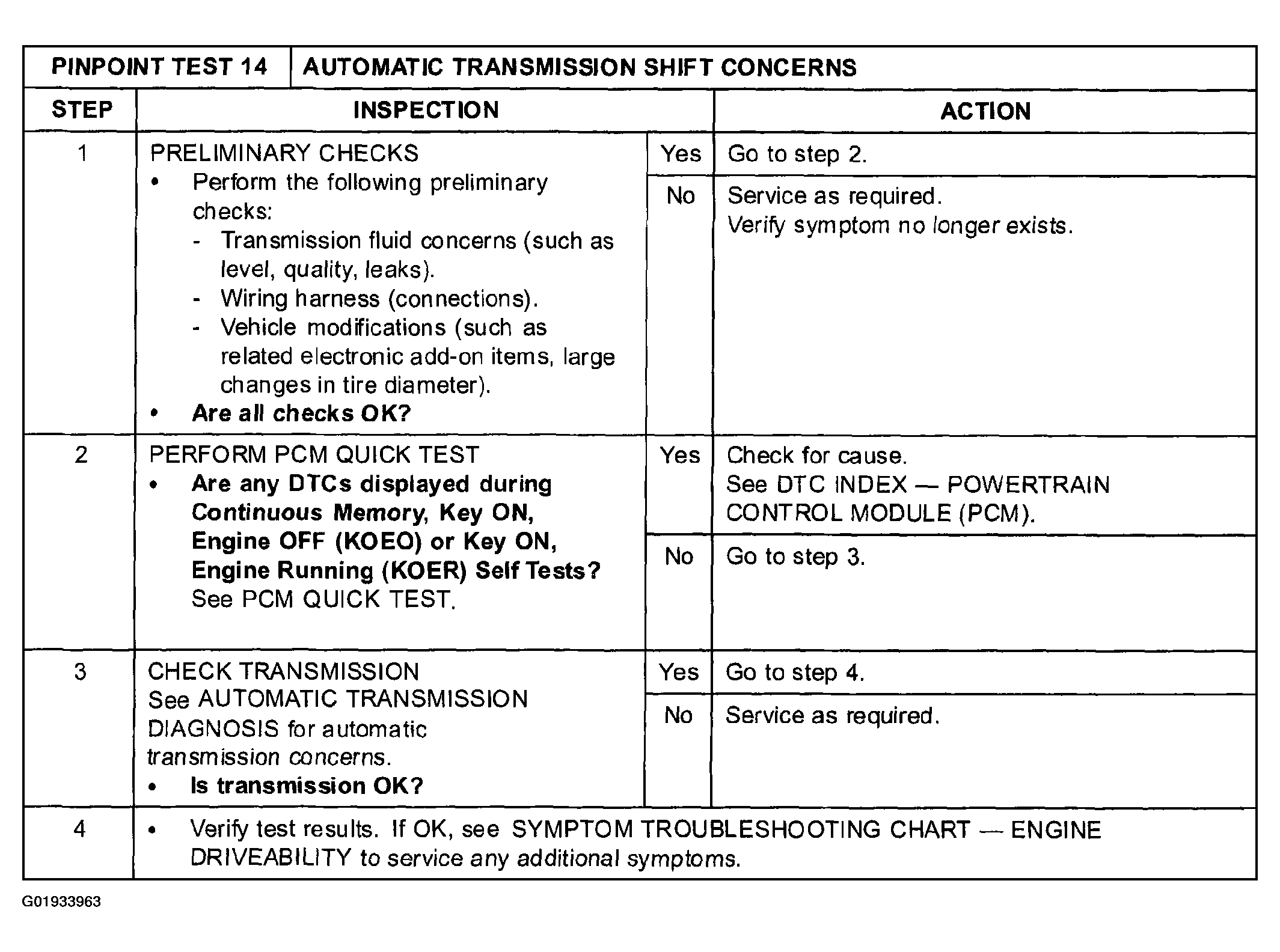

Fig 2: Pinpoint Test 14 - Automatic Transmission Shift Concerns (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
