Fuel Odor In Engine Compartment

Fig 1: Pinpoint Test 17 - Fuel Odor In Engine Compartment Description

Courtesy of MAZDA MOTORS CORP.

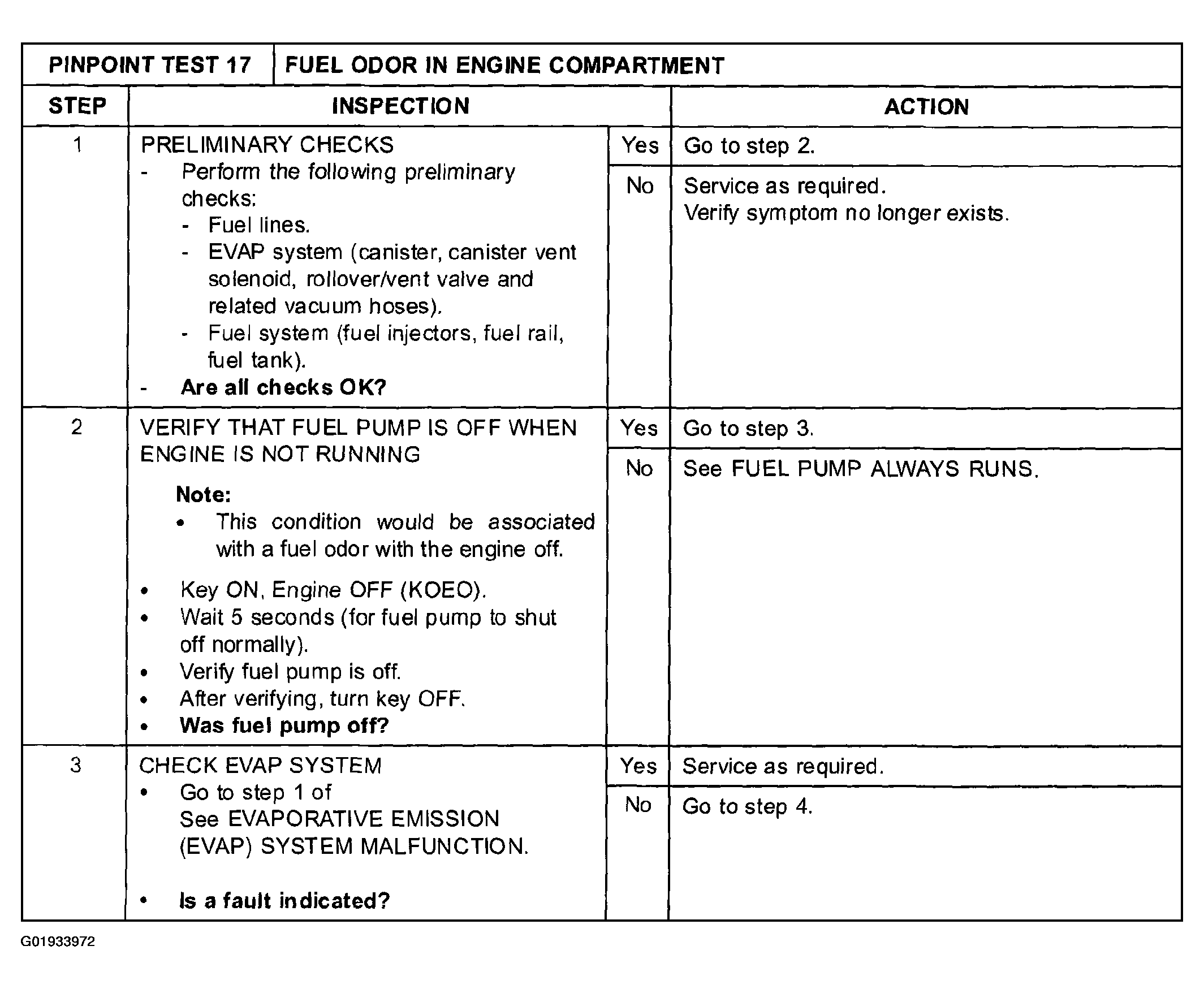

Fig 2: Pinpoint Test 17 - Fuel Odor In Engine Compartment (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

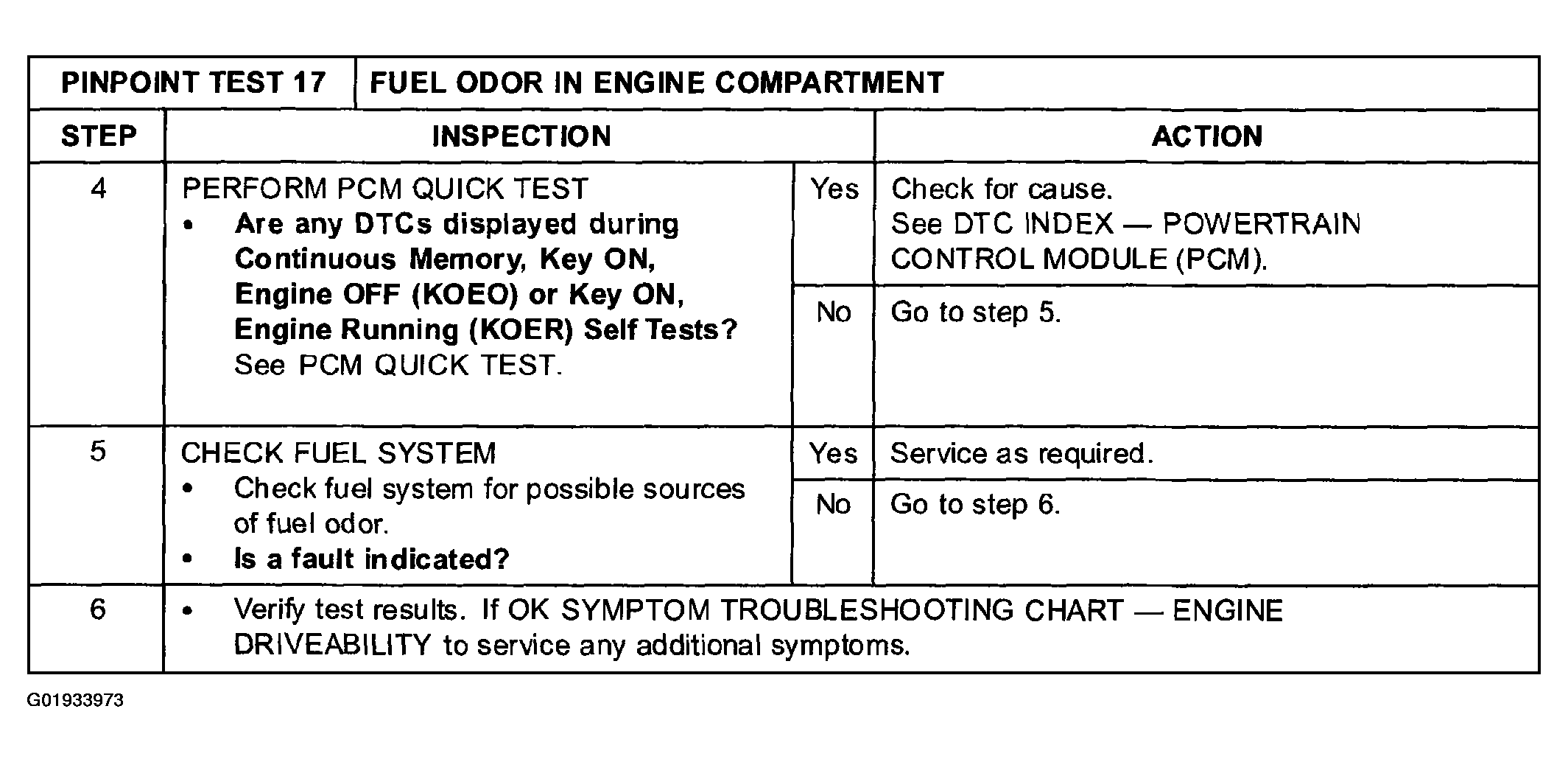

Fig 3: Pinpoint Test 17 - Fuel Odor In Engine Compartment (Steps 4-6)

Courtesy of MAZDA MOTORS CORP.
