Symptom Troubleshooting Chart Engine DRIVEABILITY: Instrumentation

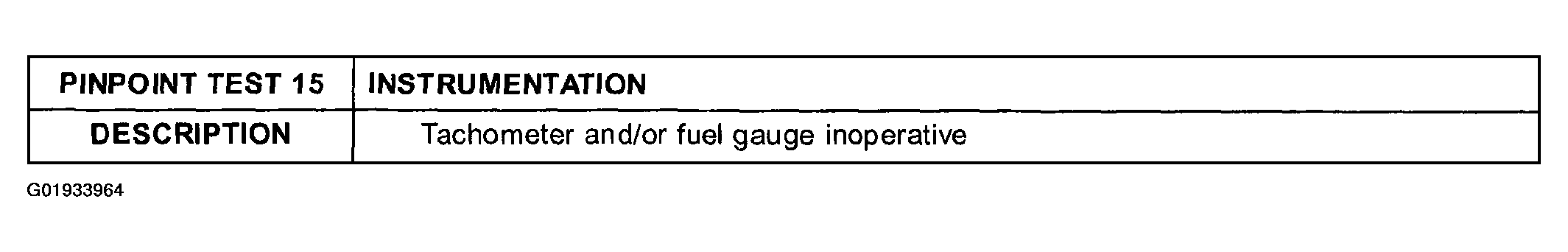

Fig 1: Pinpoint Test 15 - Instrumentation Description
G01933964Courtesy of MAZDA MOTORS CORP.

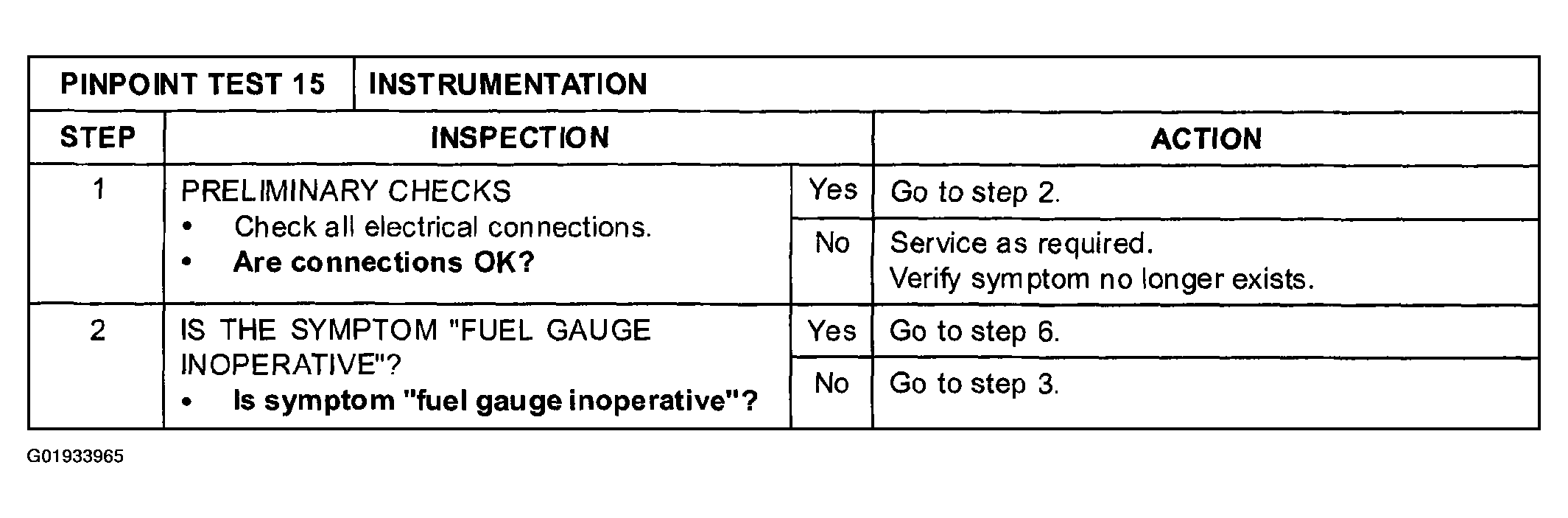

Fig 2: Pinpoint Test 15 - Instrumentation (Steps 1-2)
G01933965Courtesy of MAZDA MOTORS CORP.

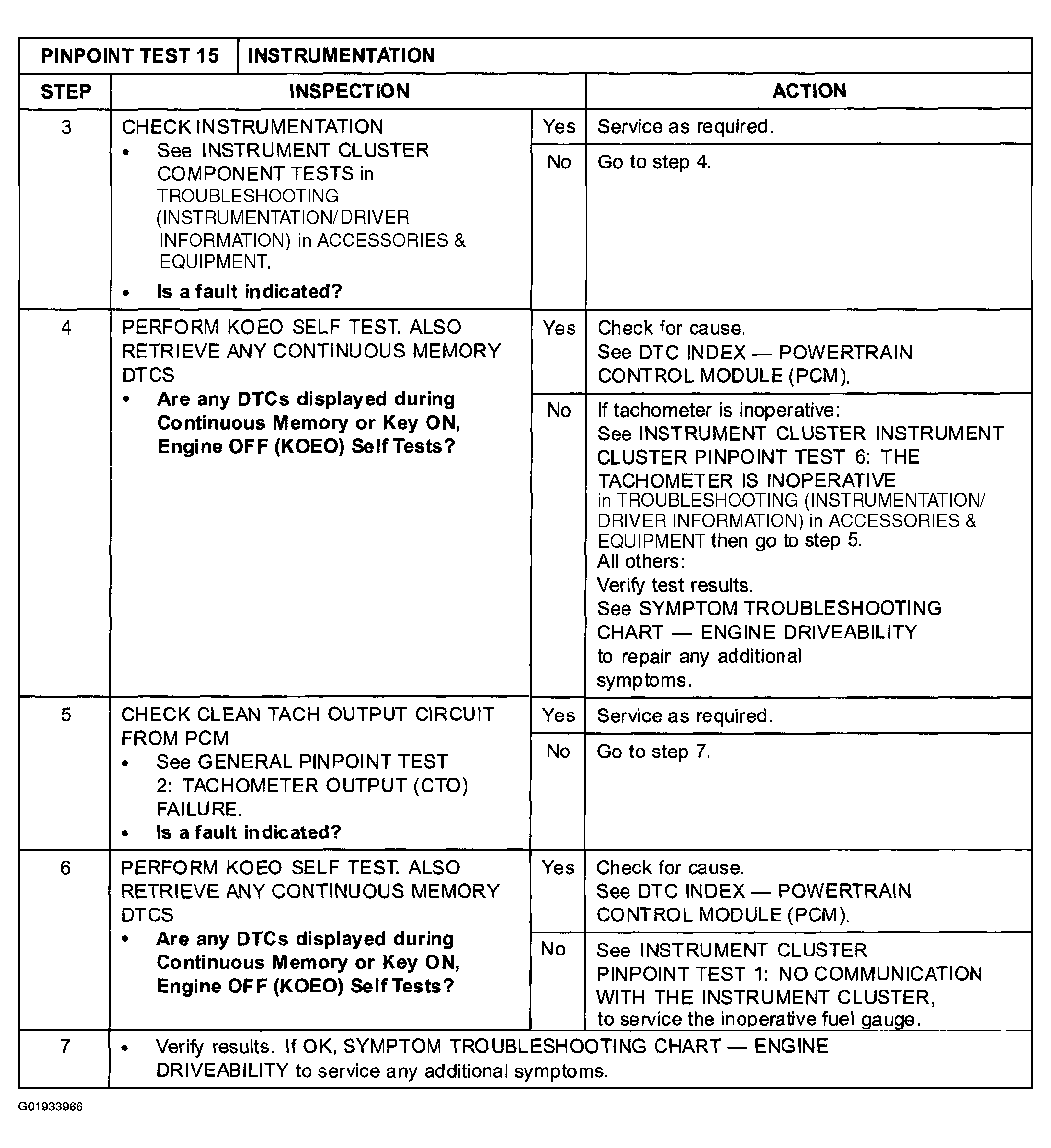

Fig 3: Pinpoint Test 15 - Instrumentation (Steps 3-7)
G01933966Courtesy of MAZDA MOTORS CORP.
