Lack/Loss Of Power

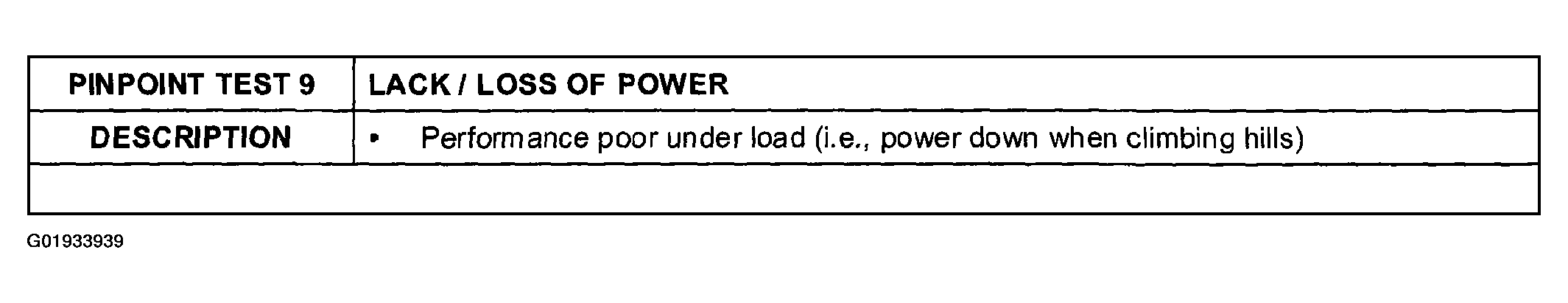

Fig 1: Pinpoint Test 9 - Lack/Loss Of Power Description

Courtesy of MAZDA MOTORS CORP.

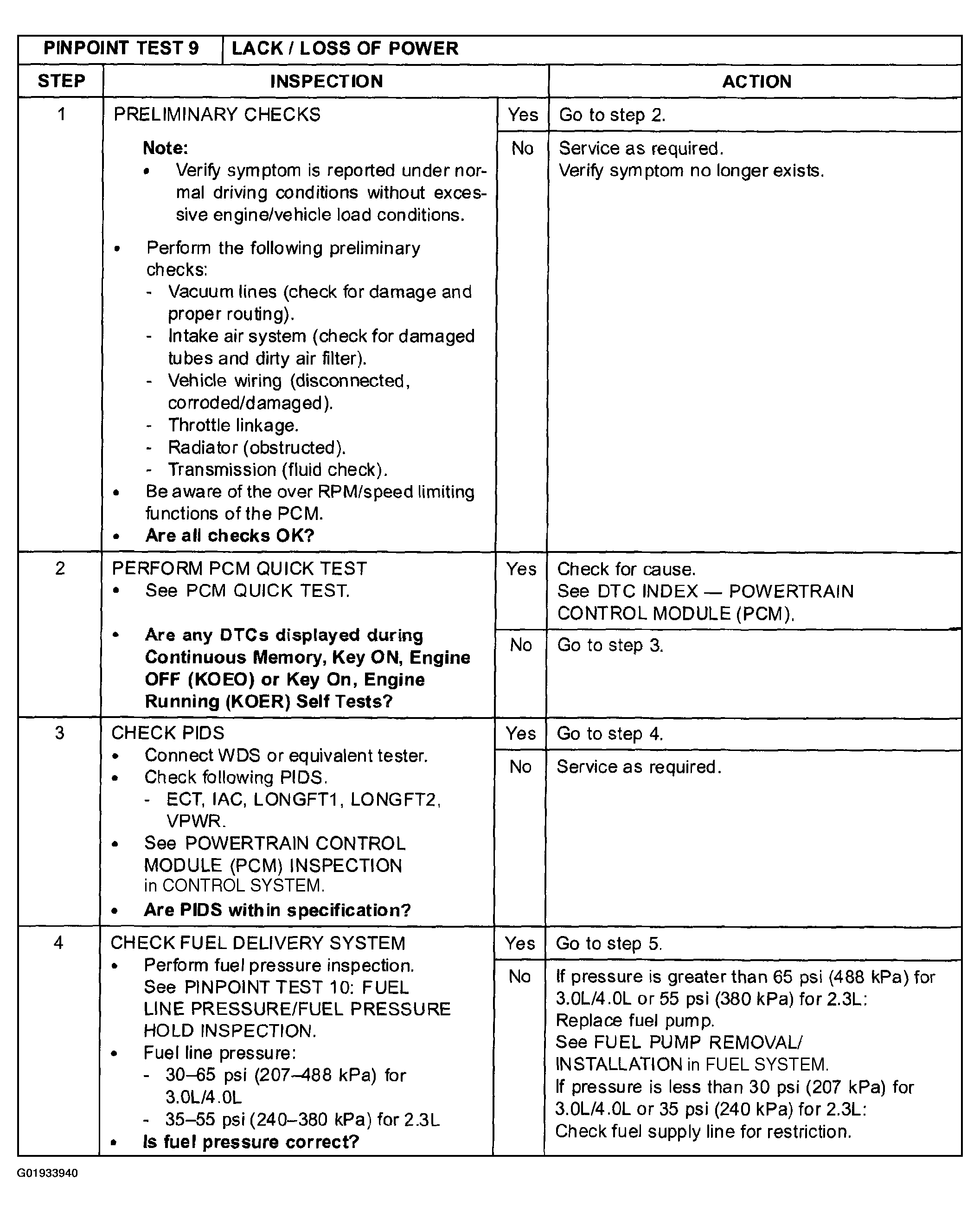

Fig 2: Pinpoint Test 9 - Lack/Loss Of Power (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

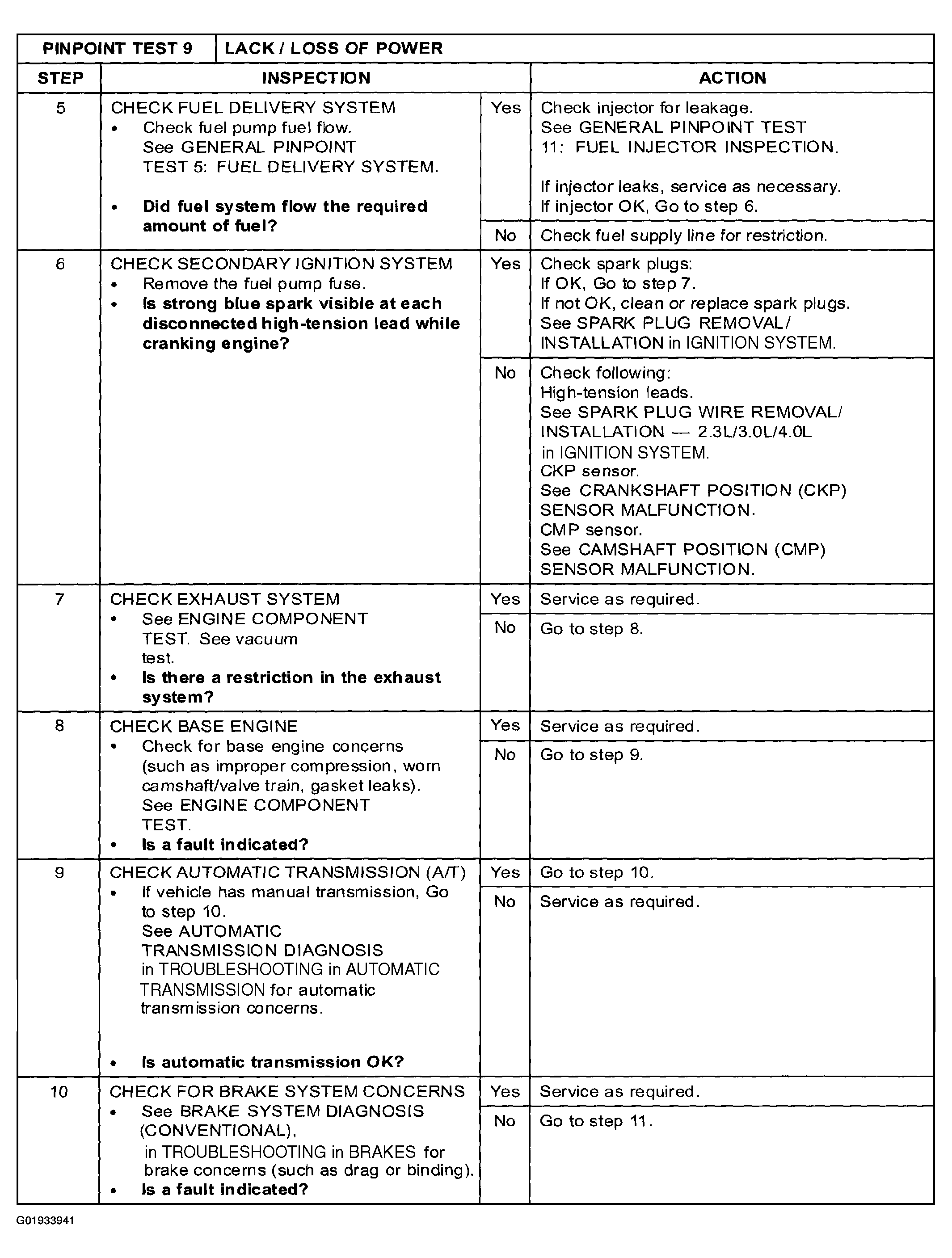

Fig 3: Pinpoint Test 9 - Lack/Loss Of Power (Steps 5-10)

Courtesy of MAZDA MOTORS CORP.

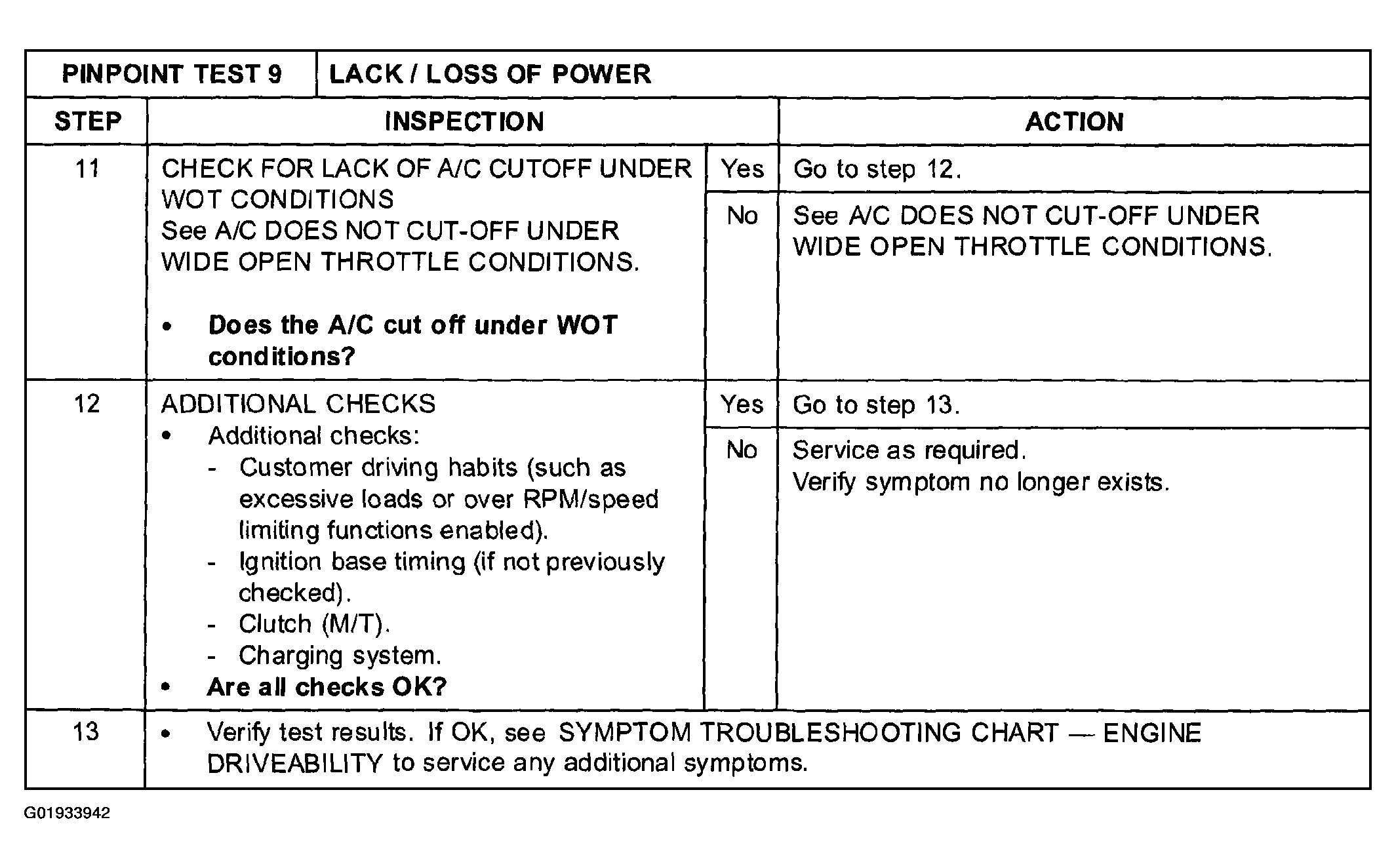

Fig 4: Pinpoint Test 9 - Lack/Loss Of Power (Steps 11-13)

Courtesy of MAZDA MOTORS CORP.
