Connector Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

After connecting the connector, verify that the lock lever is completely pushed in.

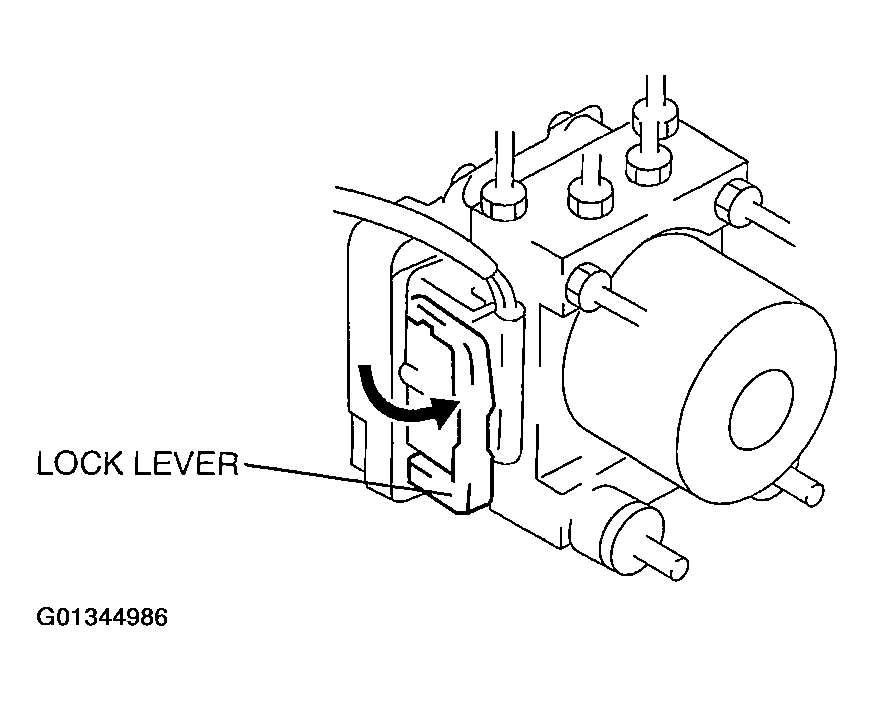

Fig 1: Locating Lock Lever Installation Direction
Courtesy of MAZDA MOTORS CORP.
