Abs HU/Cm Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.
- Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR .)

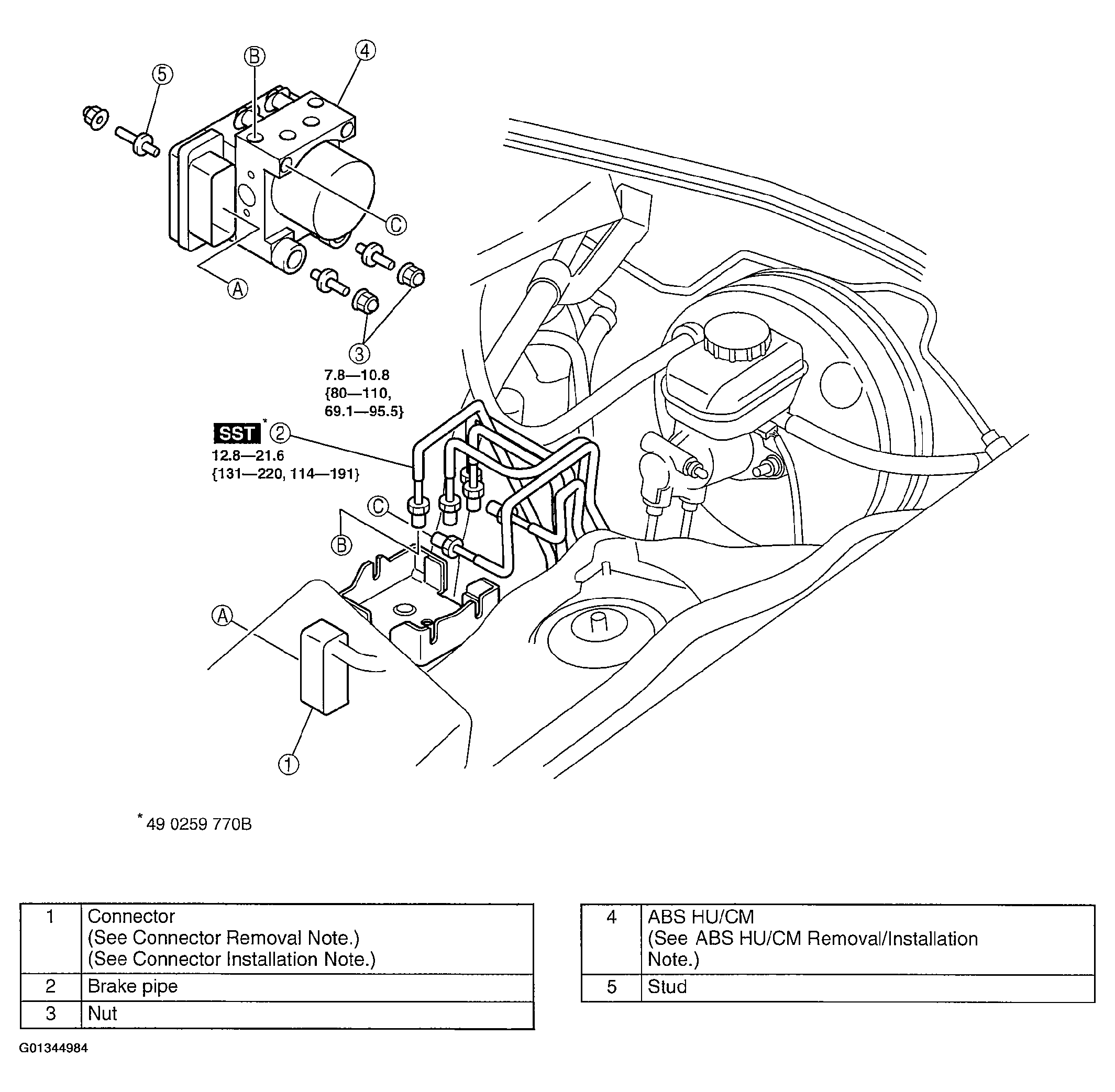

- Remove in the order indicated. See Fig 1.
- Install in the reverse order of removal.
