Front Abs Wheel-Speed Sensor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If there is any malfunction in the front ABS wheel-speed sensor unit, replace the wheel hub component. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION .)

Remove the mudguard.
Remove in the order indicated. See Fig 1.
Install in the reverse order of removal.

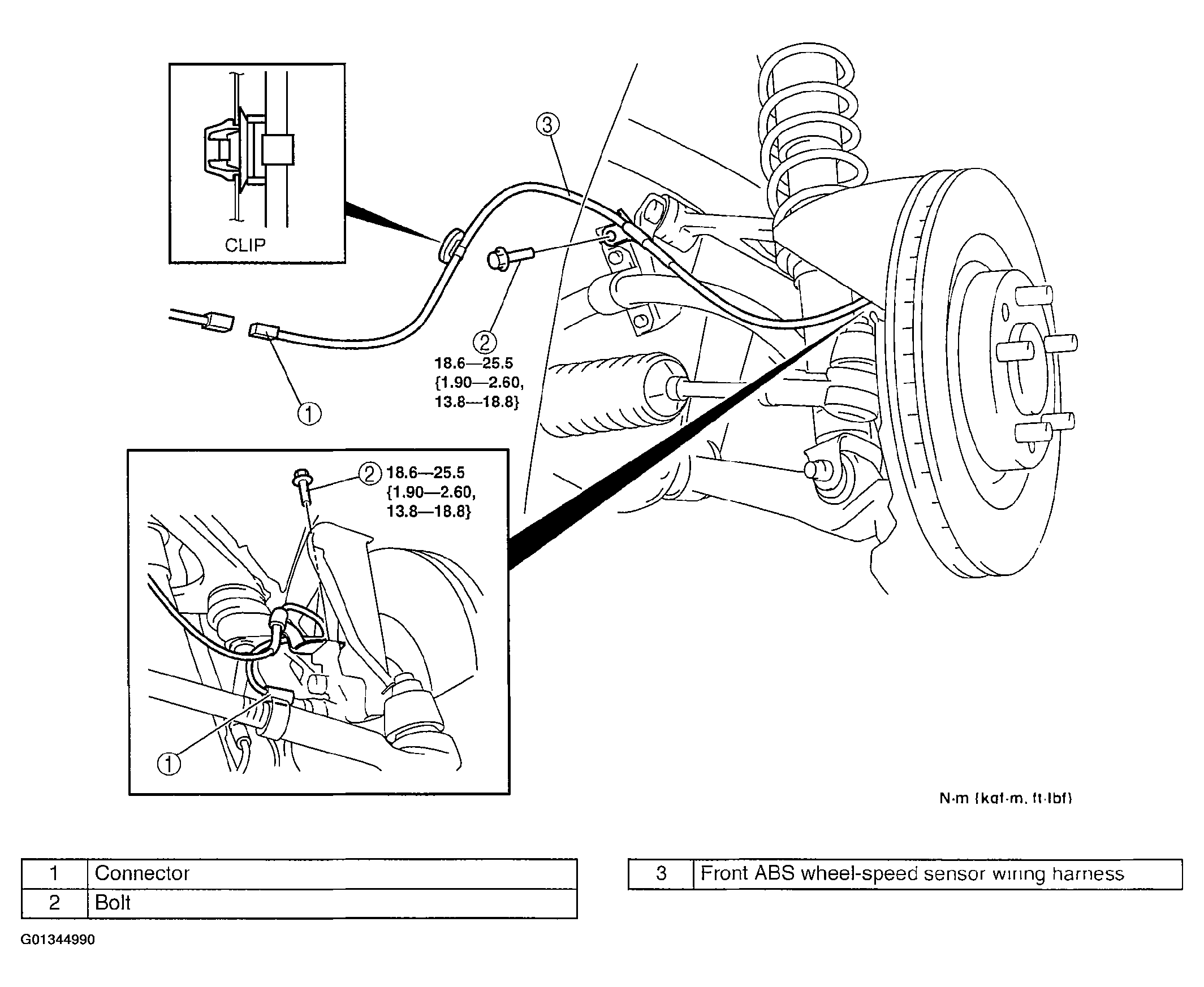

Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor
Courtesy of MAZDA MOTORS CORP.
