Rear Abs Wheel-Speed Sensor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk side trim.
Remove in the order indicated. See Fig 1.

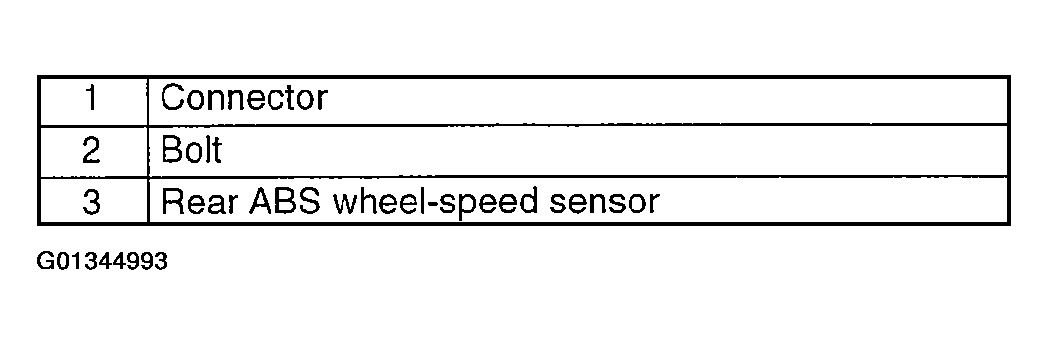

Fig 1: Removing/Installing Sequence Order Of Rear ABS Wheel-Speed Sensor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

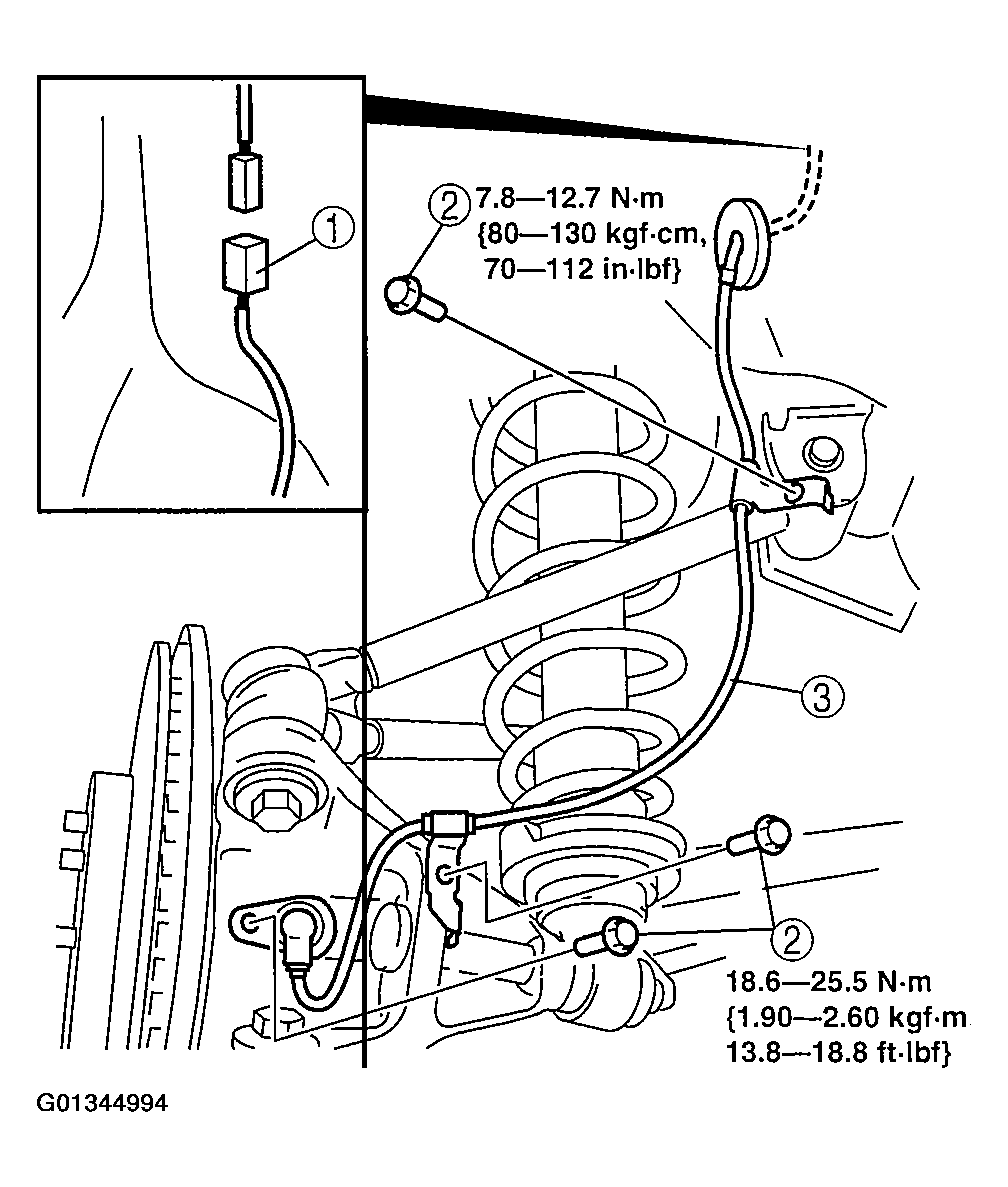

Fig 2: Removing/Installing Rear ABS Wheel-Speed Sensor
Courtesy of MAZDA MOTORS CORP.
