MISFIRE FREEZE-FRAME PIDs

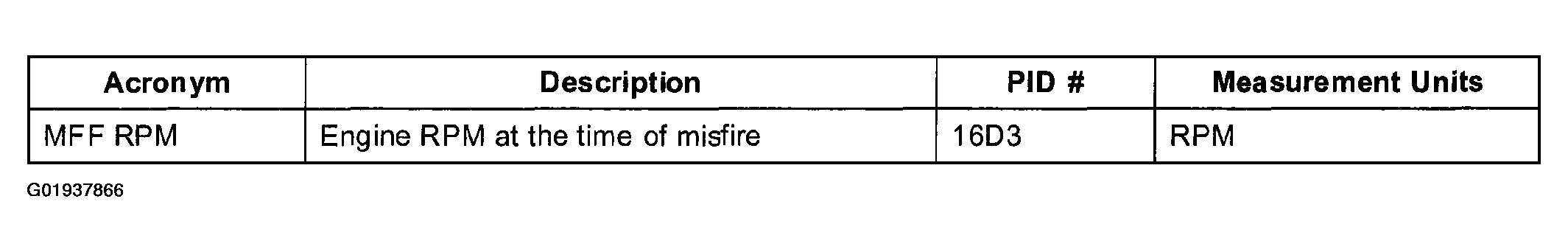

Fig 1: Misfire Freeze-Frame PIDs (1 Of 2)
G01937866Courtesy of MAZDA MOTORS CORP.

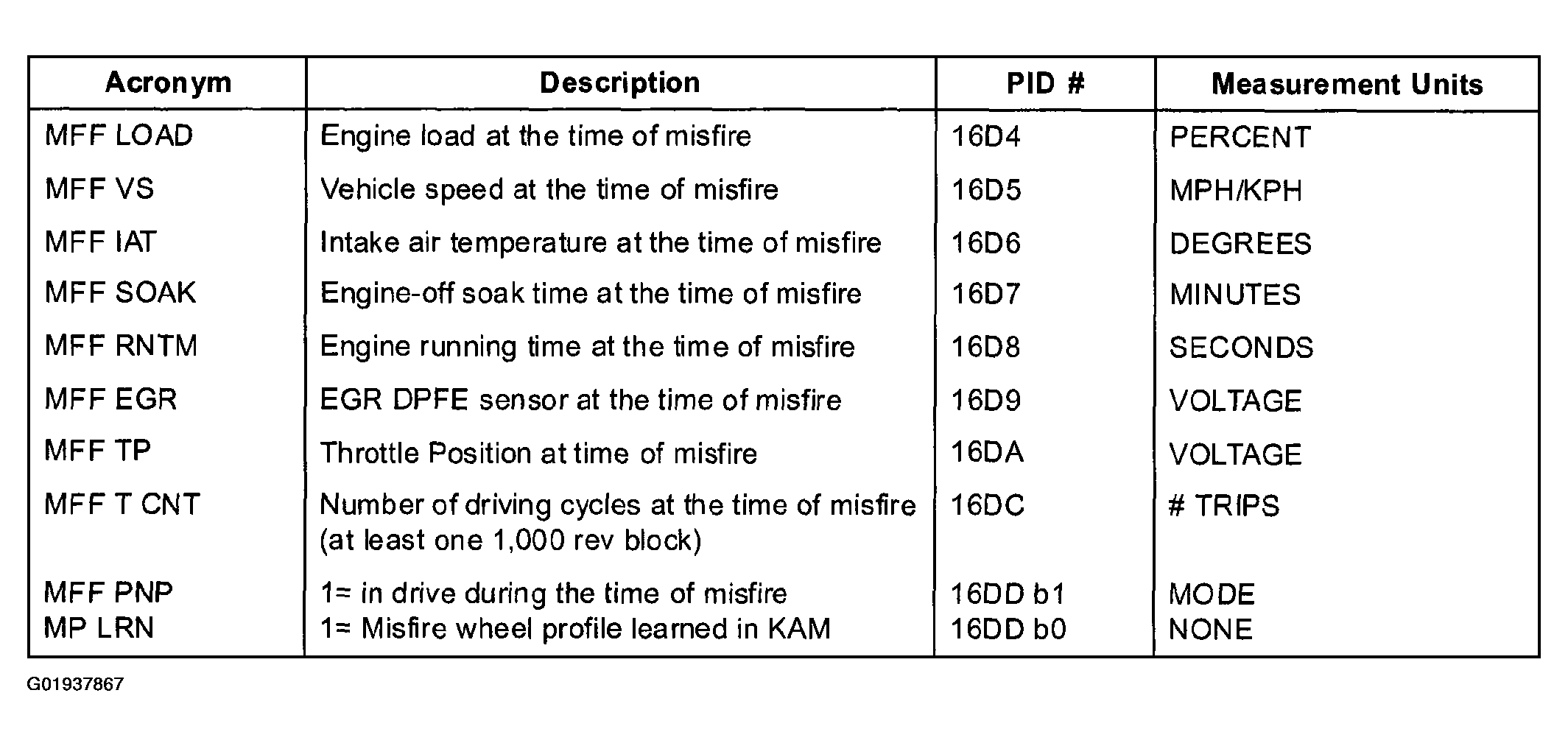

Fig 2: Misfire Freeze-Frame PIDs (2 Of 2)
G01937867Courtesy of MAZDA MOTORS CORP.
