General Pinpoint Test 4: Intermittent

WARNING:

When performing any of the test steps, always be aware of hands, clothing or tools near cooling fans or hot surfaces.

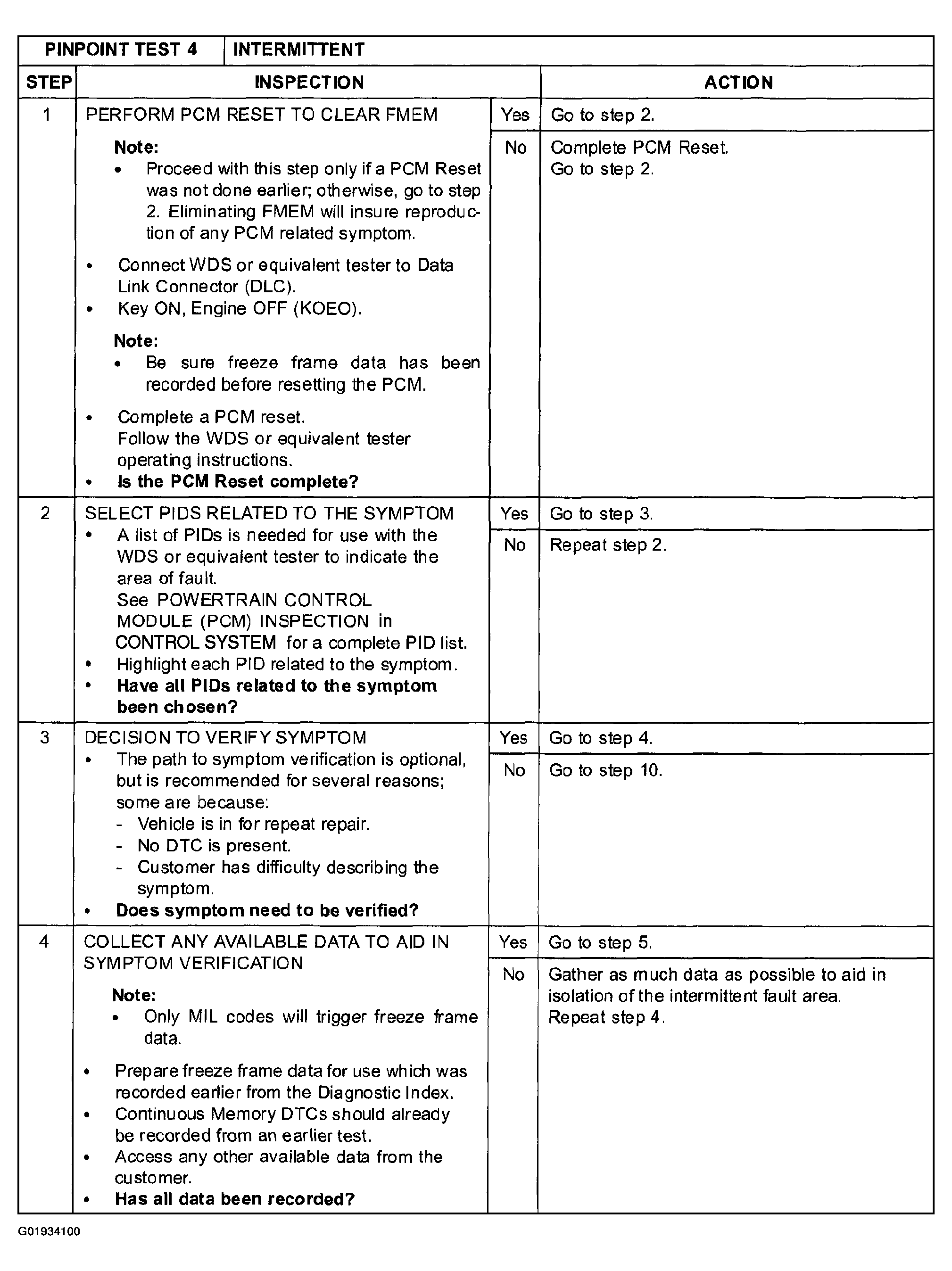

Fig 1: General Pinpoint Test 4: Intermittent (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

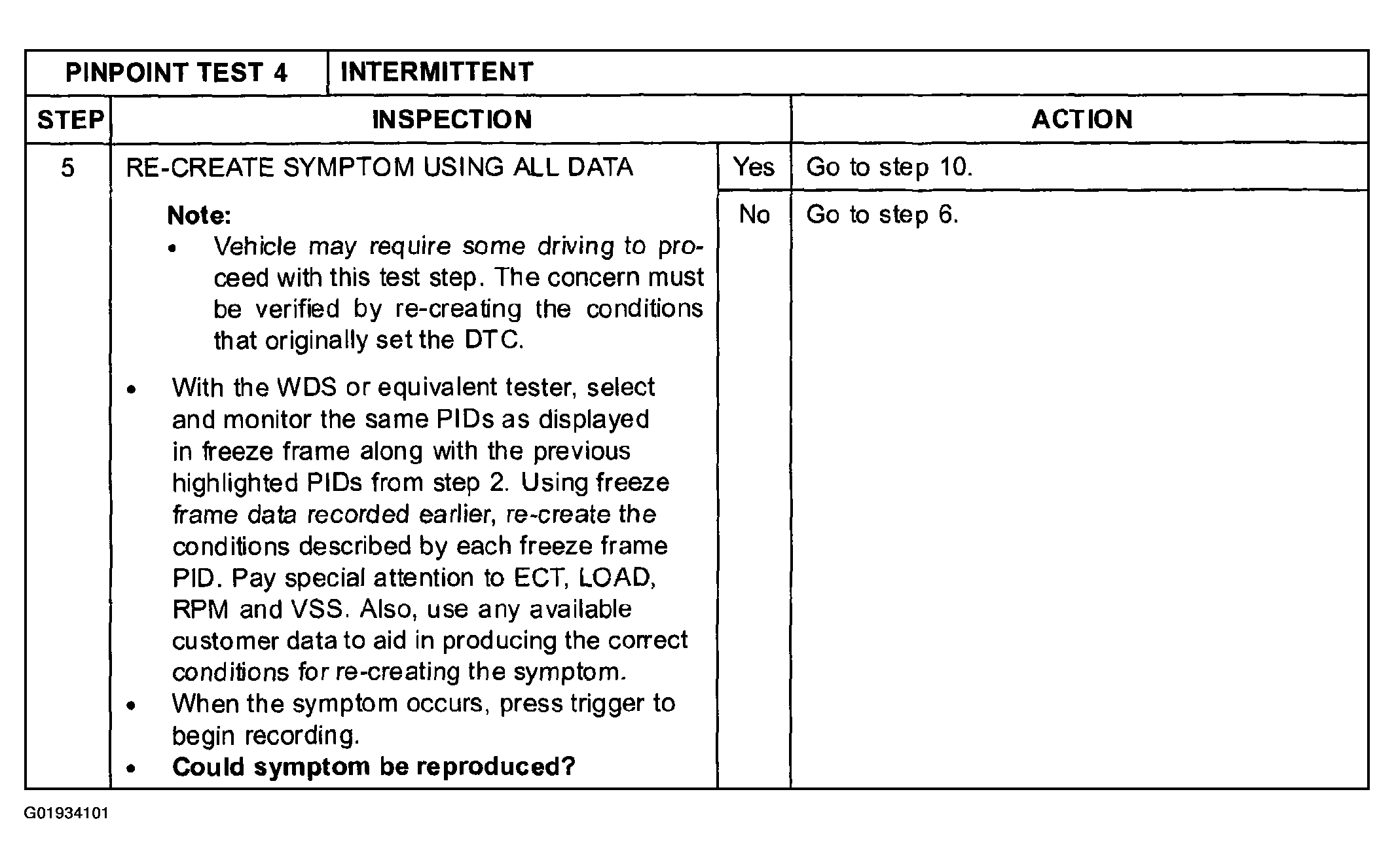

Fig 2: General Pinpoint Test 4: Intermittent (Step 5)

Courtesy of MAZDA MOTORS CORP.

Fig 3: General Pinpoint Test 4: Intermittent (Step 6)

Courtesy of MAZDA MOTORS CORP.

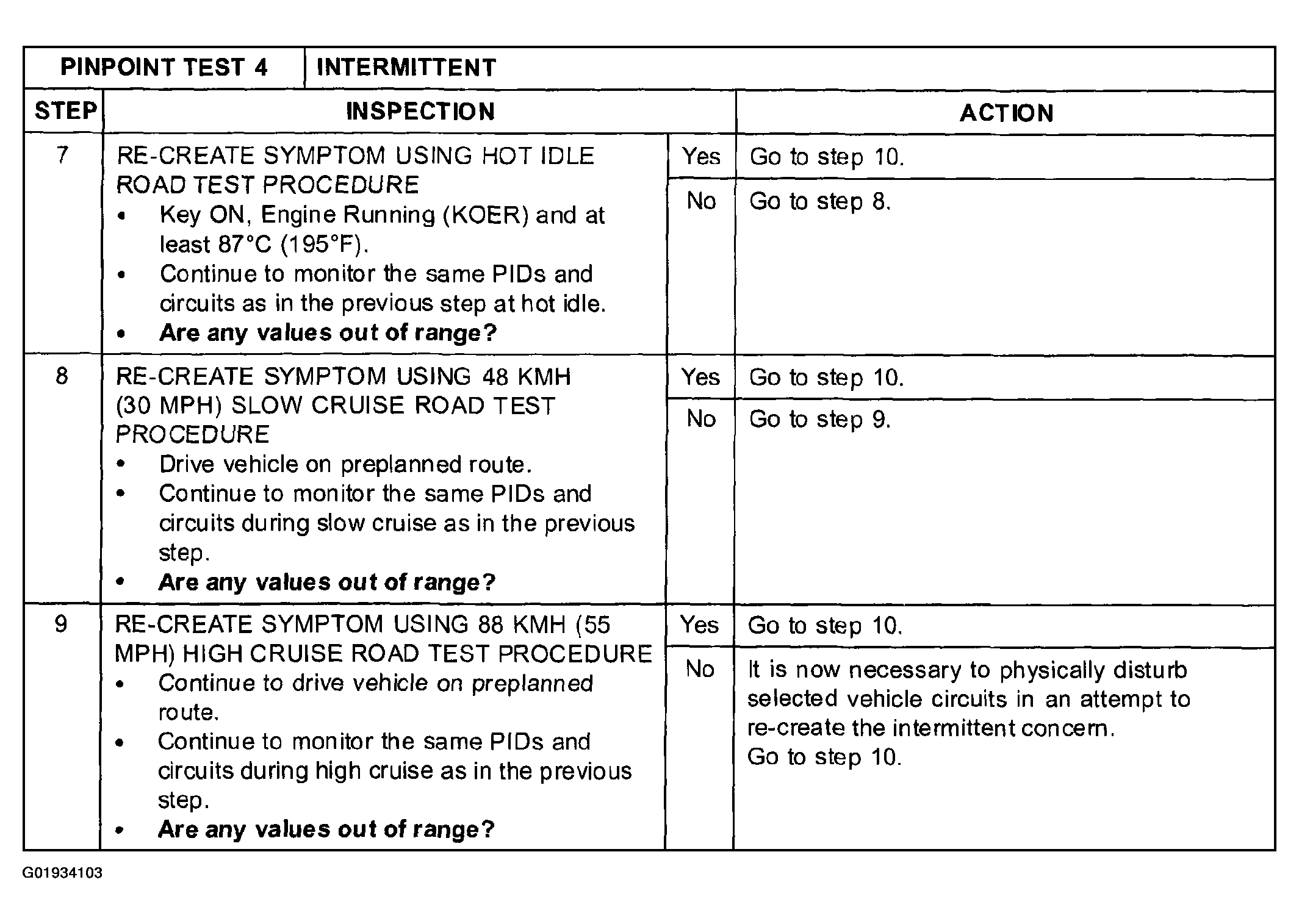

Fig 4: General Pinpoint Test 4: Intermittent (Steps 7-9)

Courtesy of MAZDA MOTORS CORP.

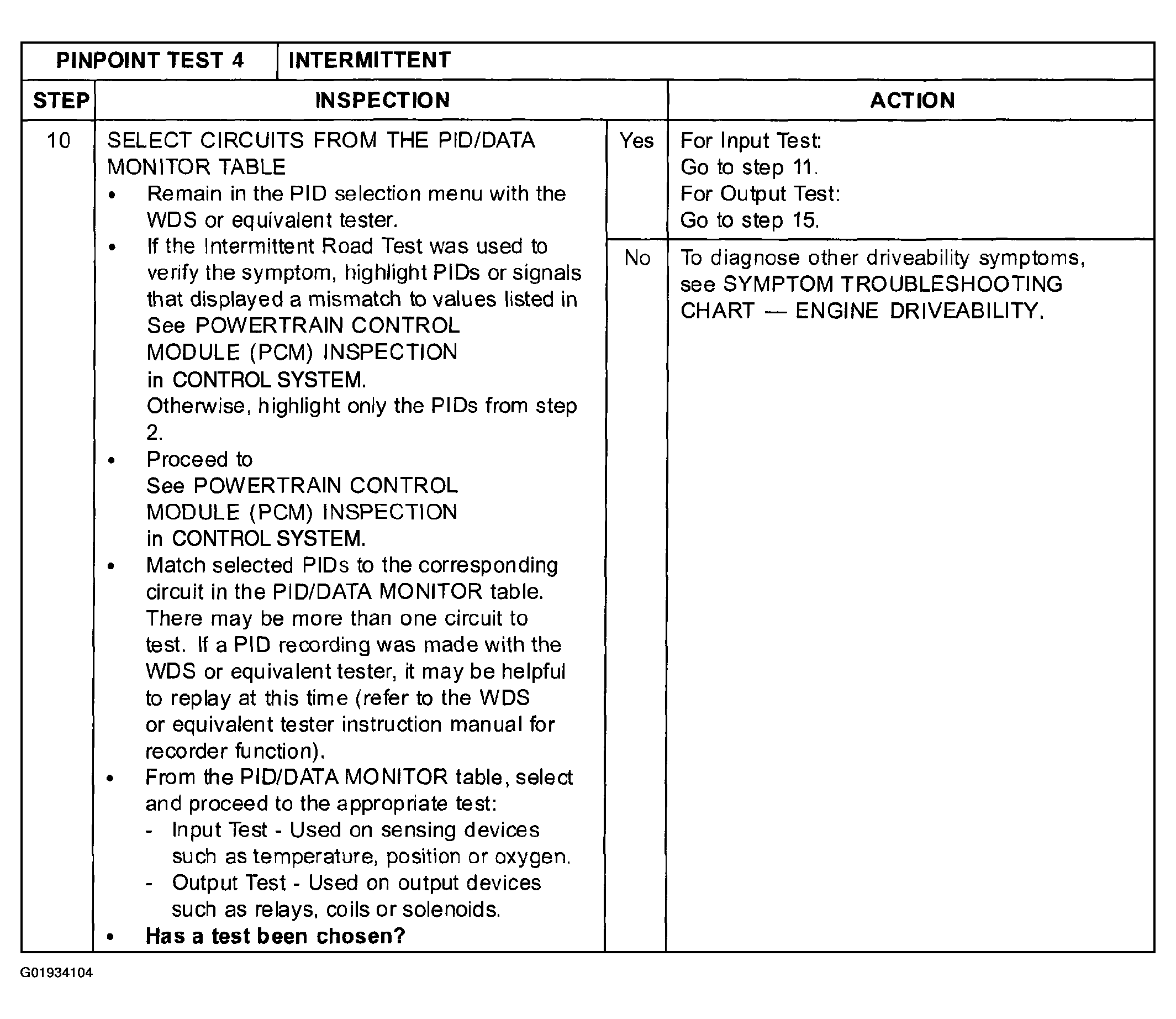

Fig 5: General Pinpoint Test 4: Intermittent (Step 10)

Courtesy of MAZDA MOTORS CORP.

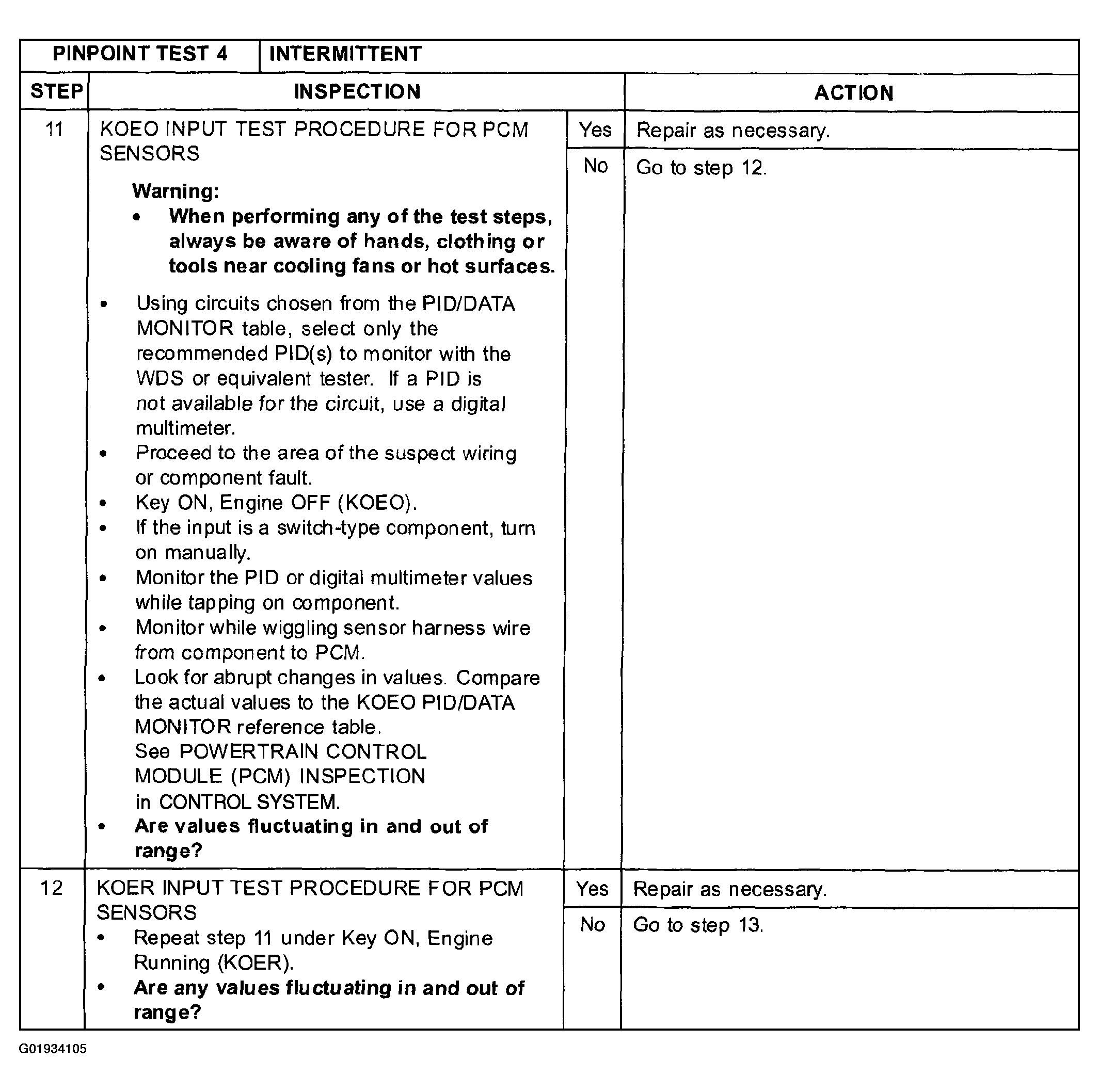

Fig 6: General Pinpoint Test 4: Intermittent (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.

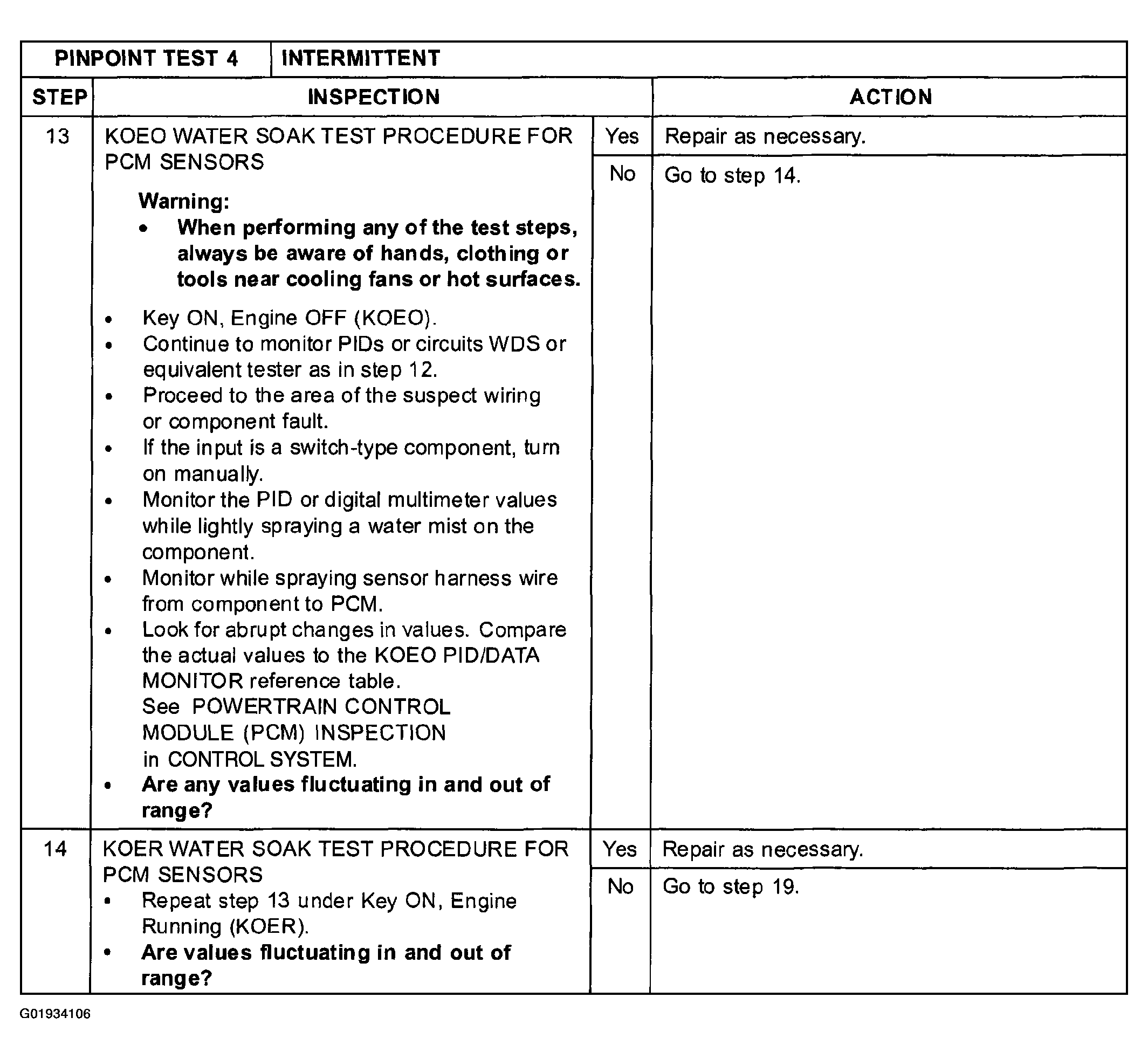

Fig 7: General Pinpoint Test 4: Intermittent (Steps 13-14)

Courtesy of MAZDA MOTORS CORP.

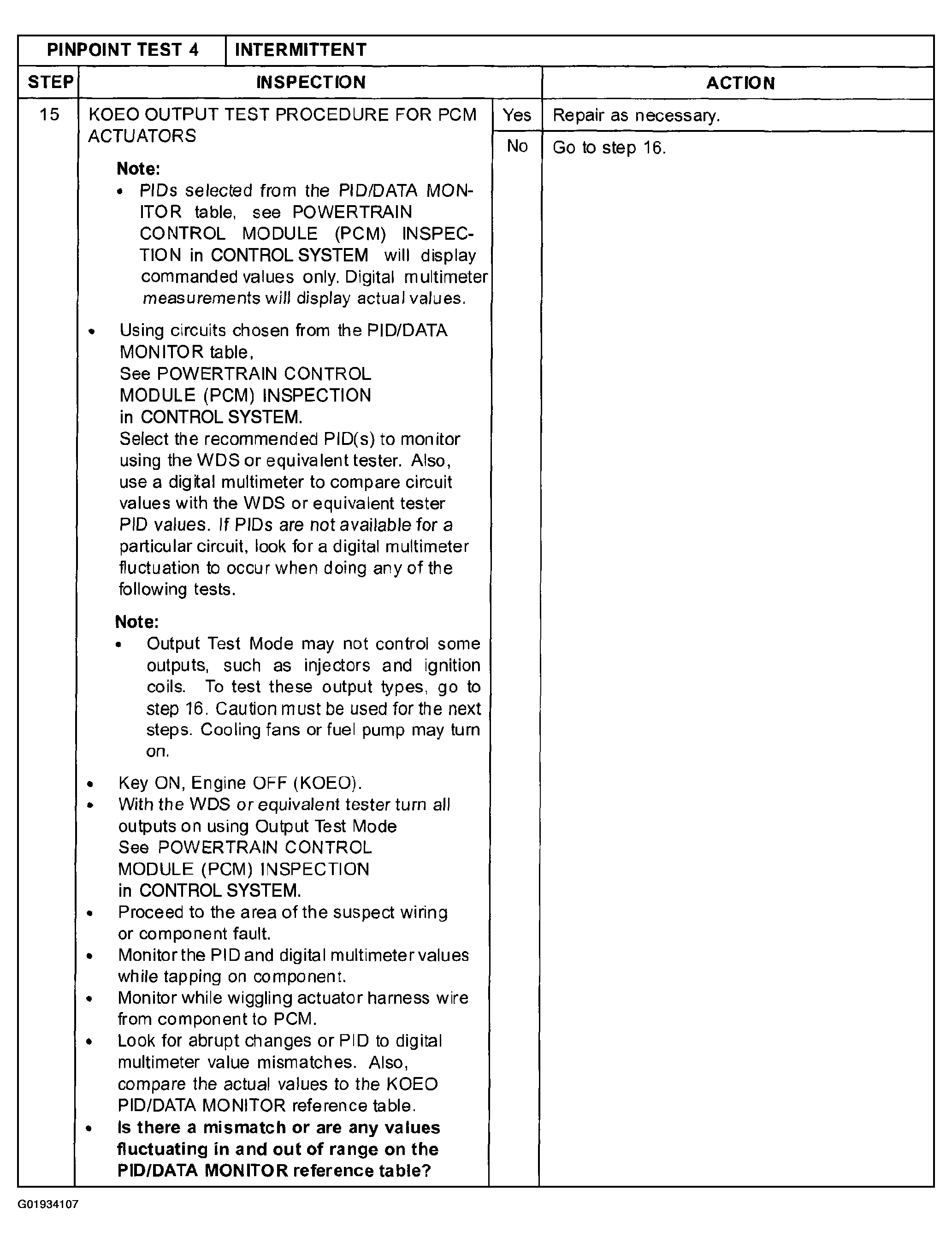

Fig 8: General Pinpoint Test 4: Intermittent (Step 15)

Courtesy of MAZDA MOTORS CORP.

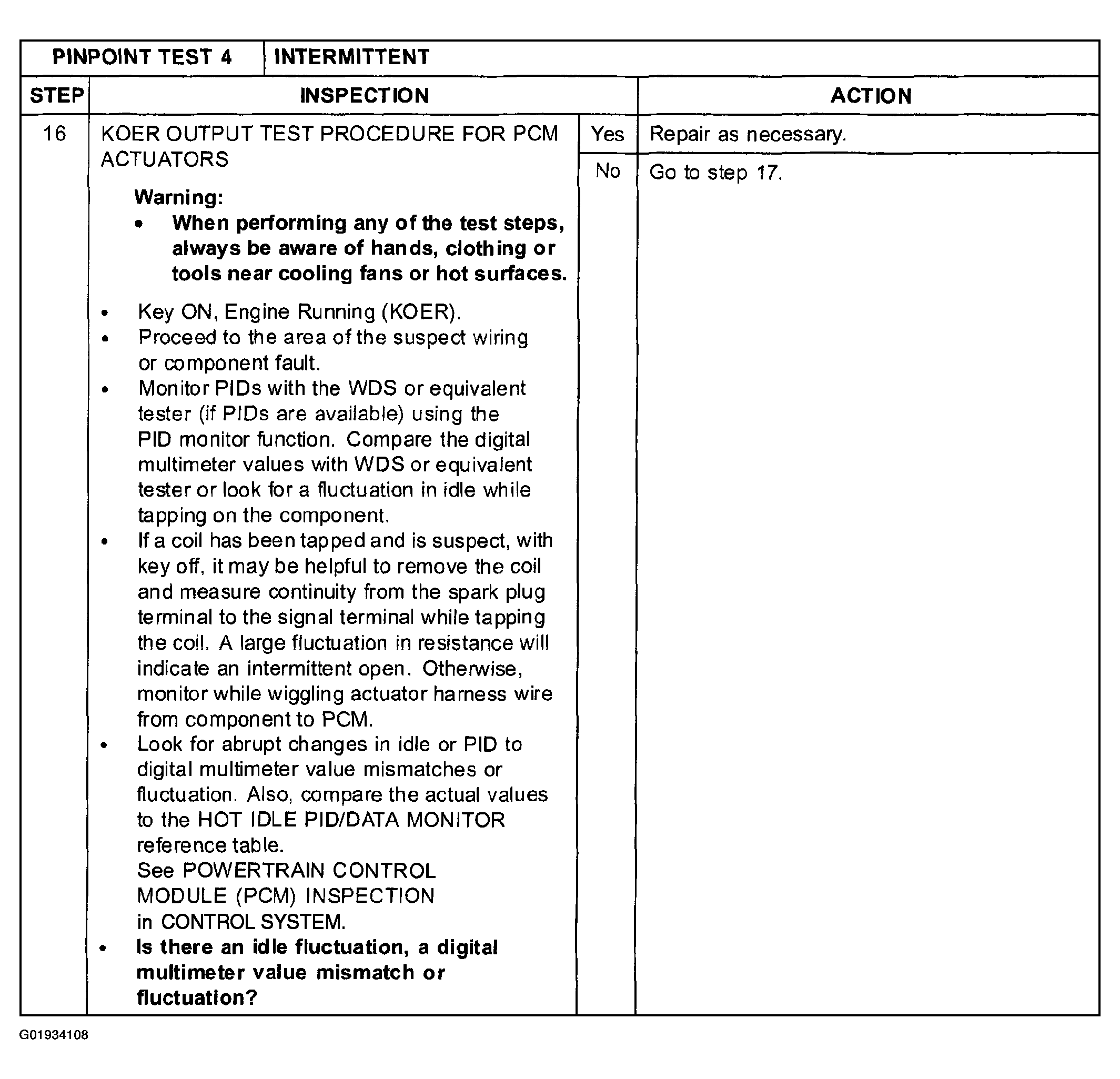

Fig 9: General Pinpoint Test 4: Intermittent (Step 16)

Courtesy of MAZDA MOTORS CORP.

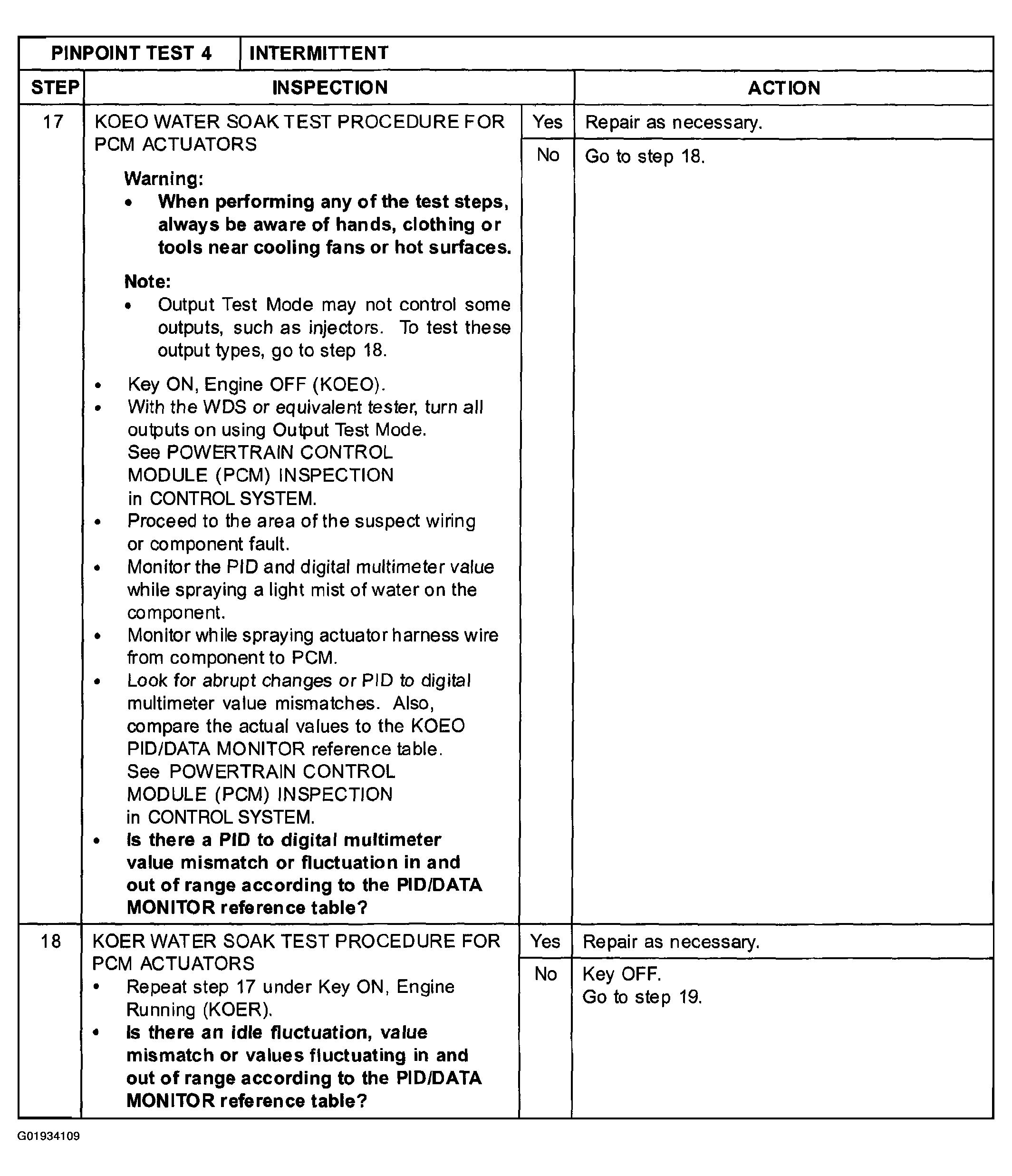

Fig 10: General Pinpoint Test 4: Intermittent (Steps 17-18)

Courtesy of MAZDA MOTORS CORP.

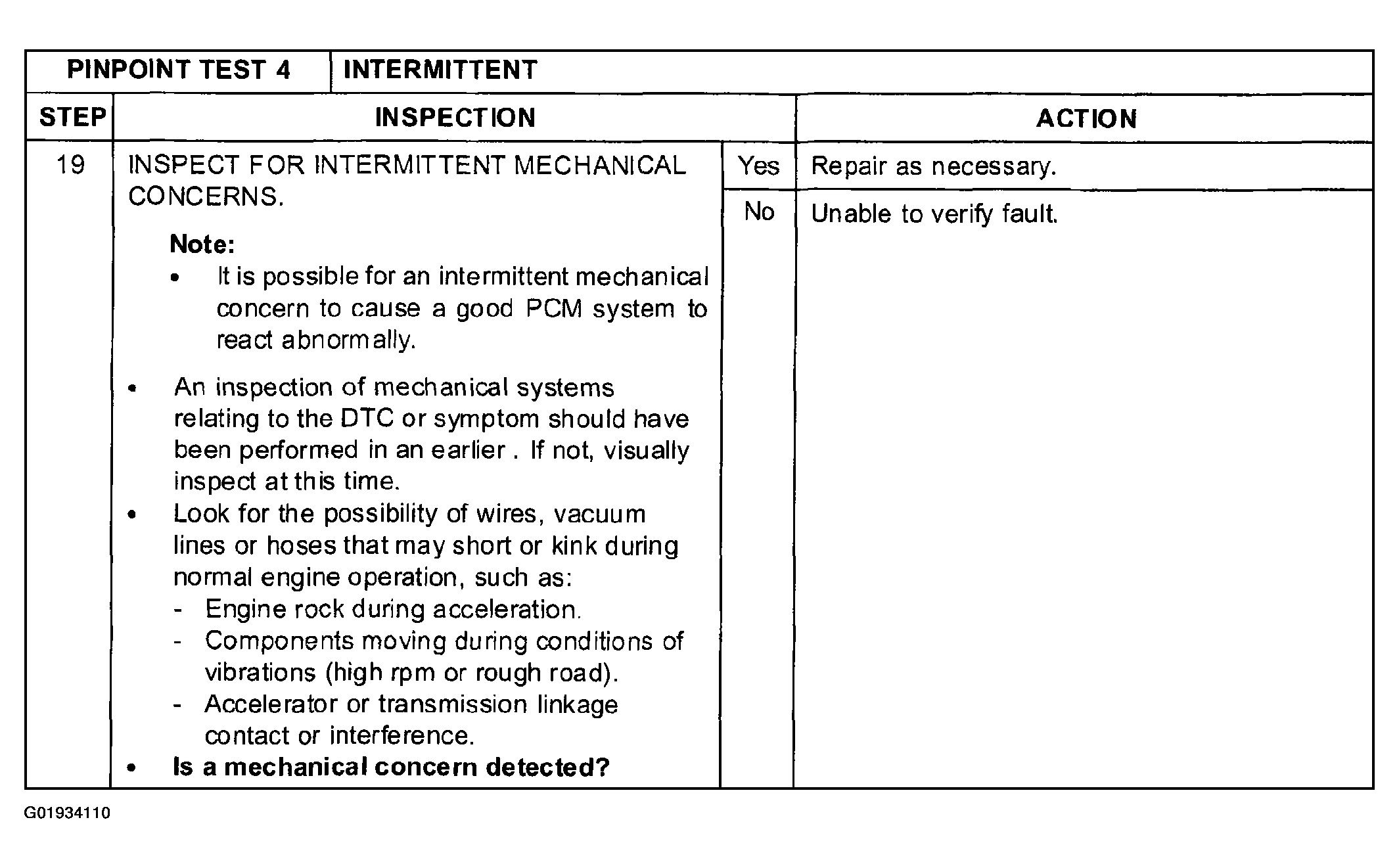

Fig 11: General Pinpoint Test 4: Intermittent (Step 19)

Courtesy of MAZDA MOTORS CORP.
