Ignition Coil Bracket Removal/Installation

Remove the ignition coil from the bracket. See IGNITION COIL PACK REMOVAL/INSTALLATION - 3.0L .
Remove the nut.

Fig 1: Removing Ignition Coil Bracket Nut
Courtesy of MAZDA MOTORS CORP.
Remove the nut and position the EGR vacuum regulator solenoid out of the way.

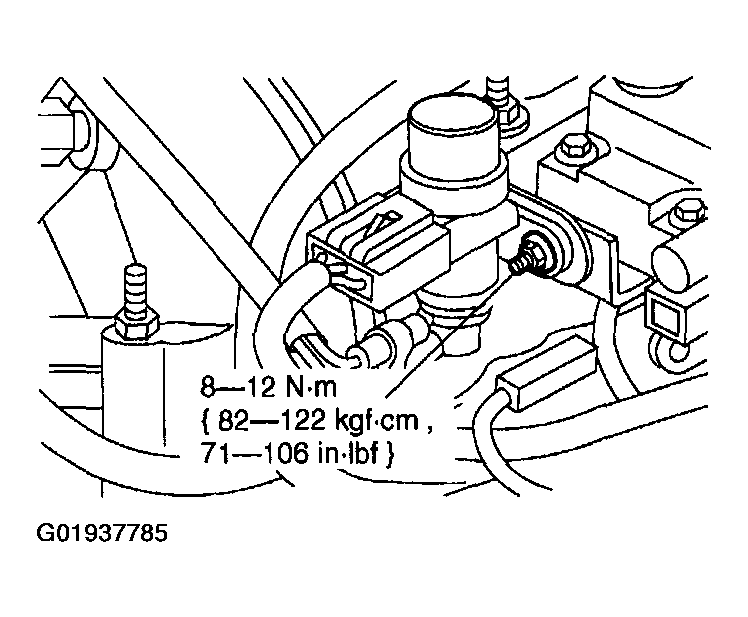

Fig 2: Removing Nut And Position EGR Vacuum Regulator Solenoid Out Of Way
Courtesy of MAZDA MOTORS CORP.
Remove the nuts and remove the ignition coil mounting bracket from the upper intake manifold.

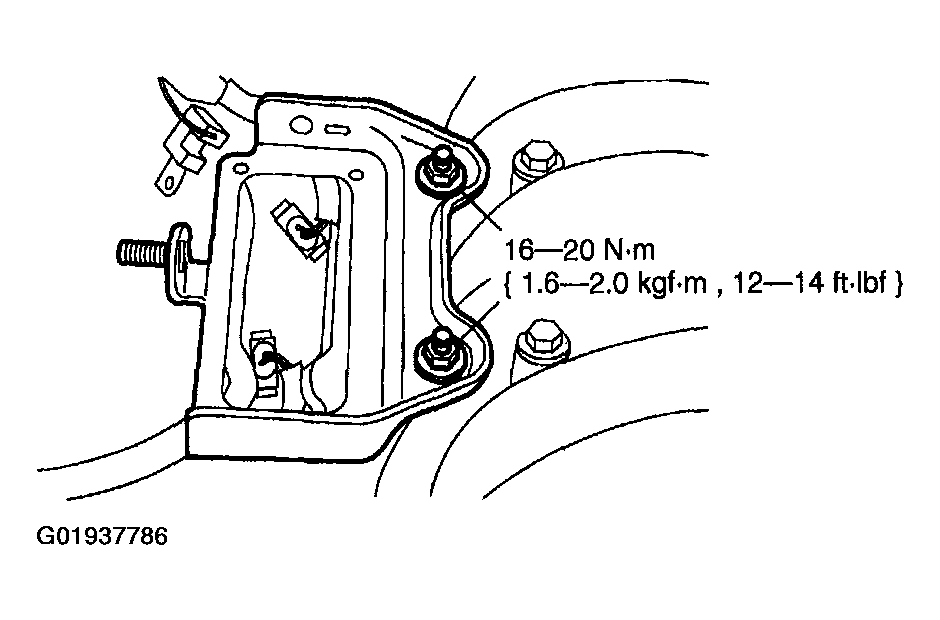

Fig 3: Removing Ignition Coil Mounting Bracket From Upper Intake Manifold
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
