Using SST (104 Pin Breakout Box)
- Disconnect the negative battery cable.
- Disconnect the PCM connector.

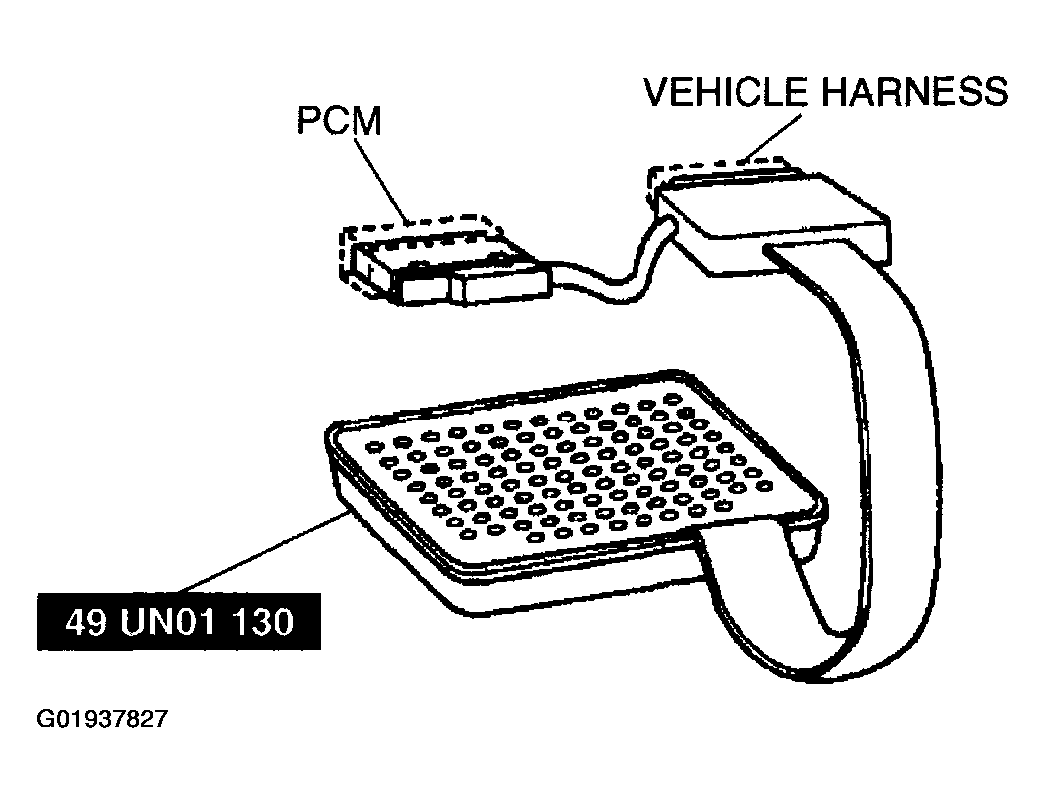

- Connect the SST (104 Pin Breakout Box) to the PCM as shown.
Courtesy of MAZDA MOTORS CORP.
- Tighten the connector bolt.
- Tightening torque
- 7.9-10.7 N.m (80-110 kgf.m, 69.5-95.4 in.lbs)
- Connect the negative battery cable.
- Measure the voltage at each terminal.
- If any incorrect voltage is detected, check related systems, wiring harnesses and connectors referring to the possible malfunction in the terminal voltage list.
