Toe Adjustment

Start the engine and center the steering wheel.

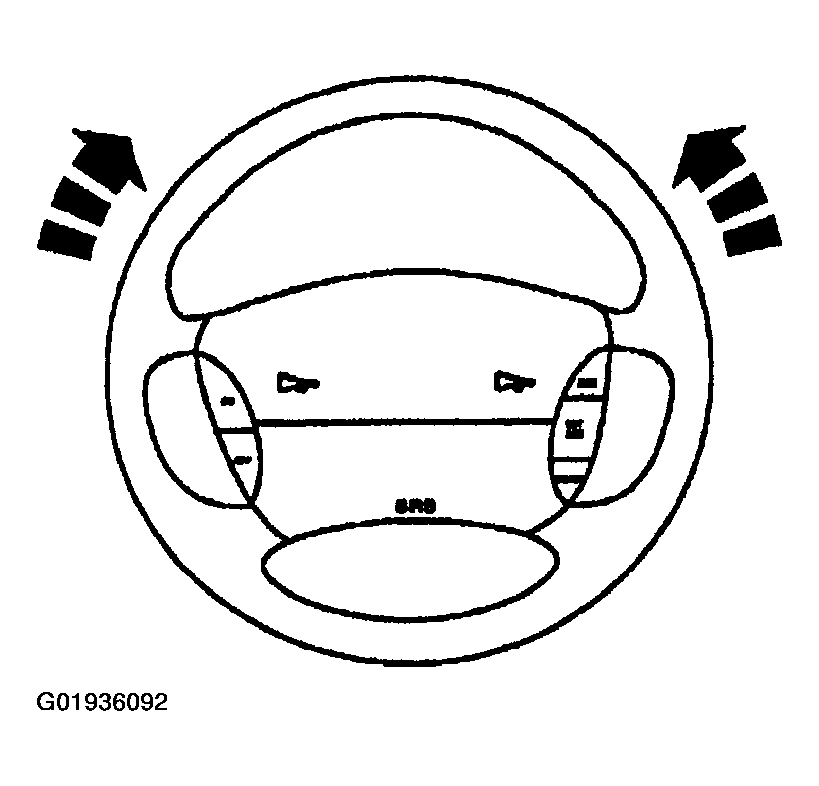

Fig 1: Centering Steering Wheel
Courtesy of MAZDA MOTORS CORP.
Turn the engine off, and hold the steering wheel in the "straight forward" position by attaching a rigid link from the steering wheel to the brake pedal.
Check the toe settings; see TECHNICAL DATA .
NOTE:
- Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.
Remove the clamps.

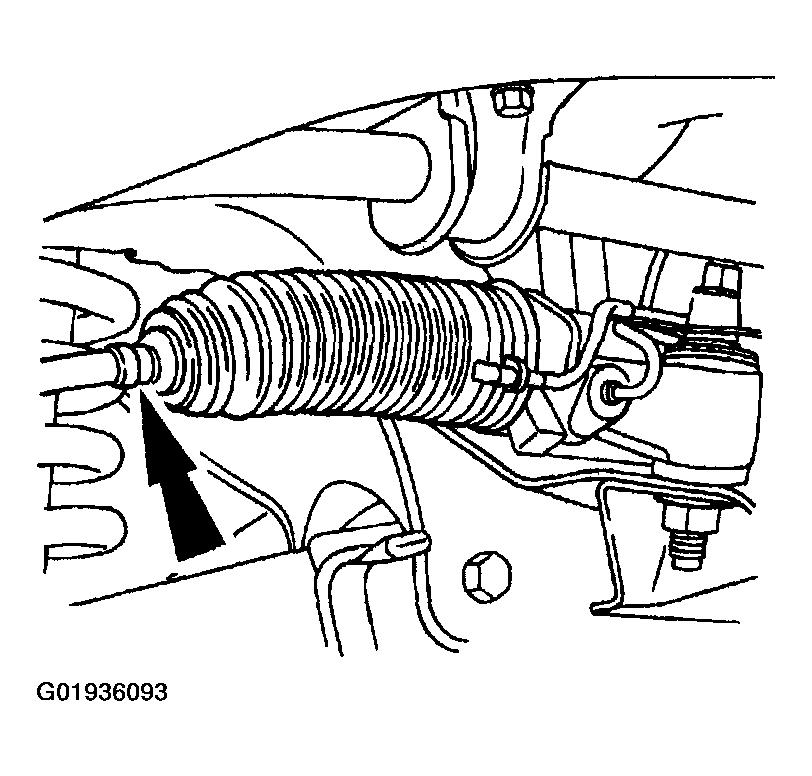

Fig 2: Removing Clamps
Courtesy of MAZDA MOTORS CORP.
Loosen the nuts. Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

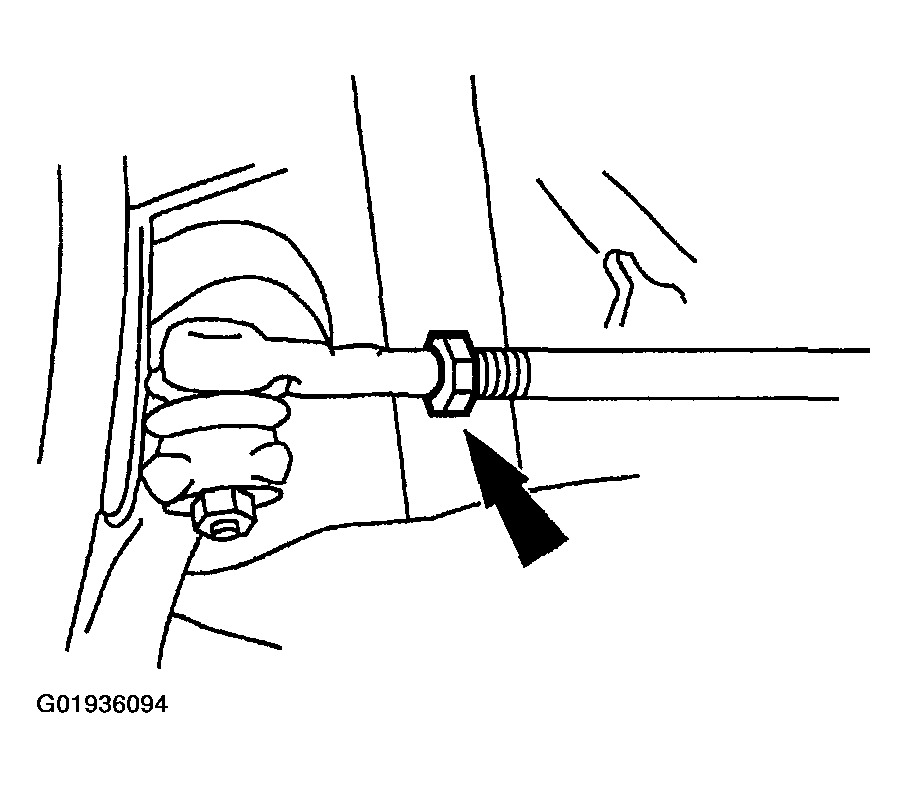

Fig 3: Cleaning And Lubricating Nut(s) And Front Wheel Spindle Tie Rod Threads
Courtesy of MAZDA MOTORS CORP.
Rotate the front wheel spindle tie rods.
Tighten the nuts.

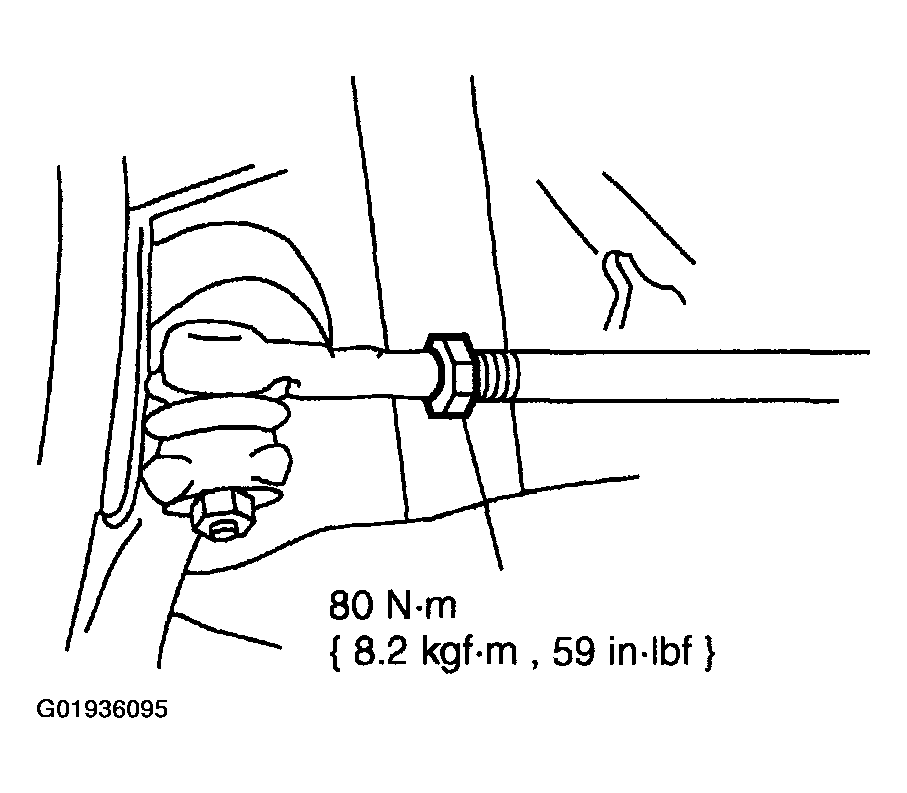

Fig 4: Tightening Tie Rod Nuts
Courtesy of MAZDA MOTORS CORP.
Install the clamps.
Recheck the toe settings; See TECHNICAL DATA .
