Power Outside Mirror Switch Inspection

Use an ohmmeter to check for the continuity between the given terminals of the following table for the side that is not operating correctly.

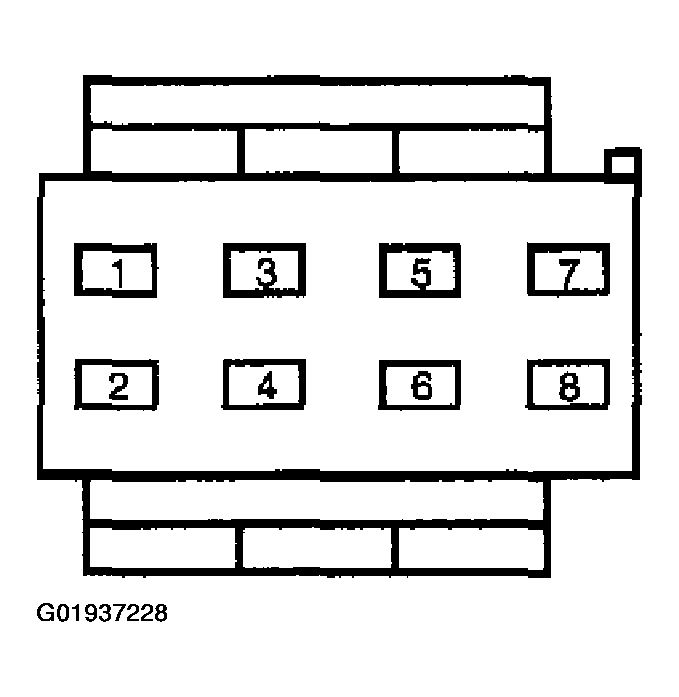

Fig 1: Identifying Power Outside Mirror Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.

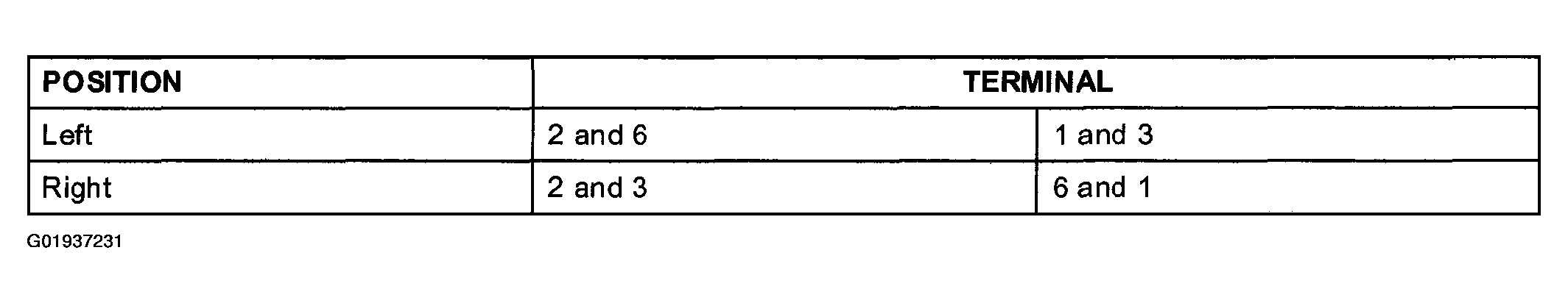

Fig 2: Left Mirror Terminals Continuity Table

Courtesy of MAZDA MOTORS CORP.

Fig 3: Right Mirror Terminals Continuity Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

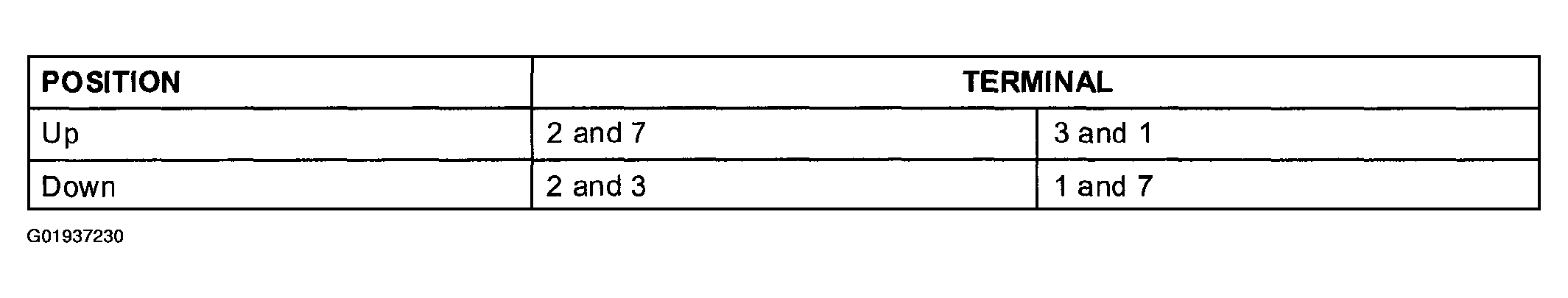

Fig 4: Right Mirror Terminals Continuity Table (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

If the resistances are less than 5 ohms, return to the appropriate diagnostic pinpoint test. Otherwise, replace the power outside mirror switch; see POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION  .
