Inertia Fuel Shutoff Switch Removal/Installation: Notes

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Access the fuel pump shutoff switch on the right side interior trim panel and disconnect the electrical connector.

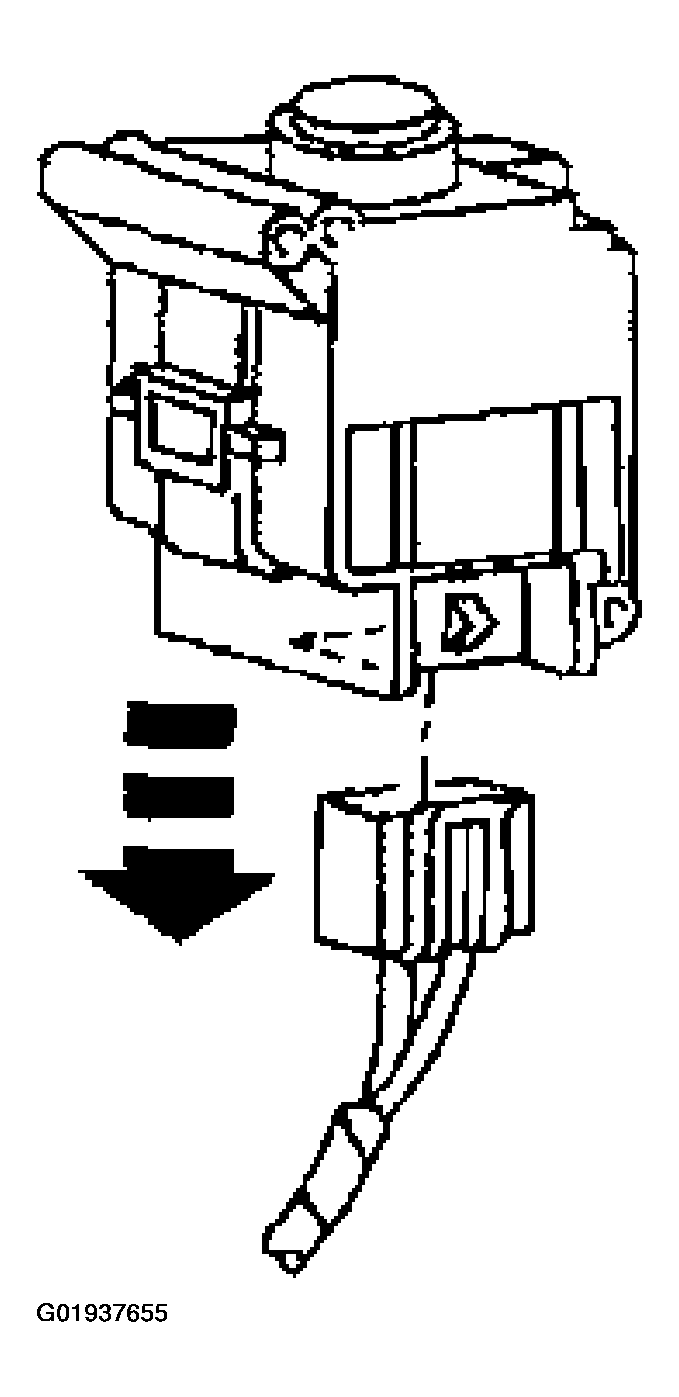

Fig 1: Disconnecting Fuel Pump Shutoff Switch Connector
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and remove the fuel pump switch.

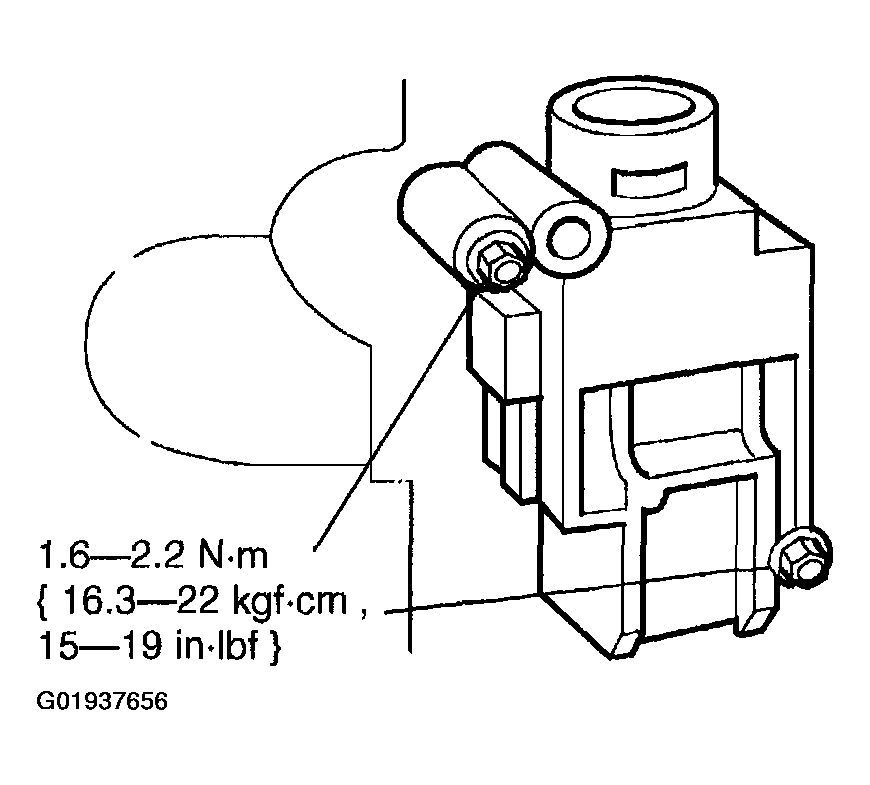

Fig 2: Removing Fuel Pump Switch
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
