Connect Note

Inspect and clean both the coupling ends.

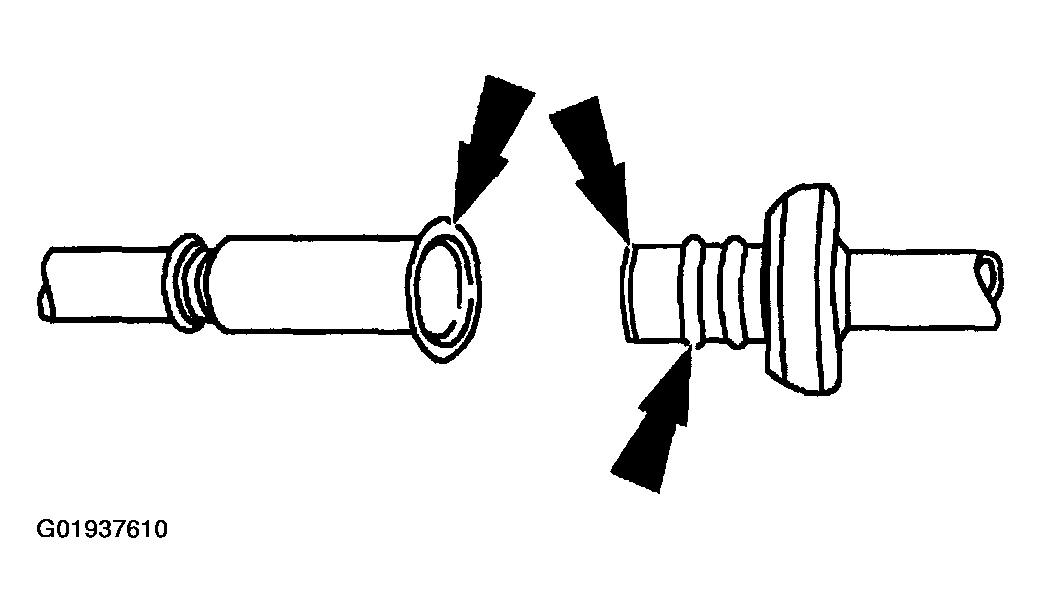

Fig 1: Inspecting And Cleaning Both Coupling Ends
Courtesy of MAZDA MOTORS CORP.
Connect the fitting by inserting the male end into the female end of the fitting. Push the fitting together until the garter spring is engaged.

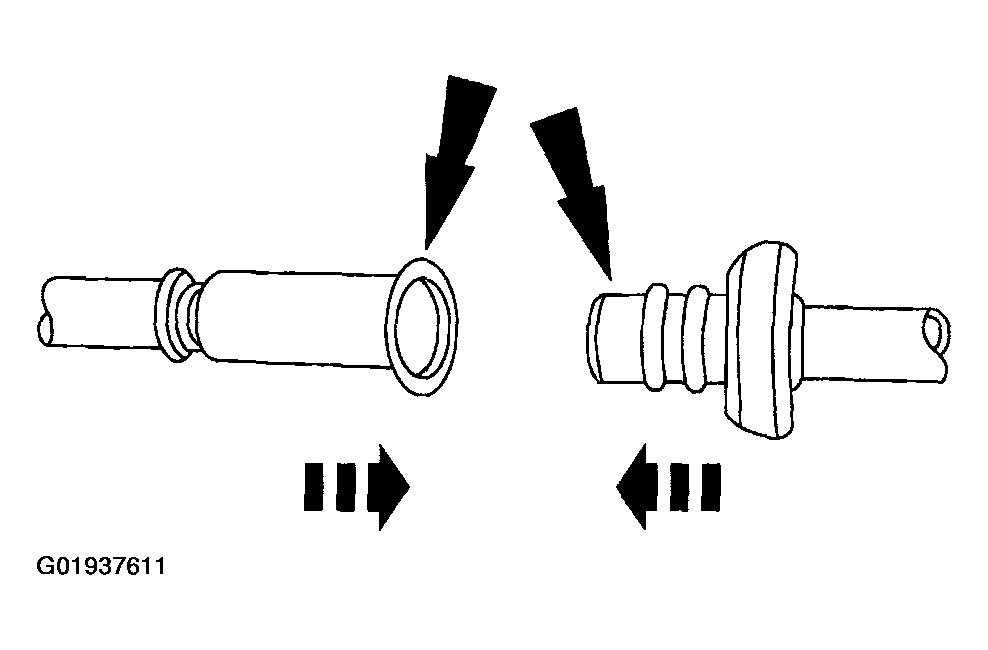

Fig 2: Connecting Fitting By Inserting The Male End Into Female End Of Fitting
Courtesy of MAZDA MOTORS CORP.
Pull on the fitting to make sure it is fully engaged.

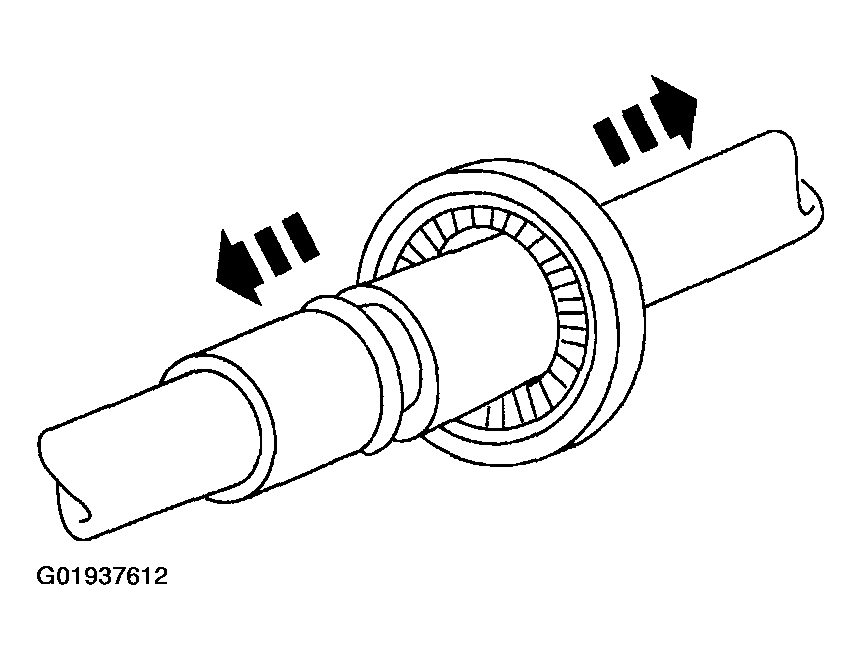

Fig 3: Verifying Proper Fitting
Courtesy of MAZDA MOTORS CORP.
Install the safety clip.

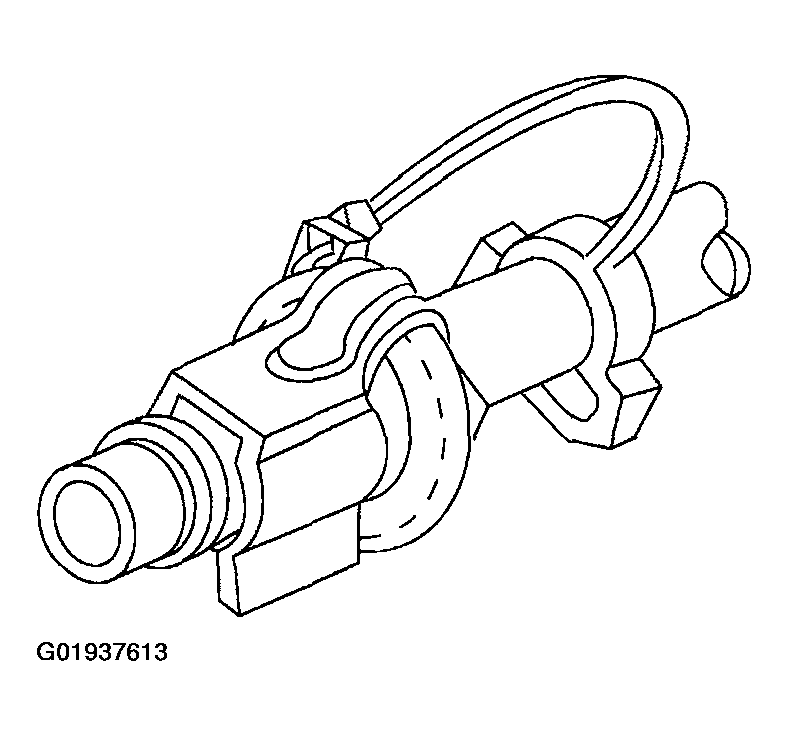

Fig 4: Installing Safety Clip
Courtesy of MAZDA MOTORS CORP.
