Camshaft Position (CMP) Sensor Removal/Installation - 2.3L

Disconnect the negative battery cable.

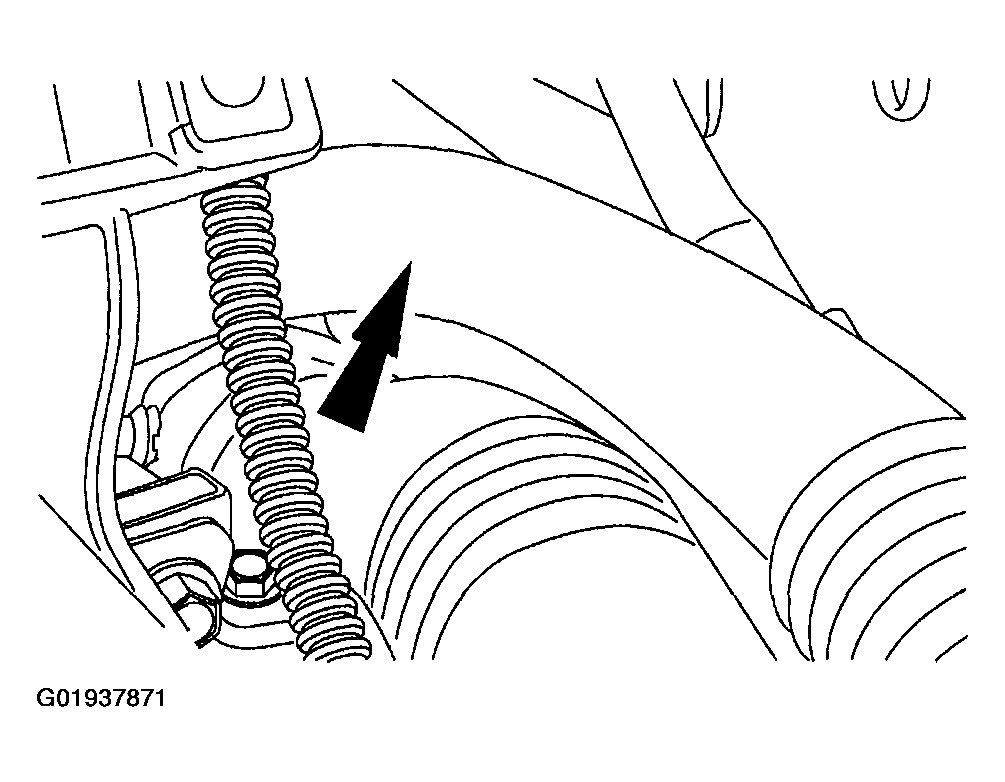

Fig 1: Disconnecting Camshaft Position (CMP) Sensor Electrical Connector - 2.3L
Courtesy of MAZDA MOTORS CORP.
Disconnect the camshaft position (CMP) sensor electrical connector.

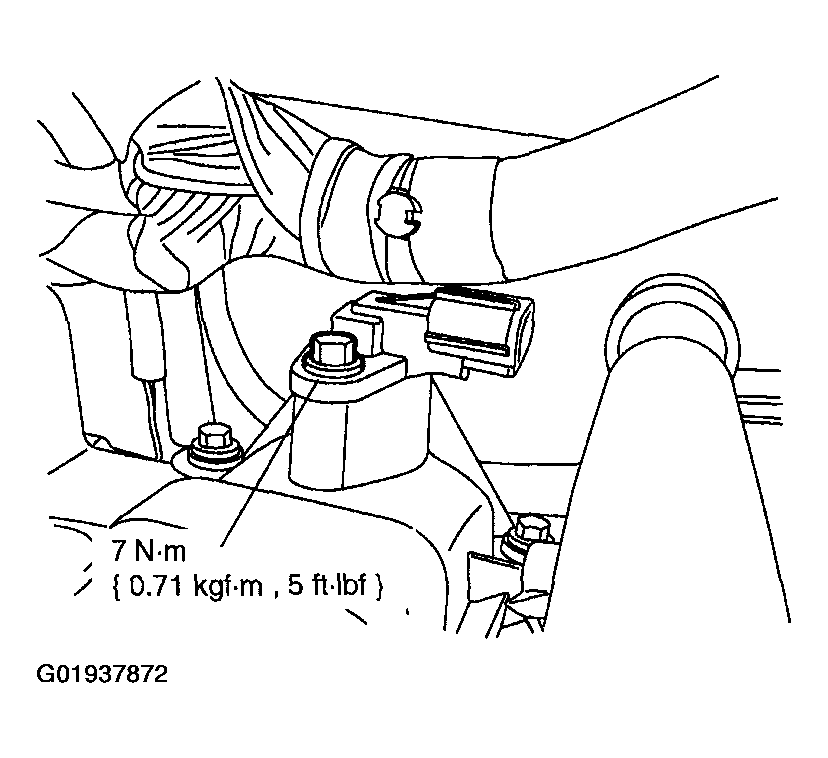

Fig 2: Removing CMP Sensor Bolt - 2.3L
Courtesy of MAZDA MOTORS CORP.
Remove the bolt and the CMP sensor.
NOTE:
- Lubricate the O-ring with clean engine oil.
To install, reverse the removal procedure.
