Idle Air Control (IAC) Valve Removal/Installation - 4.0L

Remove the accelerator control snow shield.

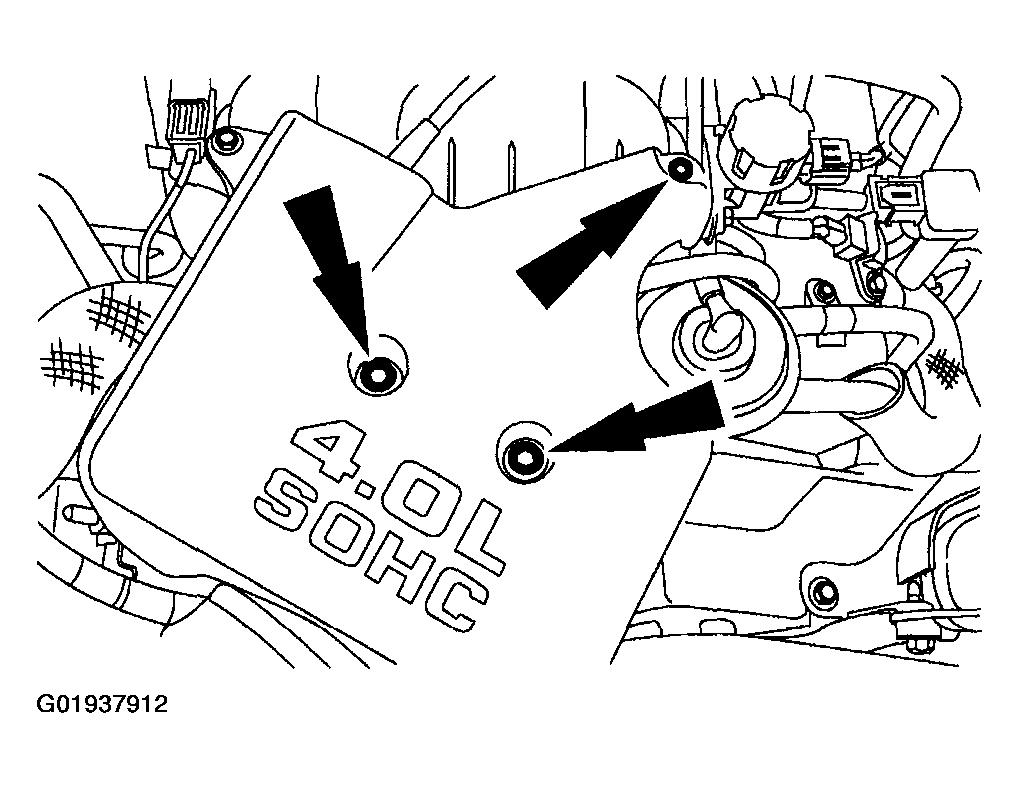

Fig 1: Removing Accelerator Control Snow Shield - 4.0L
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector. Remove the bolts and the idle air control (IAC) valve.

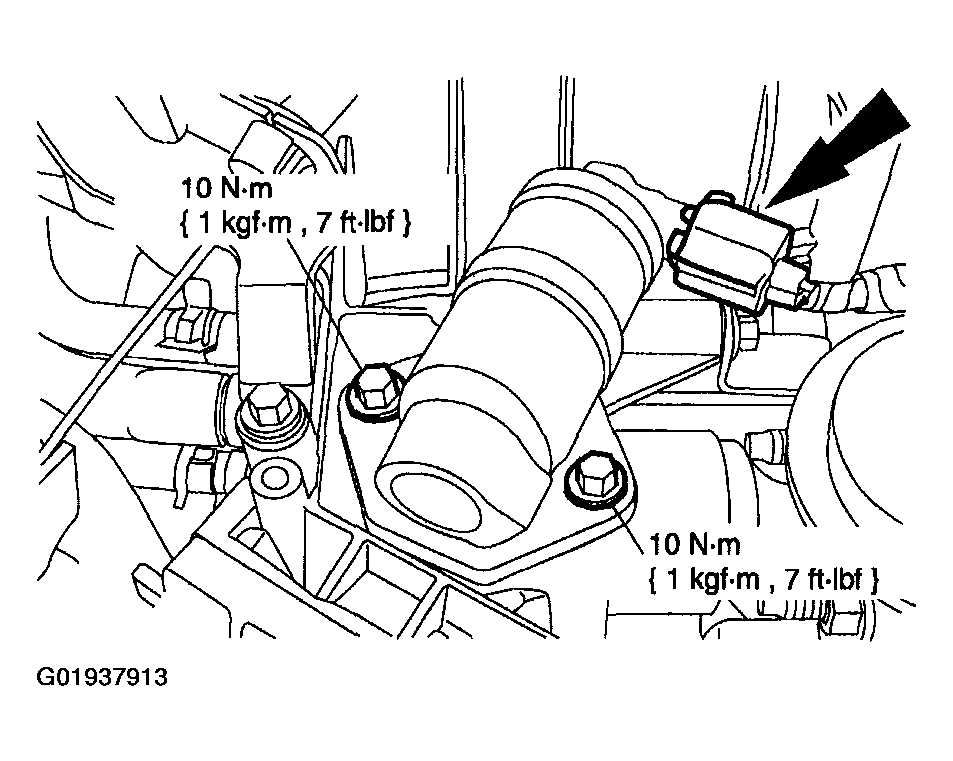

Fig 2: Removing Idle Air Control (IAC) Valve Bolts - 4.0L
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Install a new IAC gasket.
To install, reverse the removal procedure.
