Throttle Position (TP) Sensor Removal/Installation - 2.3L

Disconnect the negative battery cable.

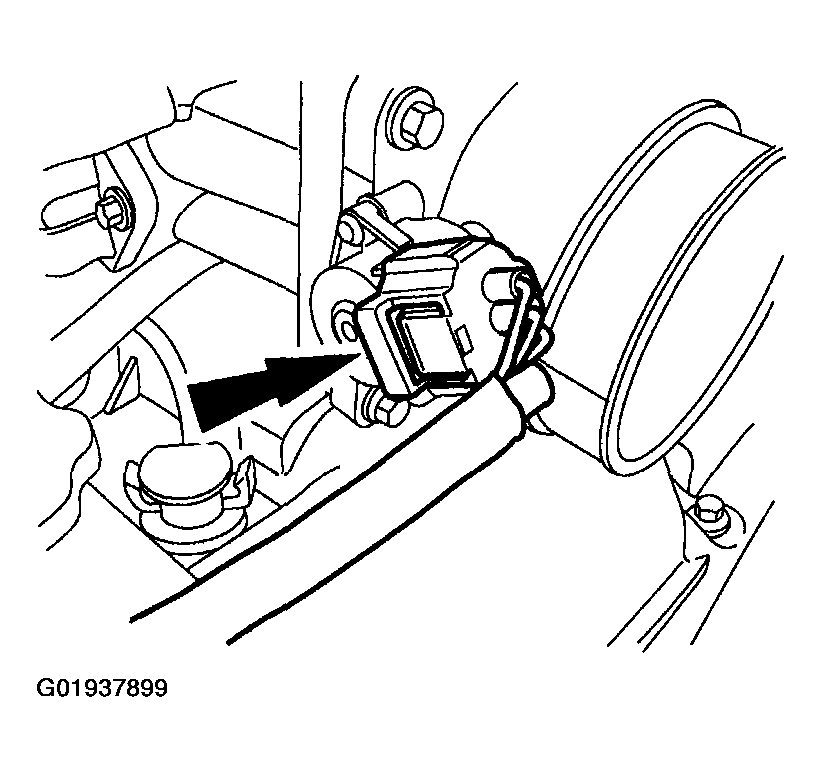

Fig 1: Disconnecting Throttle Position (TP) Sensor Electrical Connector - 2.3L
Courtesy of MAZDA MOTORS CORP.
Disconnect the throttle position (TP) sensor electrical connector.

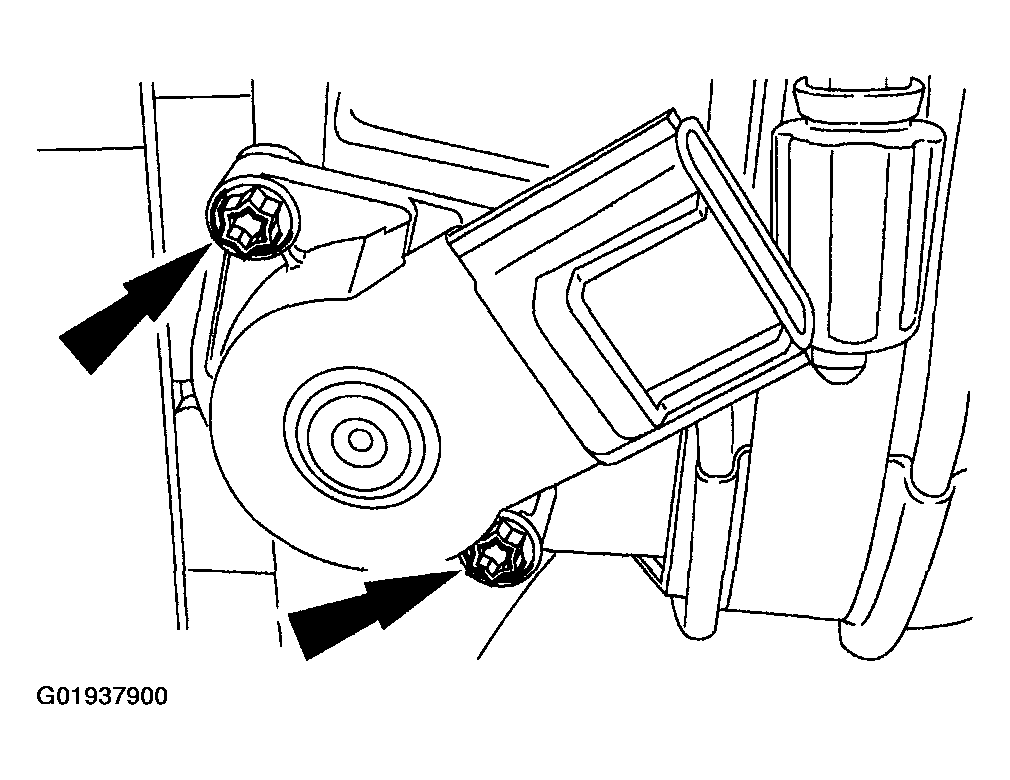

Fig 2: Removing TP Sensor Bolts - 2.3L
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the TP sensor.
To install, reverse the removal procedure.
