General Pinpoint Test 5: Fuel Delivery System

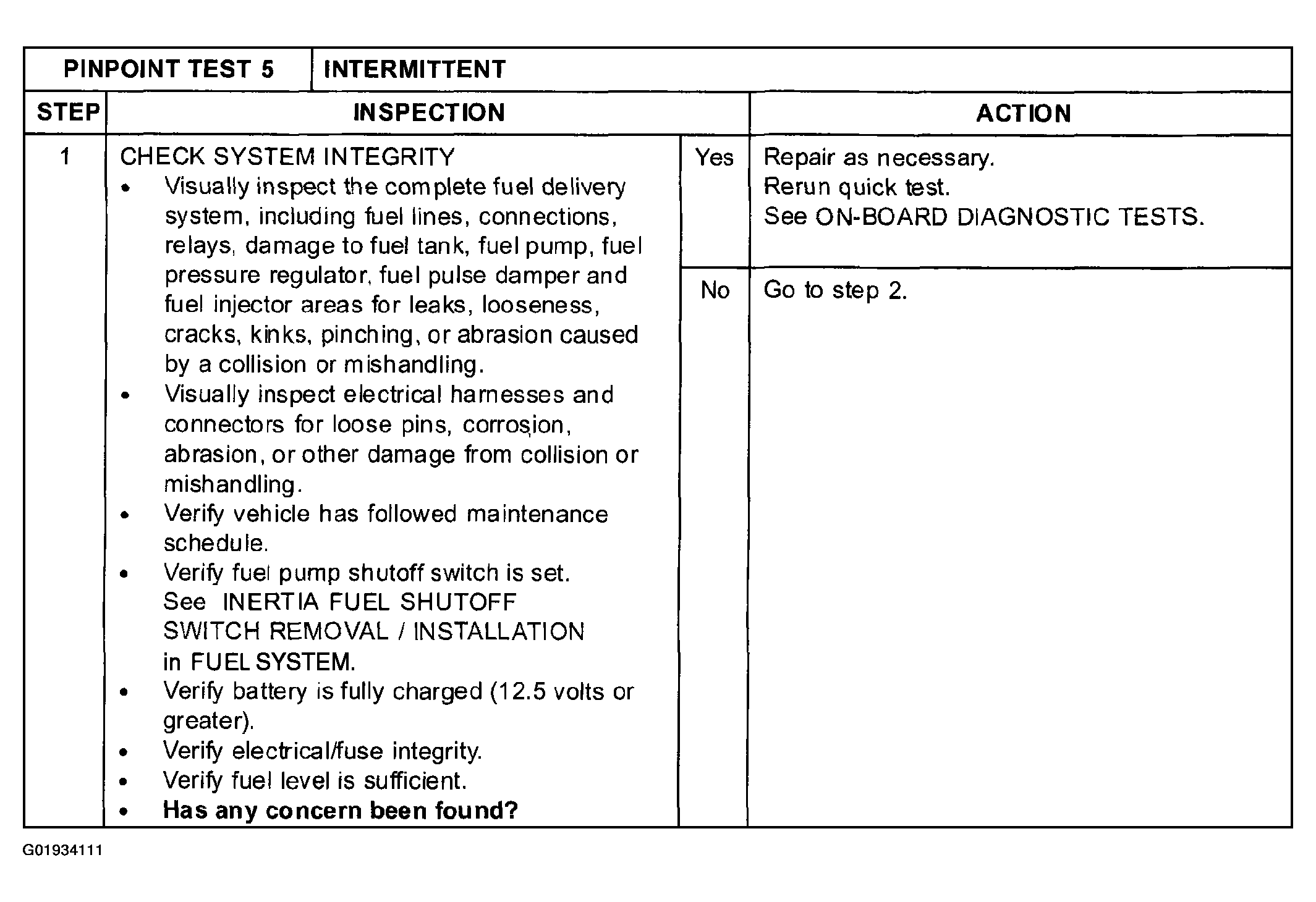

Fig 1: General Pinpoint Test 5: Fuel Delivery System (Step 1)
G01934111Courtesy of MAZDA MOTORS CORP.

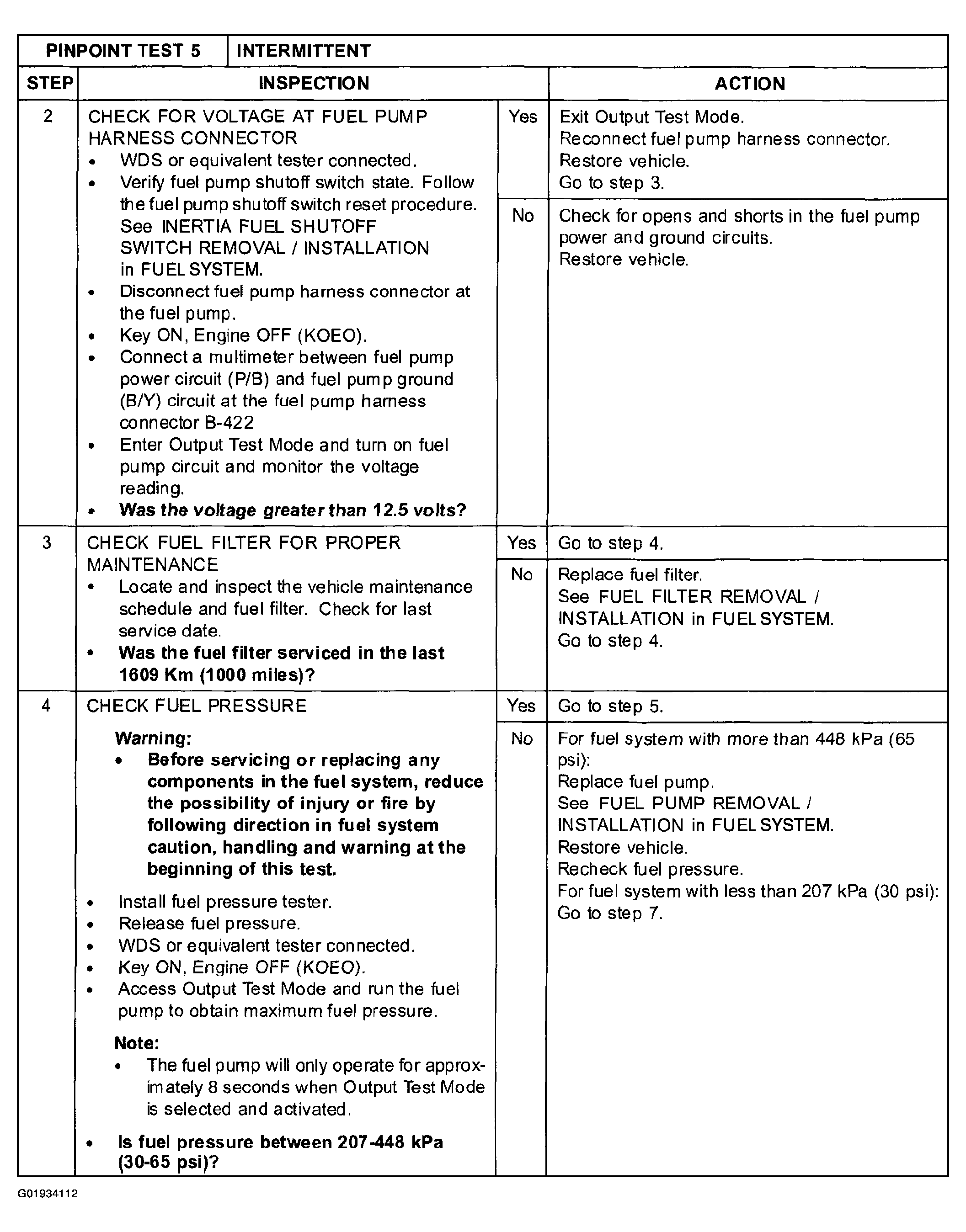

Fig 2: General Pinpoint Test 5: Fuel Delivery System (Steps 2-4)
G01934112Courtesy of MAZDA MOTORS CORP.

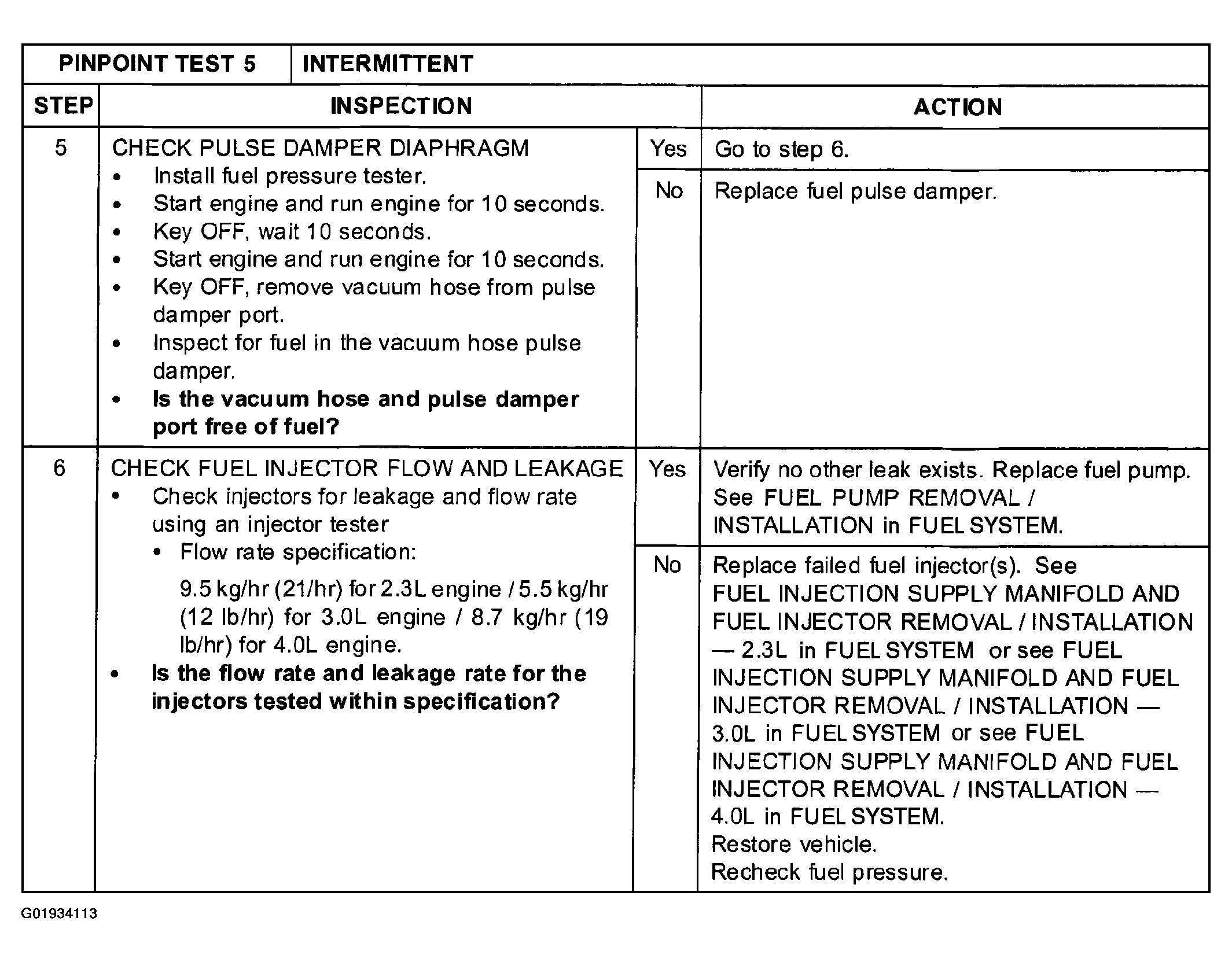

Fig 3: General Pinpoint Test 5: Fuel Delivery System (Steps 5-6)
G01934113Courtesy of MAZDA MOTORS CORP.

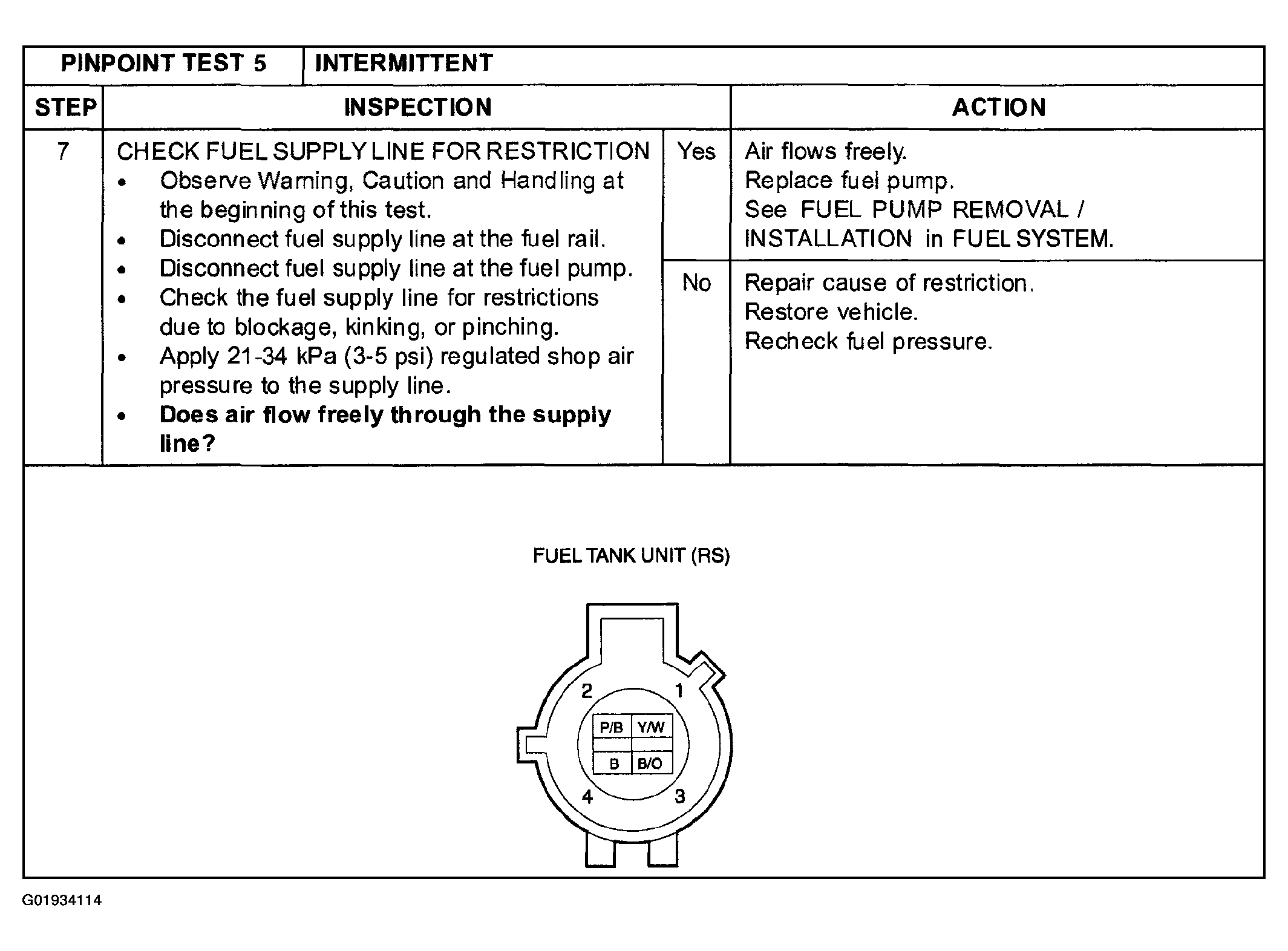

Fig 4: General Pinpoint Test 5: Fuel Delivery System (Step 7)
G01934114Courtesy of MAZDA MOTORS CORP.
