DTC P1260: Anti-Theft System

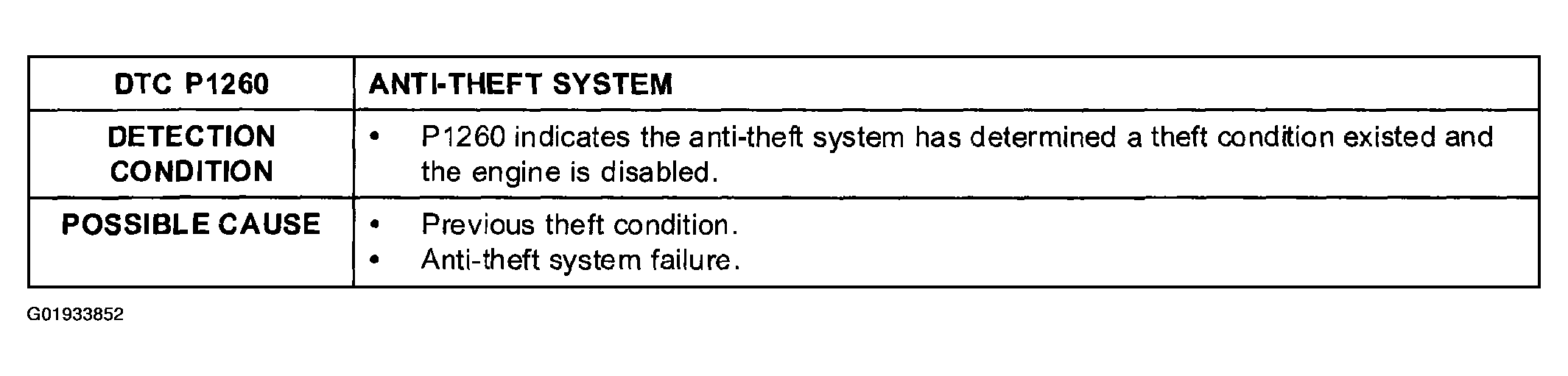

Fig 1: Anti-Theft System Detection Condition
Courtesy of MAZDA MOTORS CORP.

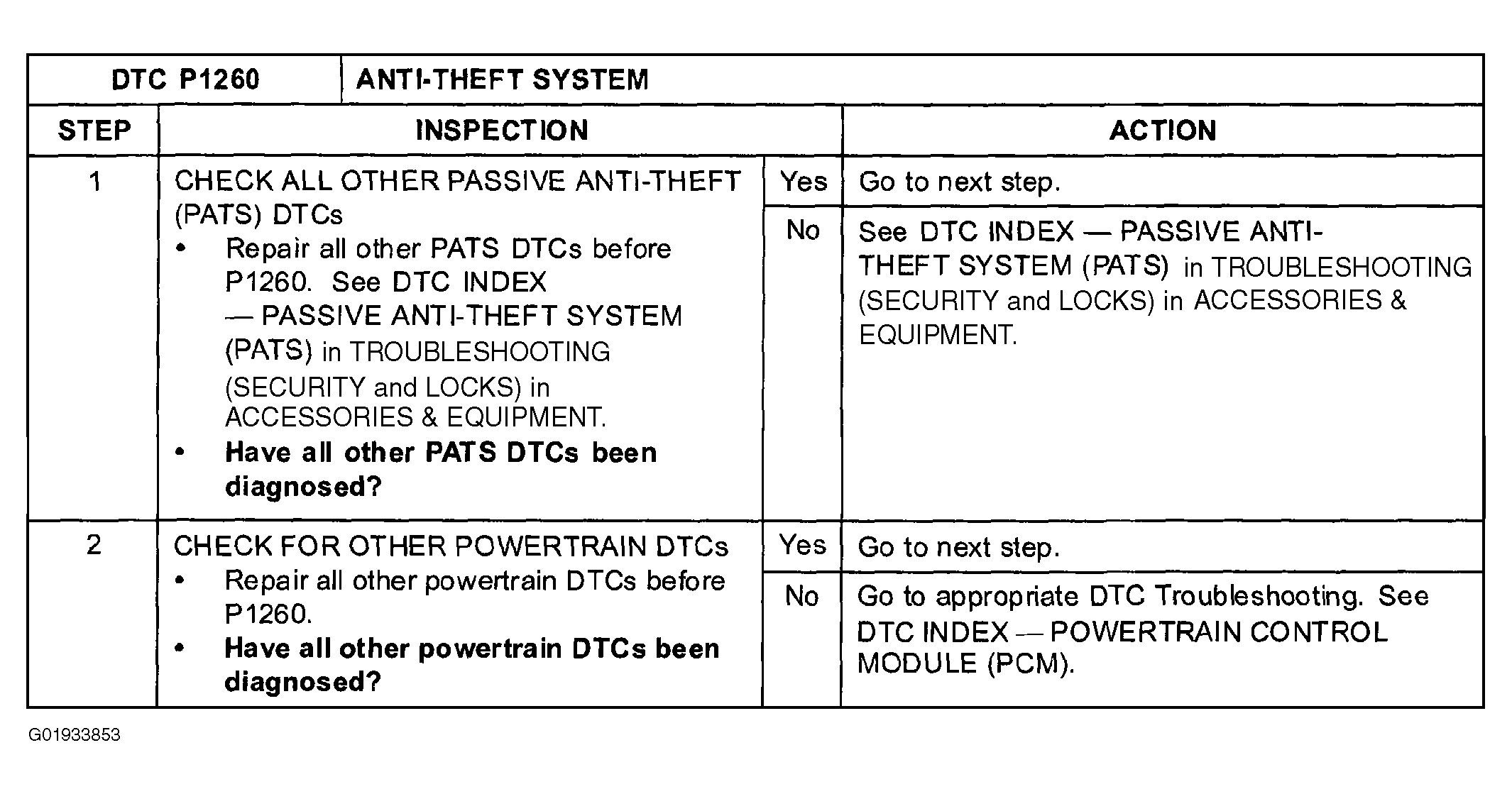

Fig 2: Diagnostic Procedure (DTC P1260) (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

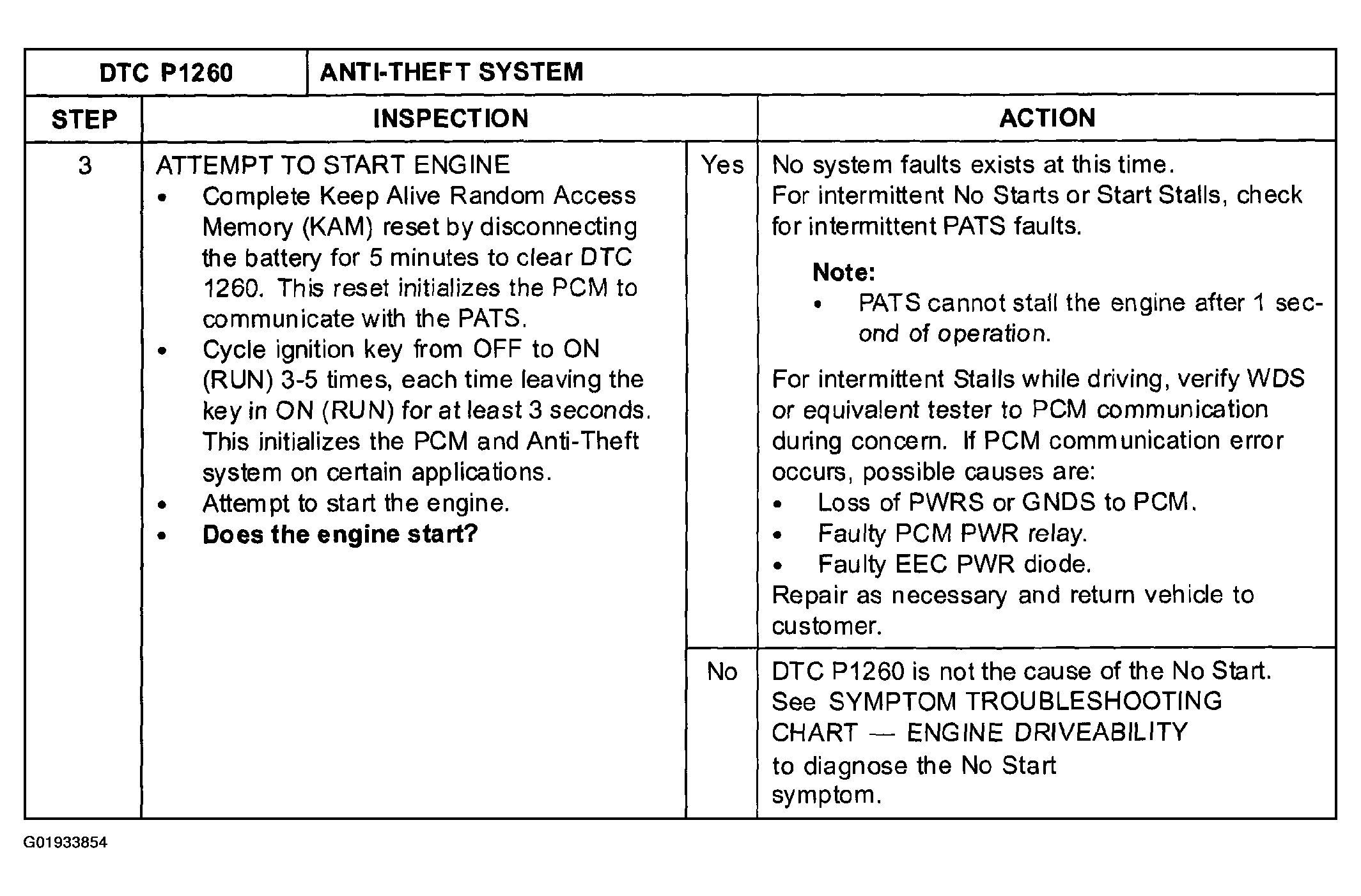

Fig 3: Diagnostic Procedure (DTC P1260) (Step 3)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
