A/C Does Not Work

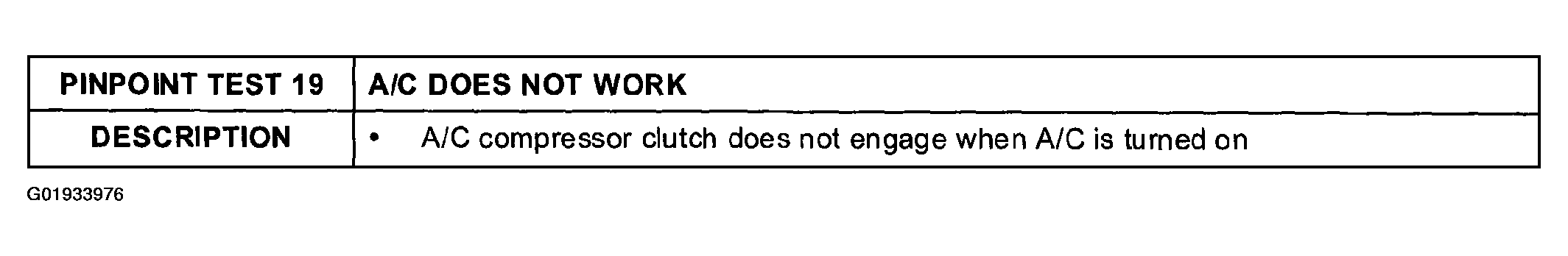

Fig 1: Pinpoint Test 19 - A/C Does Not Work Description

Courtesy of MAZDA MOTORS CORP.

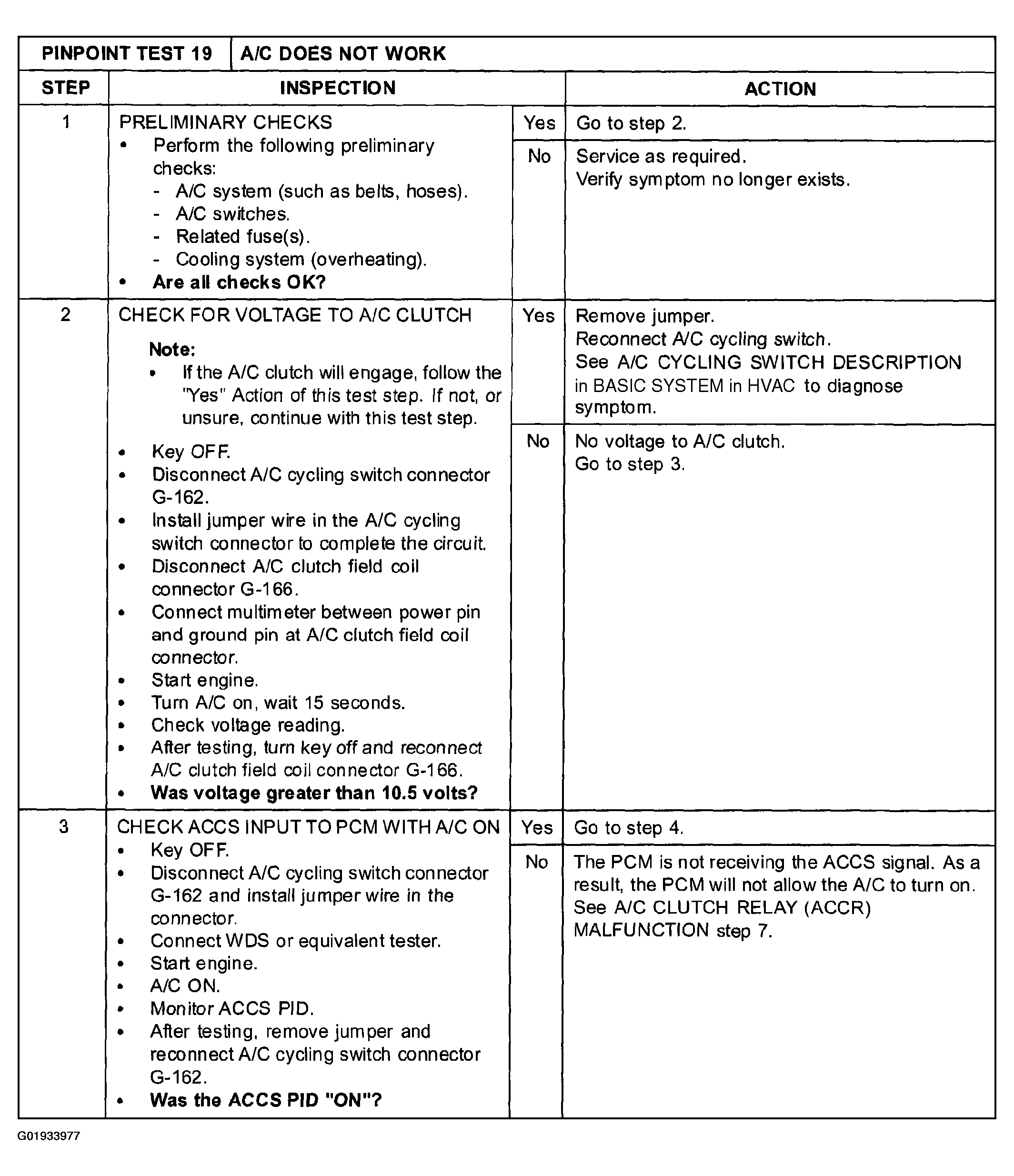

Fig 2: Pinpoint Test 19 - A/C Does Not Work (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

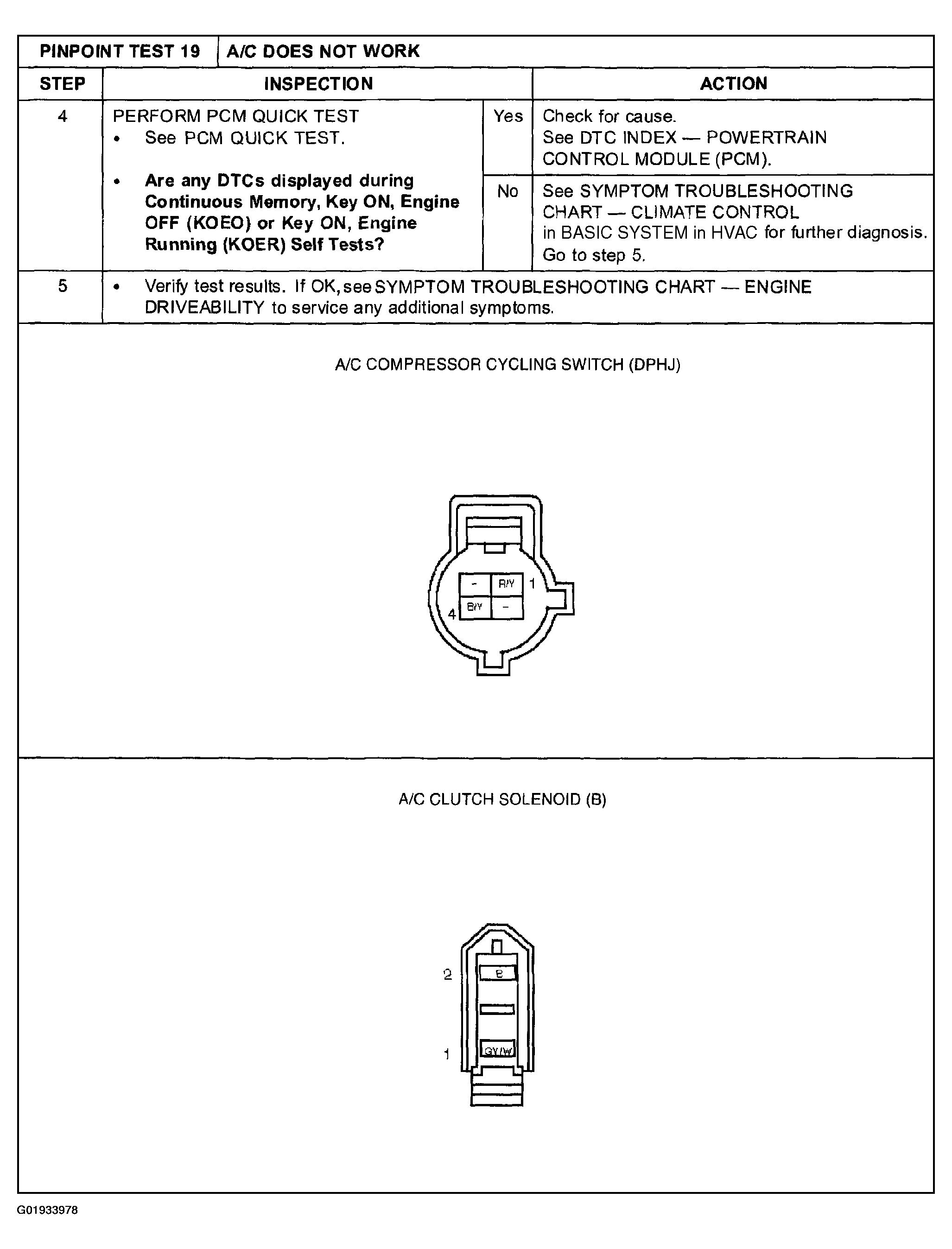

Fig 3: Pinpoint Test 19 - A/C Does Not Work (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
