Door Glass Front Removal/Installation: Notes

NOTE:
  • Position the door glass half-way up to gain access to the rivets.
  1. Remove the front door trim panel and watershield; see DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
  2. Remove in order shown in figure.
    1. Bolt
    2. Door glass run retainer
    3. Rivets
    4. Door glass

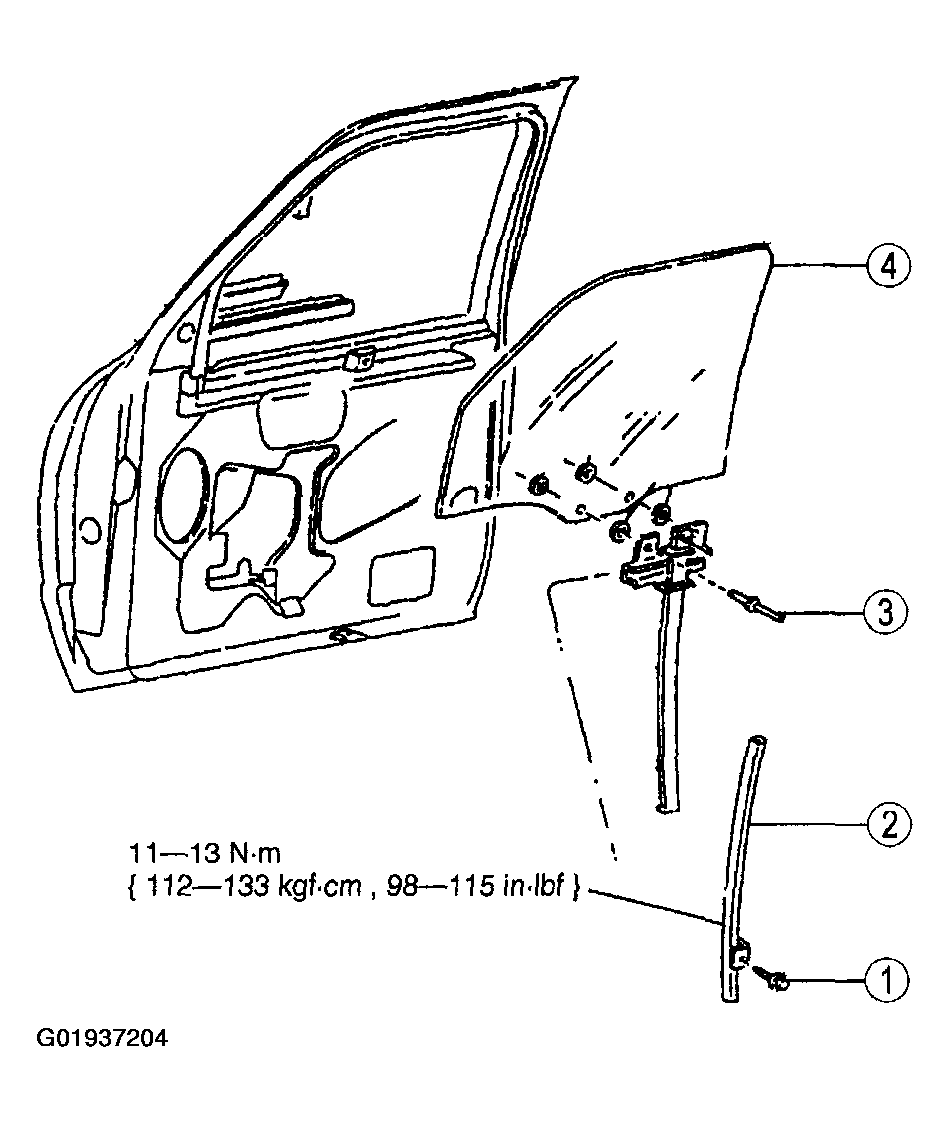

    Fig 1: Removing/Installing Door Glass Front
    G01937204Courtesy of MAZDA MOTORS CORP.
  3. Install in reverse order of removal.
