Door Glass Run Retainer, Center Removal/Installation

  1. Remove the door glass; see DOOR GLASS FRONT REMOVAL/INSTALLATION  .
  2. Remove in order shown in figure.
    1. Nuts
    2. Center door glass run retainer
  3. Install in reverse order of removal.

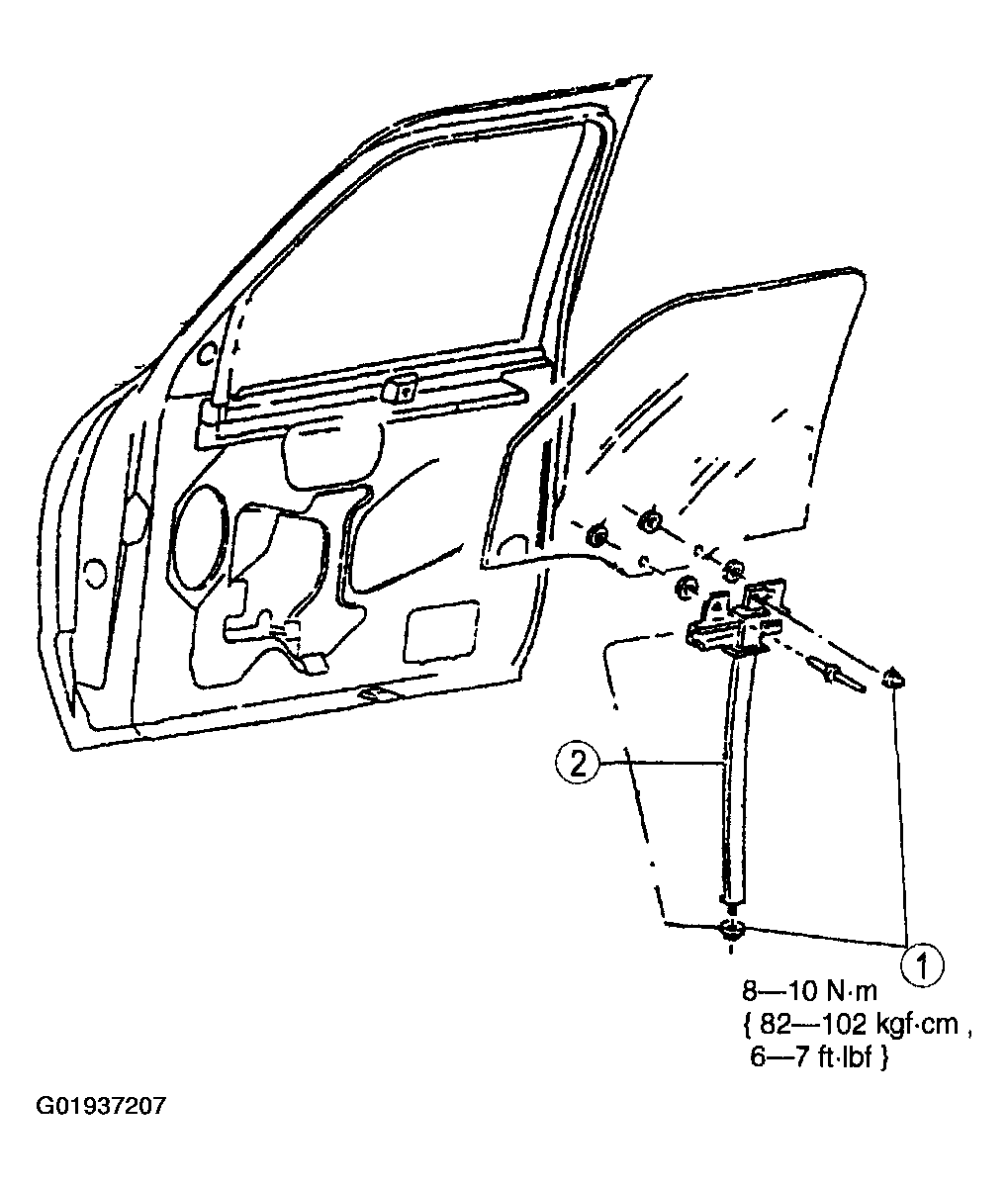

    Fig 1: Removing/Installing Door Glass Run Retainer, Center
    G01937207Courtesy of MAZDA MOTORS CORP.
