Unique Idle Concern

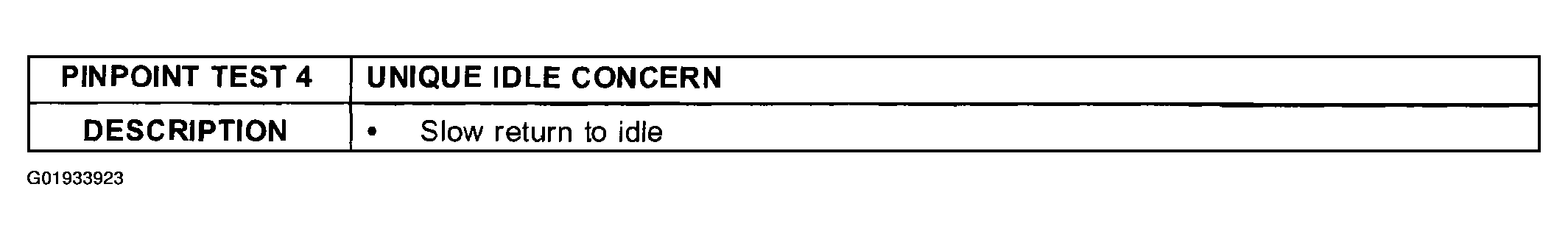

Fig 1: Pinpoint Test 4 - Unique Idle Concerns Description
G01933923Courtesy of MAZDA MOTORS CORP.

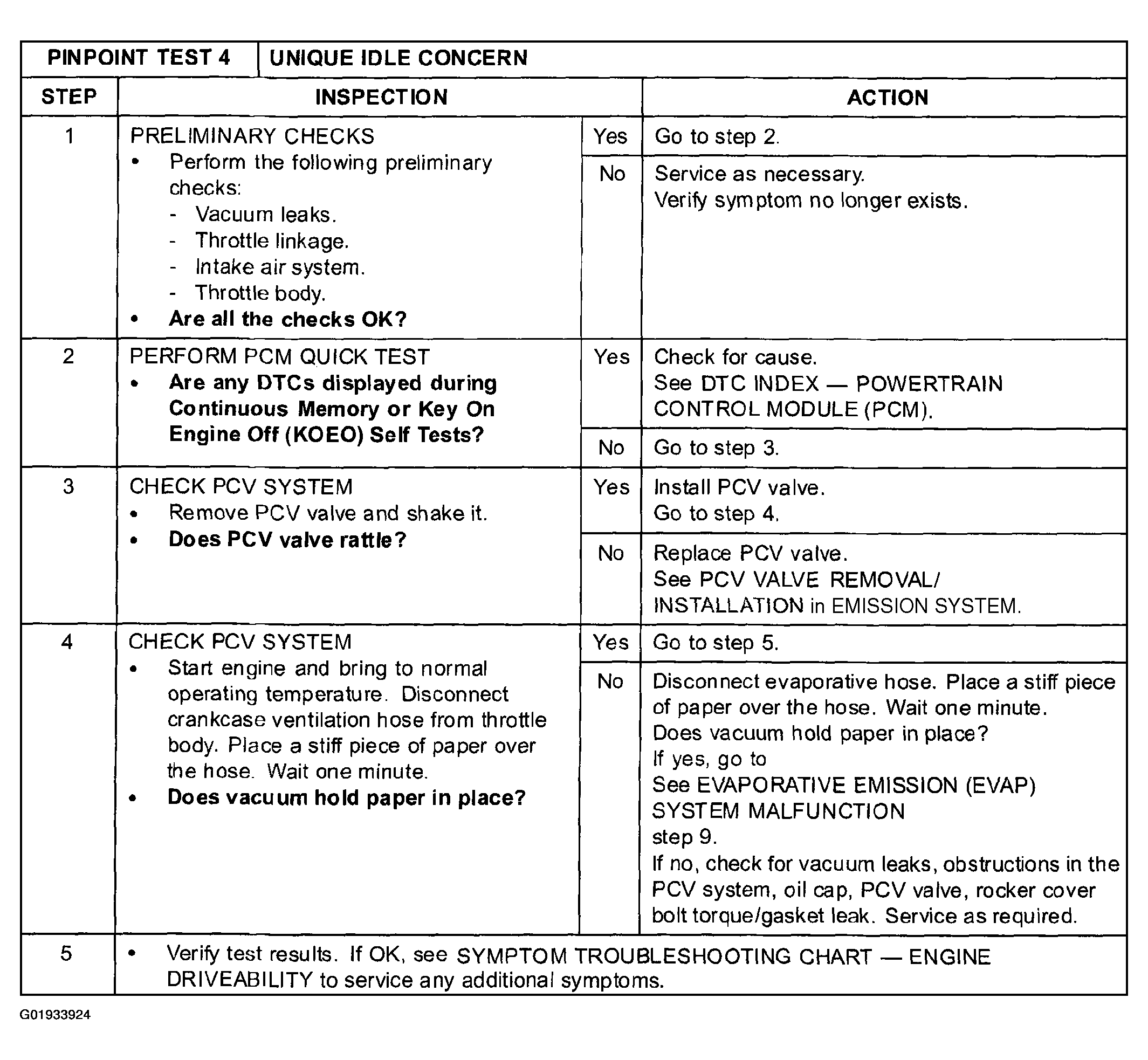

Fig 2: Pinpoint Test 4 - Unique Idle Concerns (Steps 1-5)
G01933924Courtesy of MAZDA MOTORS CORP.
