Coil Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The coil should not be removed unless it is being replaced
- Disconnect the negative battery cable.
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

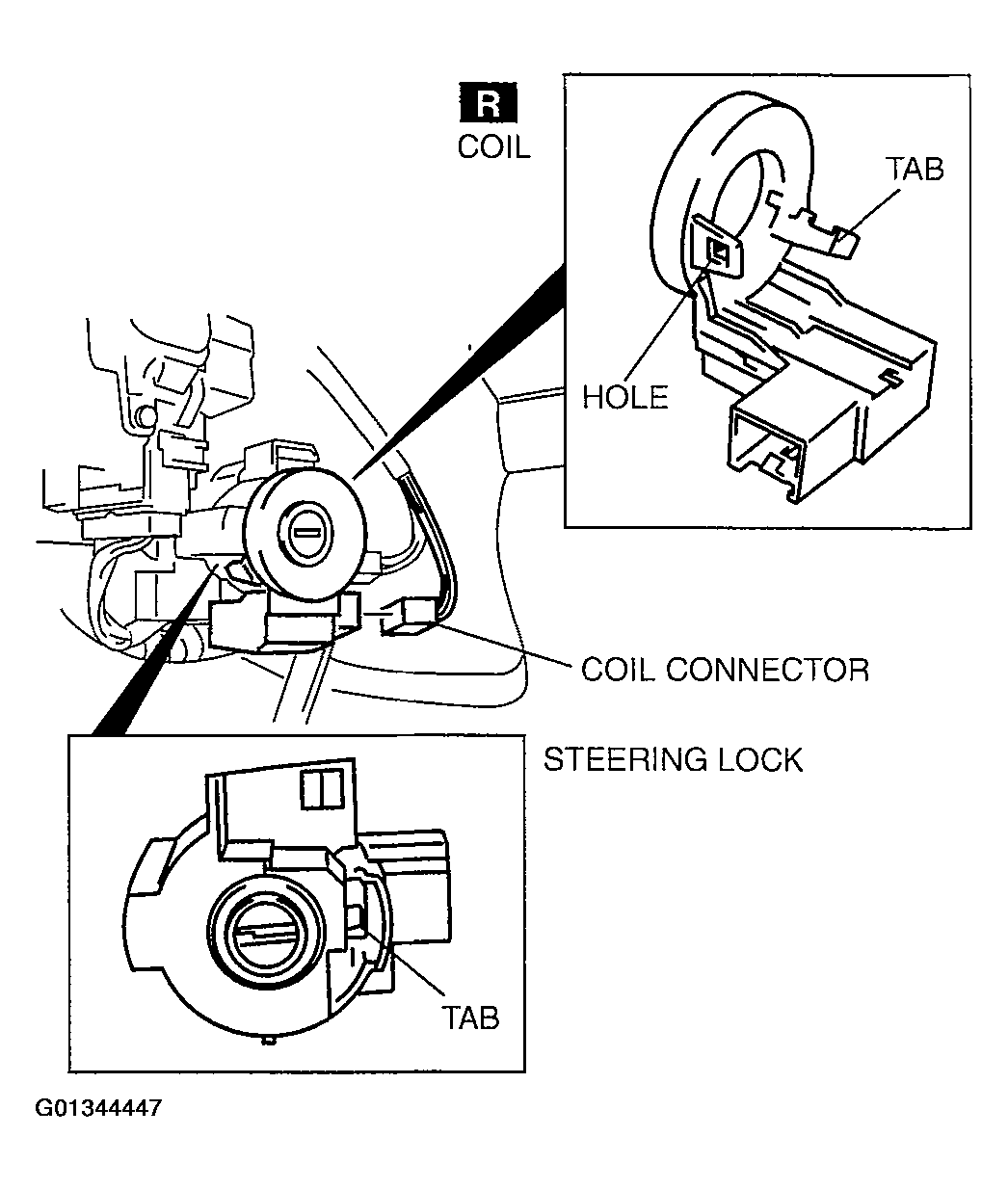

- Disconnect the coil connector.
- Detach the steering lock tab from hole on the coil.
- Detach the coil tab from the steering lock and remove the coil.
- Install in the reverse order of removal.
