Door Lock Switch Removal/Installation: RH

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Using a flathead screwdriver wrapped with protective tape, pry up the rear of the switch panel and detach the clip.
  3. Remove the switch panel from the front door trim keeping the tab from catching.
  4. Disconnect the power door lock switch connector and the power window sub-switch connector.

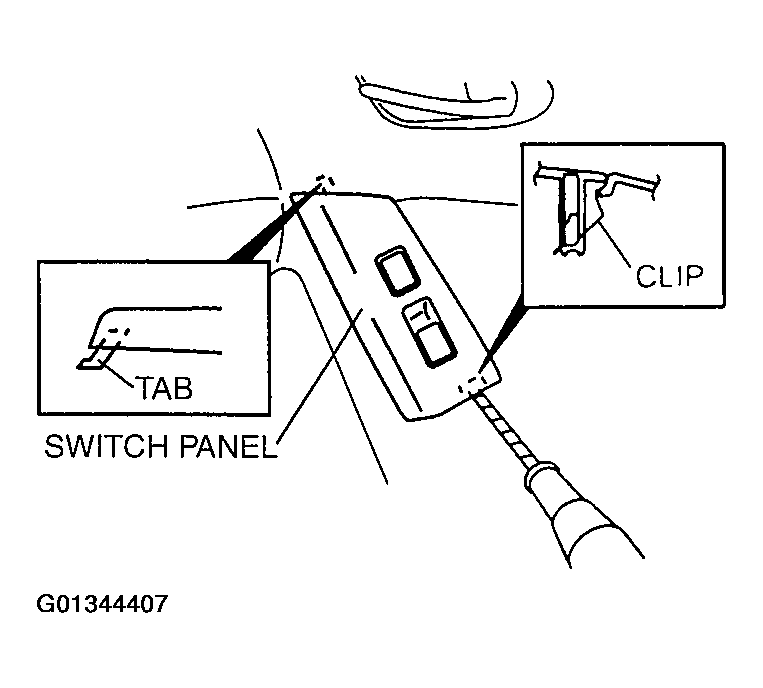

    Fig 1: Identifying Switch Panel & Clip
    G01344407Courtesy of MAZDA MOTORS CORP.
  5. Remove the screws, then remove the power door lock switch.
  6. Install in the reverse order of removal.

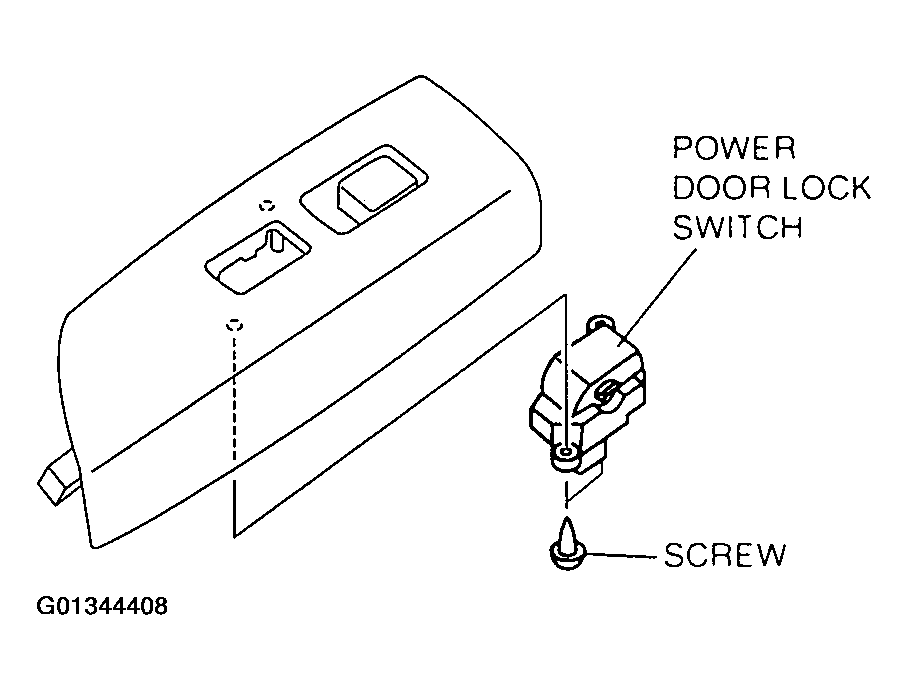

    Fig 2: Removing Power Door Lock Switch
    G01344408Courtesy of MAZDA MOTORS CORP.
