Front Door Key Cylinder Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    5. Front door unit (See FRONT DOOR REMOVAL/INSTALLATION .)
    6. Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
  2. Detach the front door key cylinder rod.
  3. Turn the front door key cylinder so that the tab is aligned with the notch.
  4. Remove the front door key cylinder by pulling it out from the front door.
  5. Install in the reverse order of removal.

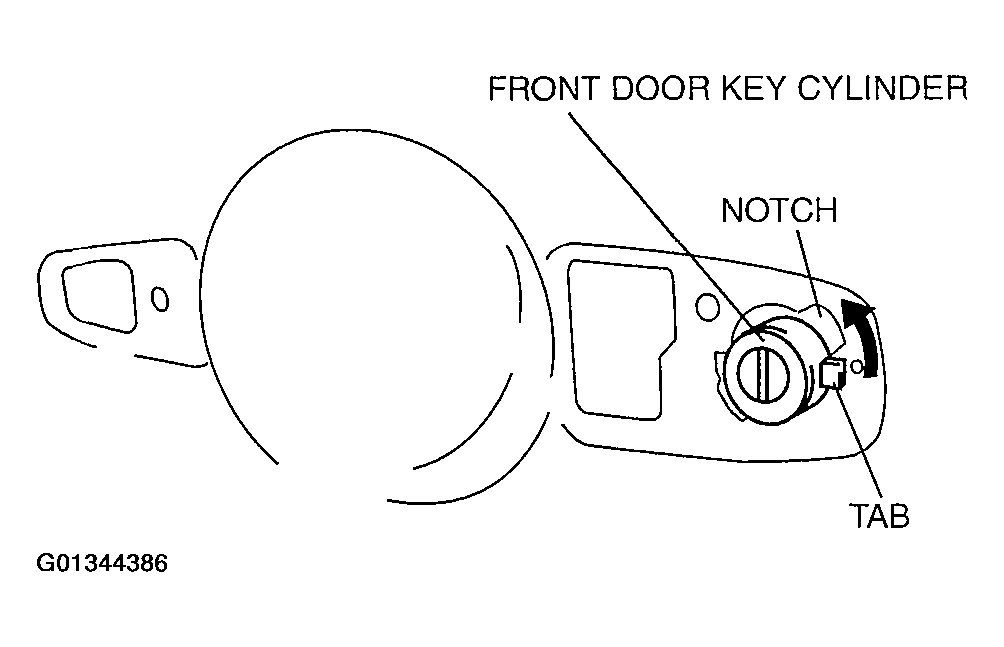

    Fig 1: Locating Front Door Key Cylinder
