Trunk Lid Opener Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Apply battery positive voltage and connect the ground to the corresponding the trunk lid opener terminals, and inspect the trunk lid opener operation.
- If the trunk lid opener does not operate as indicated, replace the trunk lid latch and opener. See Fig 1.

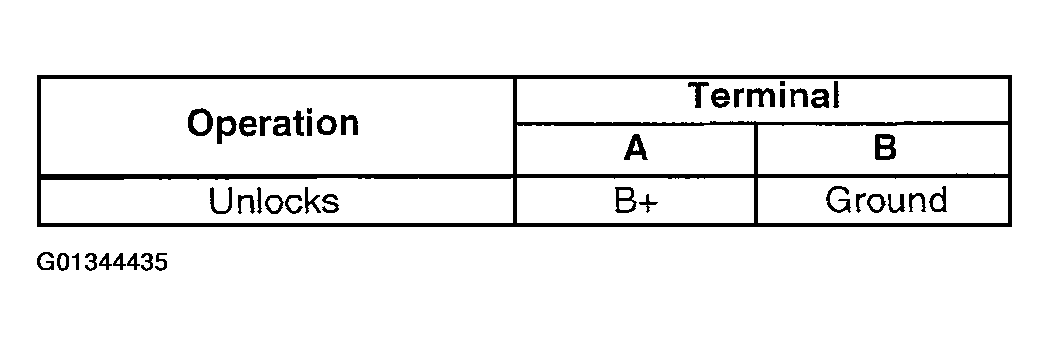

Fig 1: Trunk Lid Connector Terminal Inspection
Courtesy of MAZDA MOTORS CORP.

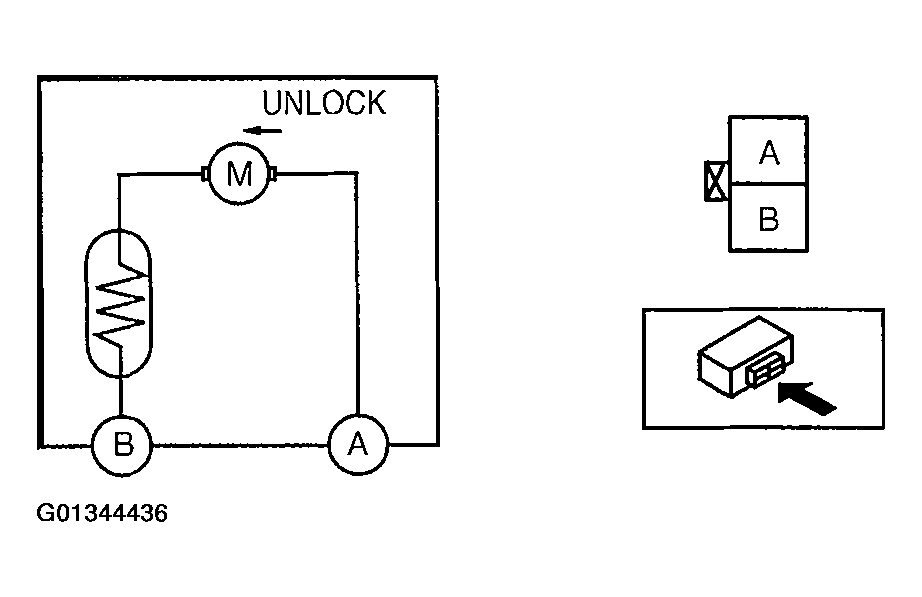

Fig 2: Inspecting Trunk Lid Opener
Courtesy of MAZDA MOTORS CORP.
