Trunk Lid Opener Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk lid open switch.
Inspect for continuity between the trunk lid open switch terminals. See Fig 1.
- If not as specified, replace the trunk lid open switch.

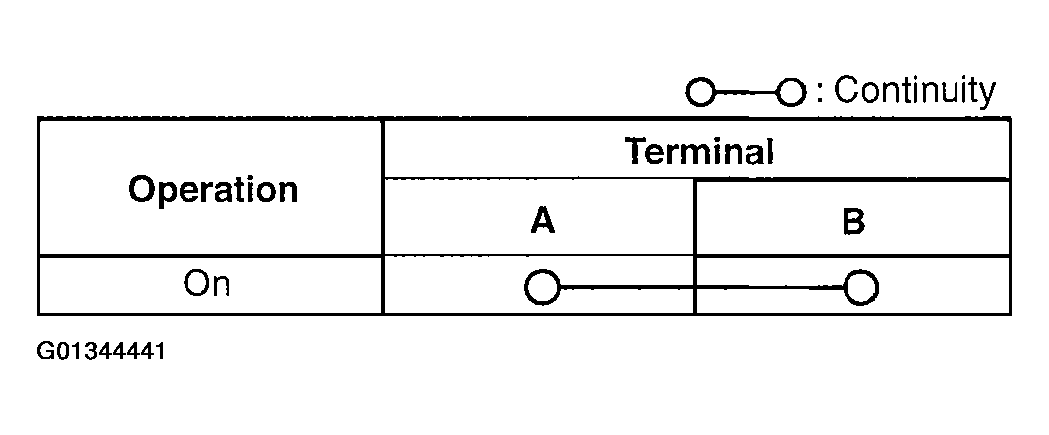

Fig 1: Trunk Lid Opener Switch Terminal Continuity
Courtesy of MAZDA MOTORS CORP.

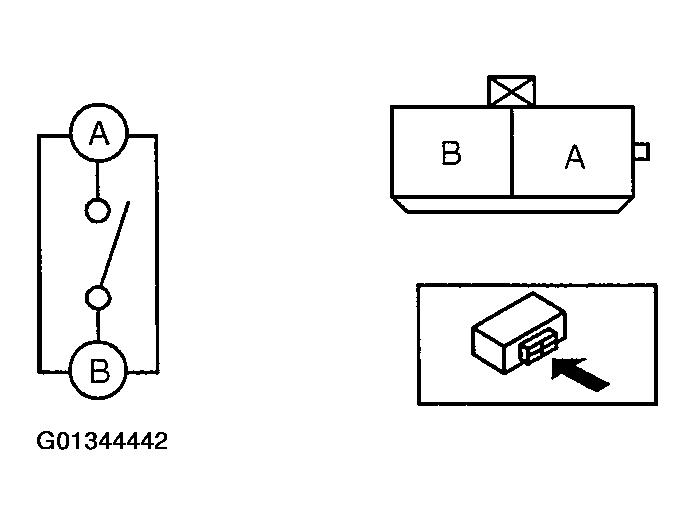

Fig 2: Inspecting Trunk Lid Opener Switch
Courtesy of MAZDA MOTORS CORP.
