Hood Lock And Opener Removal/Installation

Remove in the order indicated in the figures.

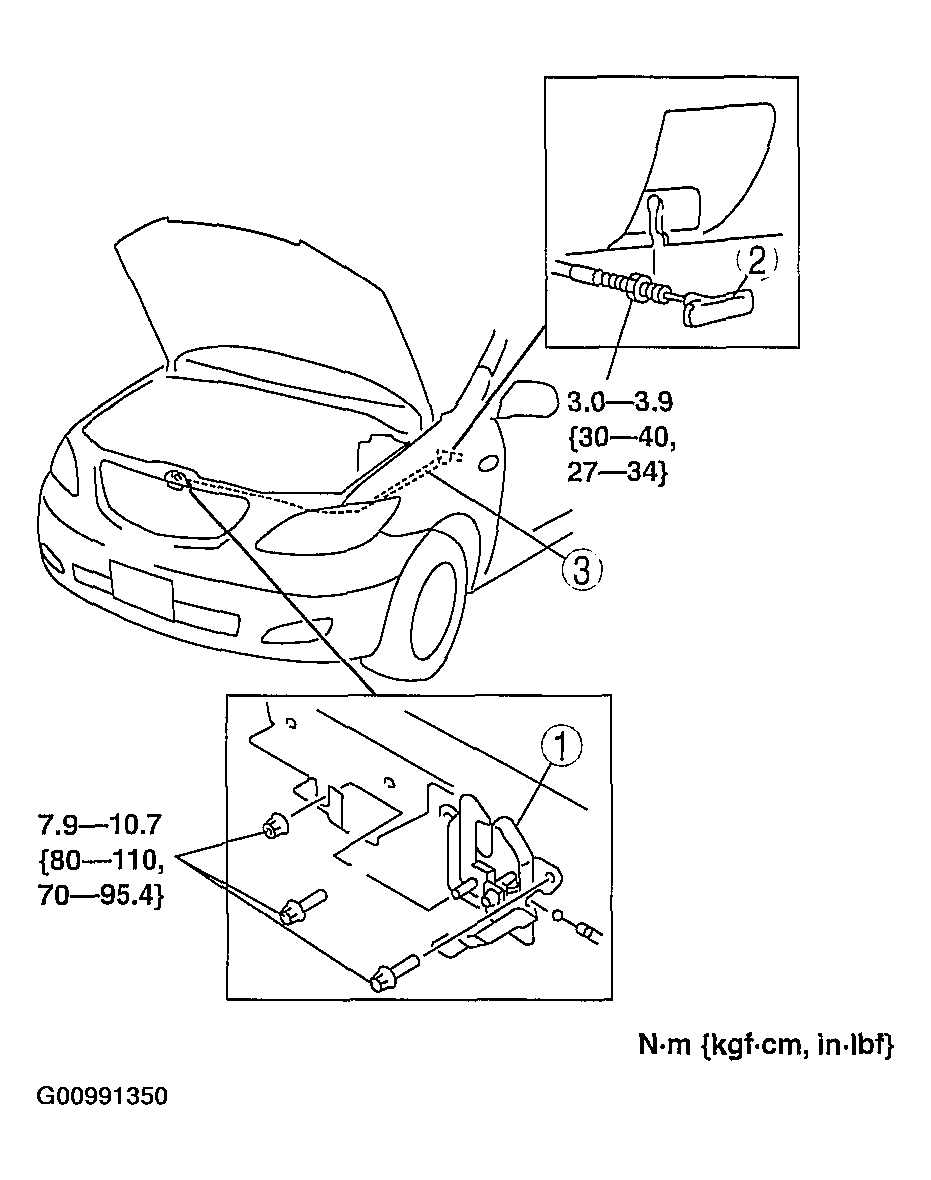

Fig 1: Removal Order Of Hood Lock & Opener
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Hood Lock & Opener
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
