Hood Switch Inspection

Disconnect the hood switch connector.
Inspect for continuity between the hood switch terminals using an ohmmeter.
- If not as specified, replace the hood switch.

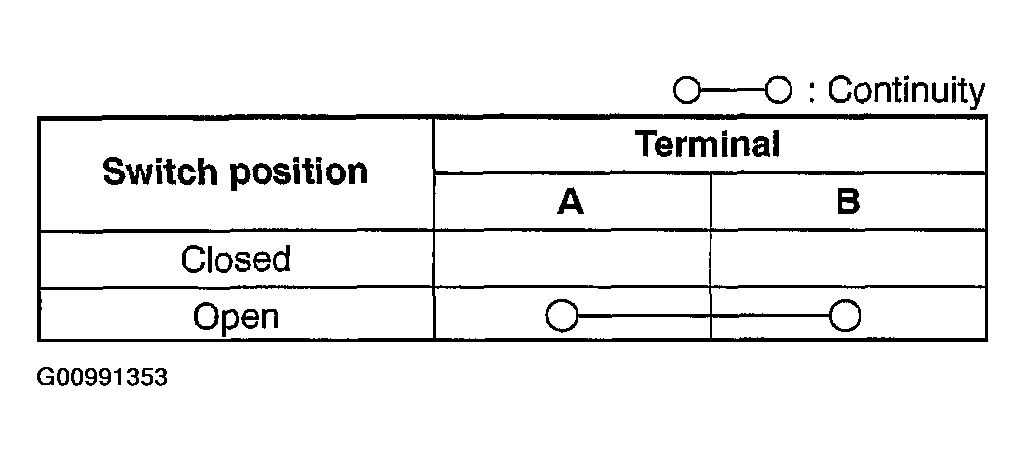

Fig 1: Hood Switch Continuity Specifications
Courtesy of MAZDA MOTORS CORP.

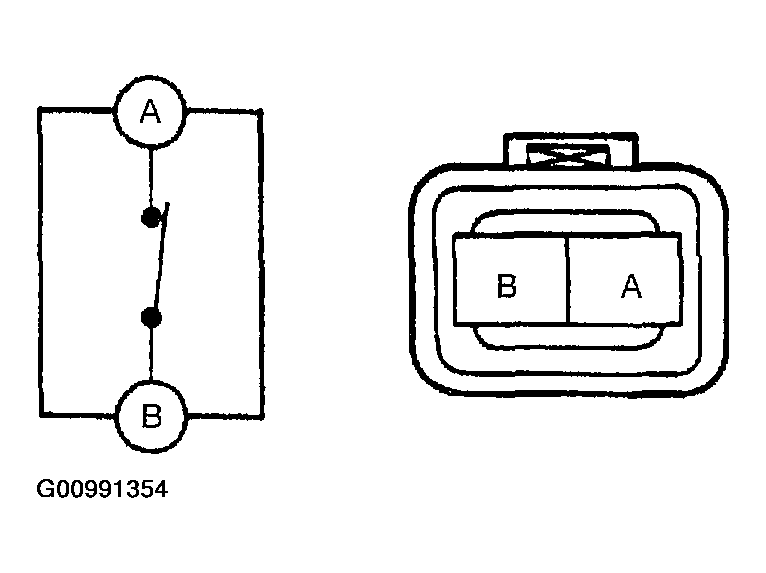

Fig 2: Identifying Hood Switch Terminals
Courtesy of MAZDA MOTORS CORP.
