When Customer Has Brought At Least One Valid Key (Code Word Is Required)

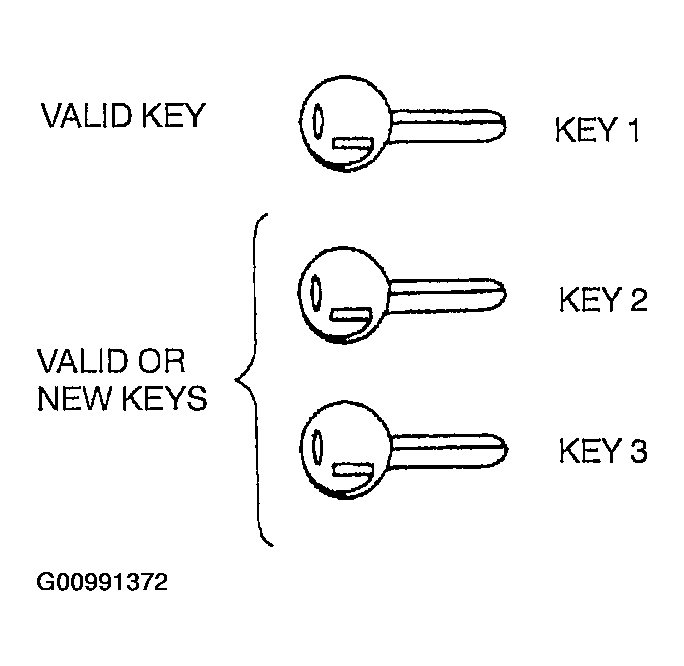

Fig 1: Identifying Valid Key & New Keys

Courtesy of MAZDA MOTORS CORP.

NOTE:

• If on specific time interval is given, each step should be performed within 30 seconds  of the previous step.

1. Cut new transponder equipped Key (s) if necessary.
2. Replace immobilizer unit. (See IMMOBILIZER UNIT REMOVAL/INSTALLATION .)
3. Using key 1, turn ignition engine. Observe that security light illuminates (for 1-2 seconds)  and engine continues to run.
   1. Turn key 1 to LOCK position and remove from steering lock.
4. Using key 2, turn ignition switch to ON position then back to LOCK position five times  . The key should not remain at ON position or LOCK position for more than 1 second  .
   1. Turn Key 2 back to ON position. Observe flashing of security light (300 Ms  ON - 300 ms  OFF) in instrument cluster.
   2. Turn key 2 to LOCK position and wait for 5 minutes  until security light decreases in flashing frequency to 1.2 seconds  .
   3. Input code word. (See CODE WORD INPUT PROCEDURE .)
   4. Observe the security light stops flashing and illuminates.
   5. Start engine with key 2. Observe that security light illuminates (for 1-2 seconds  ) and engine continues to run.
   6. Turn key 2 to LOCK position and remove from steering lock.
5. Using Key 1, start engine. Observe that security light illuminates (for 1-2 seconds  and engine continues to run.
   1. Turn key 1 to LOCK position and remove from steering lock.
6. Repeat  5 with key 3.
7. If there are 4-8 keys (valid and/or new keys), repeat Step  5.
8. Wait for 30 seconds  to quit reprogram mode.
