Key Replacement Or Addition

When customer has brought two or more valid keys  .

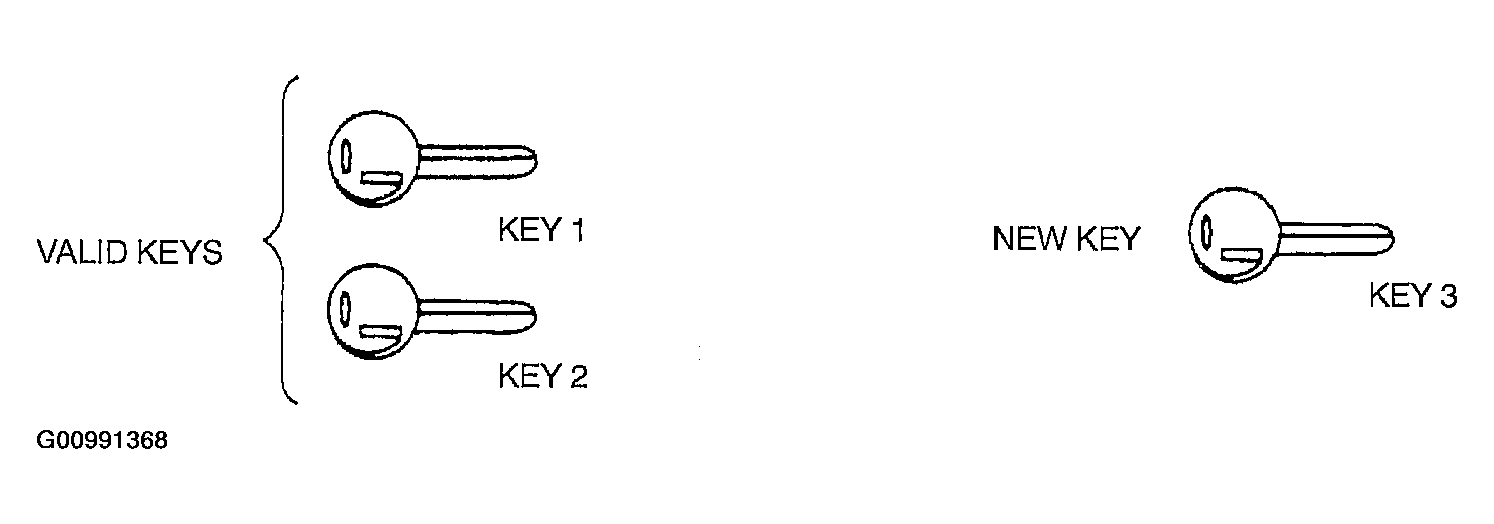

Fig 1: Identifying Valid Keys & New Key

Courtesy of MAZDA MOTORS CORP.

1. Cut new transponder equipped key(s).
2. Using key 1, turn ignition switch to ON position then back to LOCK position five times  . The key should not remain at ON position or LOCK position for more than 1 second  .
   1. Turn key 1 back to ON position. Observe illumination of security light in instrument cluster.
   2. Turn key 1 to LOCK position and remove key 1 from steering lock. Observe security light goes out.
3. Using key 2, start engine. Observe that security light illuminates (for 1-2 seconds  ) and engine continues to run.
   1. Turn key 2 LOCK position and remove from steering lock.
4. Repeat Step  3 with key 1.
5. Repeat Step  3 with key 3.
6. If there are 4-8 keys (valid and/or new keys), repeat step  3.
7. Wait for 30 seconds  to quit reprogram mode.

When customer has brought only one or no valid key (code word is required)  .

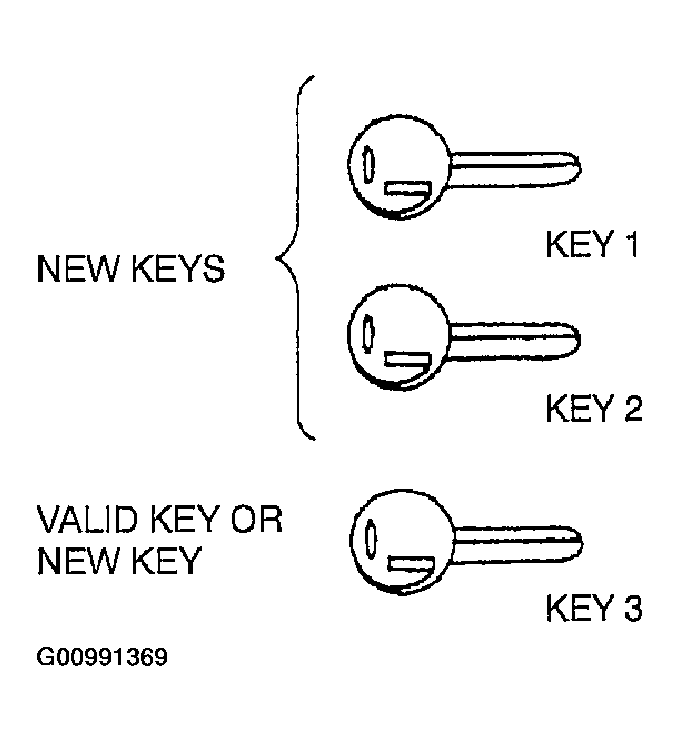

Fig 2: Identifying Valid Key & New Keys

Courtesy of MAZDA MOTORS CORP.

1. Cut new transponder equipped key(s).
2. Using key 1, turn ignition switch to ON position then back to LOCK position five times  . The key should not remain at ON position or LOCK position for more than 1 second  .
   1. Turn key 1 back to ON position. Observe flashing of security light (300 ms  ON - 300 ms  OFF) in instrument cluster.
   2. Turn key 1 to LOCK position and wait for 5 minutes  until security light decreases in flashing frequency to 1.2 seconds  .
   3. Input code word. (See CODE WORD INPUT PROCEDURE .)
   4. Observe security light stops flashing and illuminates.
   5. Start engine with key 1. Observe that security light illuminates (for 1-2 seconds  ) and engine continues to run.
   6. Turn key 1 to LOCK position and remove from steering lock.
3. Using key 2, start engine. Observe that security light illuminates (for 1-2 seconds  ) and engine continues to run.
   1. Turn key 2 to LOCK position and remove from steering lock.
4. Repeat Step  3 with key 3.
5. If there are 4-8 keys (valid and/or new keys), repeat Step  3.
6. Wait for 30 seconds  to quit program mode.
